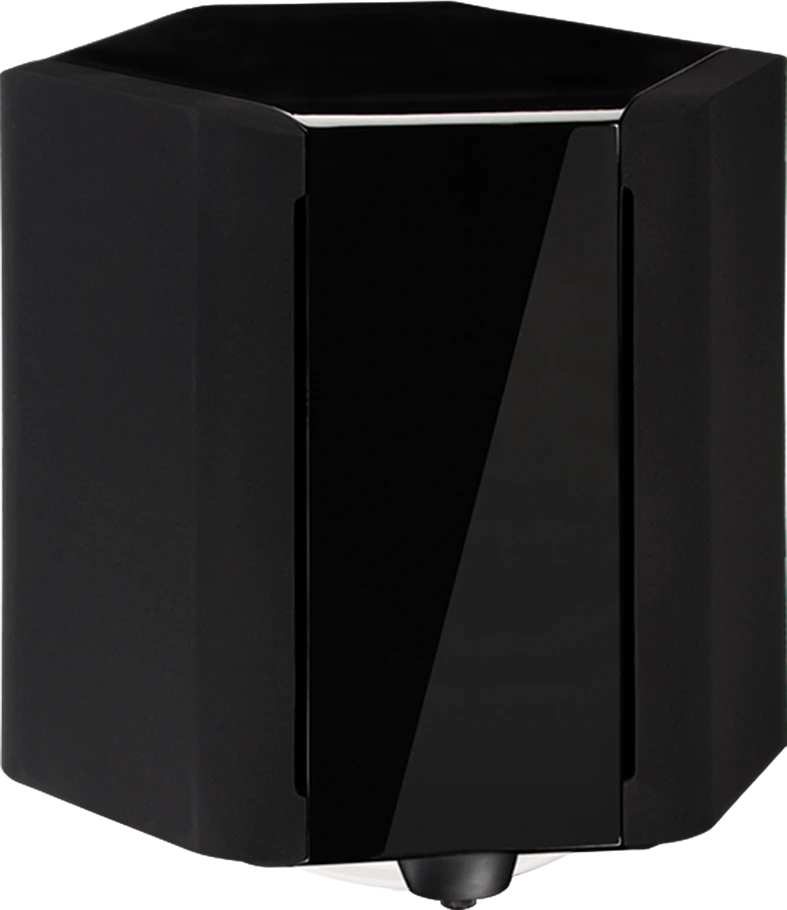

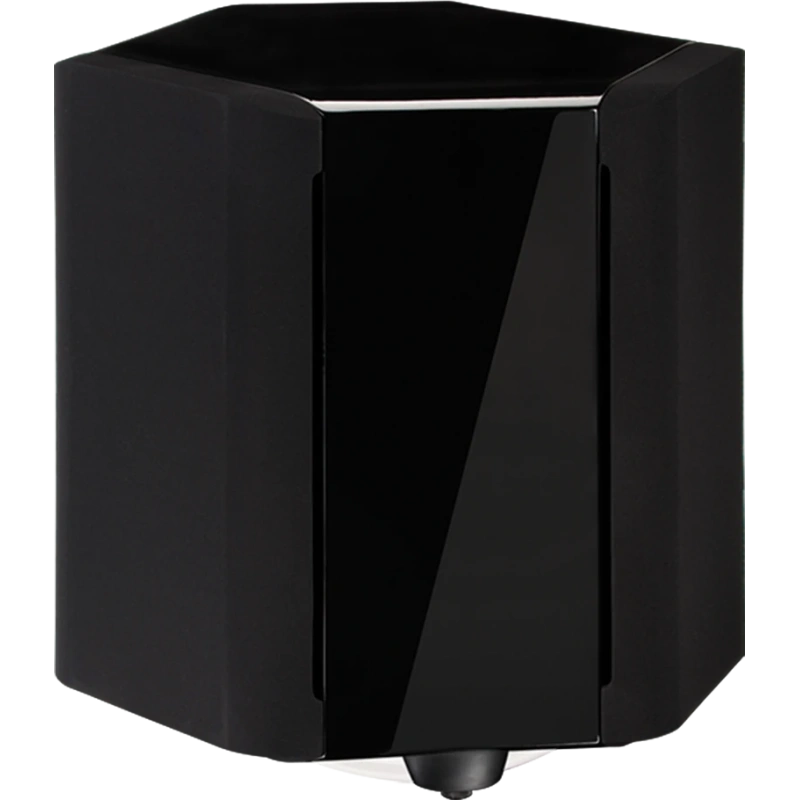

Paradigm Signature SUB 2
CA$12,999.99 each
Request a quote
Or call (613) 830-6787
The add to cart button will appear once you select the values above
The Paradigm Signature SUB 2 is a subwoofer from Paradigm's Signature line.
Paradigm describes its design as: Hexagonal cabinet with multiple high-excursion drivers radially aligned in a Vibration-Canceling Design Architecture, patented built-in Ultra-Class-D™ power amplifier with Power Factor Correction, sealed enclosure, PBK interface. NOTE: Due to the incredibly high power and tremendous output the SUB 2’s grilles are non-removable.
Paradigm specifies an on-axis frequency response of ±3 dB 9Hz – 260Hz and low-frequency extension to 7 Hz (DIN).
Available finishes: Piano Black, Black Ash, Cherry (Discontinued).
Call (613) 830-6787 or request a quote.
| Specifications | |
|---|---|
| Sold as | each |
| Design | Hexagonal cabinet with multiple high-excursion drivers radially aligned in a Vibration-Canceling Design Architecture, patented built-in Ultra-Class-D™ power amplifier with Power Factor Correction, sealed enclosure, PBK interface. NOTE: Due to the incredibly high power and tremendous output the SUB 2’s grilles are non-removable. |
| Amplifier features | Auto-On / Off, Trigger On / Off, soft clipping, electrical shorting protection, thermal protection SUB 2’s Universal Input Power feature allows the subwoofer to operate connected to any line voltage between 108 volts and 265 volts. In order to achieve maximum output, connect to a 240-volt line. (See Dealer for additional information.) |
| Room correction | Anthem Room Correction (ARC®) (included PBK kits works with ARC Genesis software) |
| Frequency response (on-axis) | ±3 dB 9Hz – 260Hz |
| Low frequency driver | Six 254-mm (10 in) RCR™ mineral-filled co-polymer polypropylene cones, FEA-optimized overmolded thermoplastic foam-surrounds, 76-mm (3 in) ten-layer long-excursion voice coils, high-temperature composite Nomex® formers, dual advanced spiders, 25.2-lb (10.5 kg) hard ferrite magnet / motor structure, massive center heatsink and oversize pole piece, AVS™ die-cast heatsink chassis |
| Sensitivity room / anechoic | 100 mV mono / |
| Low frequency extension | 7 Hz (DIN) |
| Impedance | RCA: 10k ohms; XLR: 20k ohms |
| Low pass filter frequency | Variable 35 Hz - 150 Hz; Bypass Option |
| Sub / sat phase alignment | Variable 0° - 180° |
| Inputs | RCA (S/E) Left and Right or Sub-Out / LFE or Balanced XLR. From Sub-Out / LFE-Out of preamp, processor or other line-level source |
| Spike/insert thread (thread size/threads per inch) | 0.3125"-18 |
| Dimensions (H × W × D) (includes grilles and feet) | 24.5" × 23.75" × 22.375" (62.2cm × 60.3cm × 56.8cm) |
| Weight | 230 lbs. (106 kg) |
| Finishes | Piano Black, Black Ash, Cherry (Discontinued) |
