Paradigm XR 13
CA$5,999.99 each
Request a quote
Or call (613) 830-6787
The add to cart button will appear once you select the values above

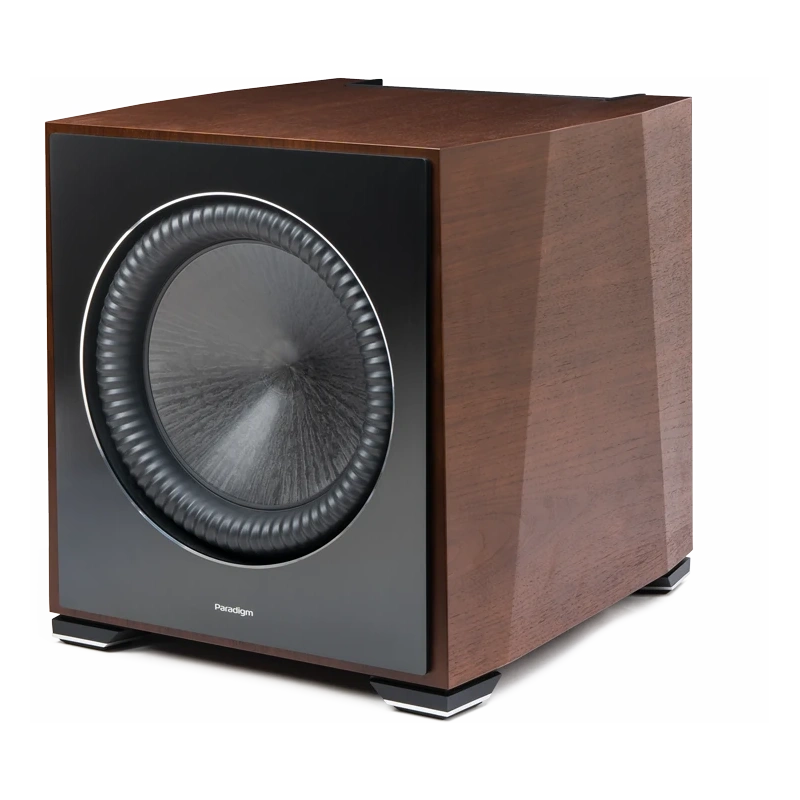

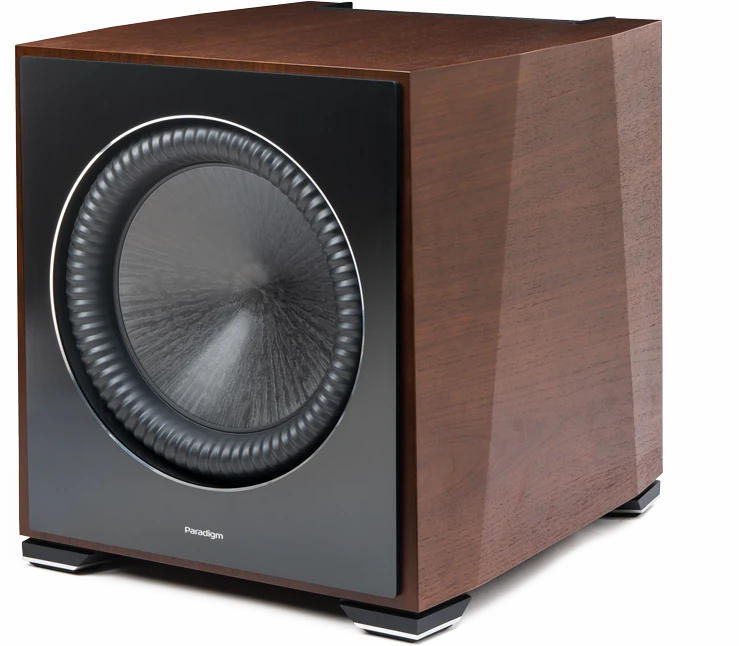

The Paradigm XR 13 is a subwoofer from Paradigm's XR line.
Paradigm describes its design as: 13” (330 mm) Ultra-high Excursion Driver with Trilinear Suspension System and Active Ridge Technology (ART™), sealed enclosure with Cascade-Fusion™ Bracing and ADVANCED Shock-Mount™, built-in Class-D amplifier, App-controlled via smartphone and Anthem Room Correction (ARC®) Included.
Paradigm specifies an on-axis frequency response of ±3dB from 17 Hz to 140 Hz and low-frequency extension to 12 Hz (DIN).
Available finishes: Gloss: Piano Black & Midnight Cherry Satin: Walnut & Black Walnut.
Call (613) 830-6787 or request a quote.
| Specifications | |
|---|---|
| Sold as | each |
| Design | 13” (330 mm) Ultra-high Excursion Driver with Trilinear Suspension System and Active Ridge Technology (ART™), sealed enclosure with Cascade-Fusion™ Bracing and ADVANCED Shock-Mount™, built-in Class-D amplifier, App-controlled via smartphone and Anthem Room Correction (ARC®) Included |
| Amplifier features | Auto-On / Off, Trigger On / Off |
| Room correction | ARC Genesis (microphone included) |
| Frequency response (on-axis) | ±3dB from 17 Hz to 140 Hz |
| Low frequency driver | 13” (330 mm) Ultra-High-Excursion CARBON-X Unibody Bass Driver, with Trilinear Suspension System and Active Ridge Technology (ART™), 2” high-temperature voice coil |
| Effective piston area (sd) | 93.7 sq in / 0.06 sq m |
| Effective displacement | 366.1 cu in/6 L |
| Low frequency response | 12 Hz (DIN) |
| Unbalanced inputs | Stereo or Mono (dual RCA jacks)/LFE RCA jack |
| Balanced inputs | One Balanced XLR (LFE) |
| Speaker/high-level inputs | Left and right speaker level inputs |
| Input grounding | Grounded |
| Polarity | 0 or 180 degrees |
| Phase | Variable 0°-180° |
| Dimensions (H × W × D) | 18.8” x 17.3 ” x 19.4” (47.8cm x 43.8cm x 49.3cm) |
| Weight | 103.8 lb / 47.1 kg |
| Finishes | Gloss: Piano Black & Midnight Cherry Satin: Walnut & Black Walnut |
