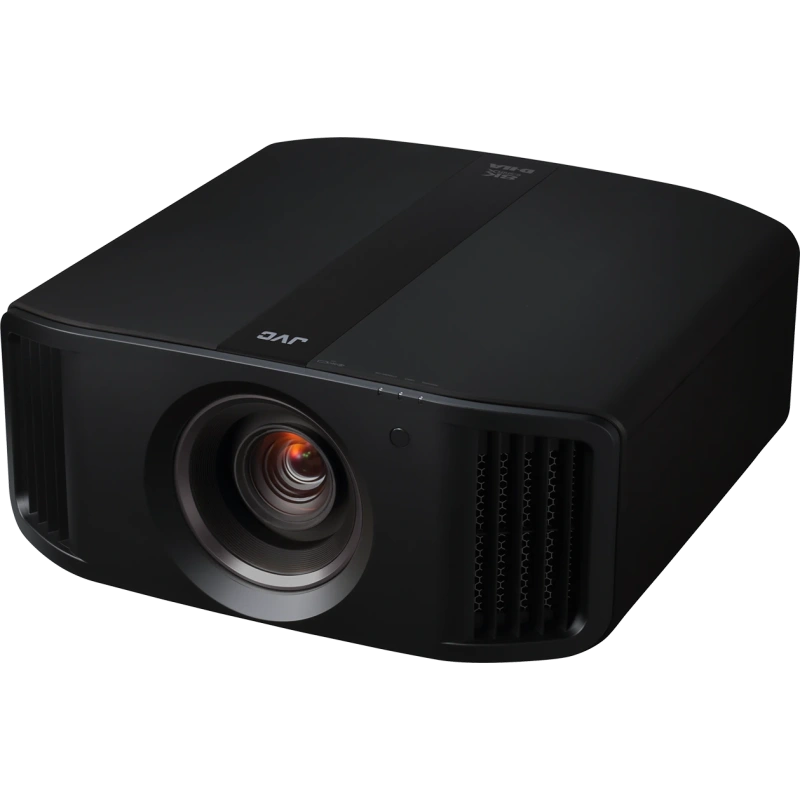

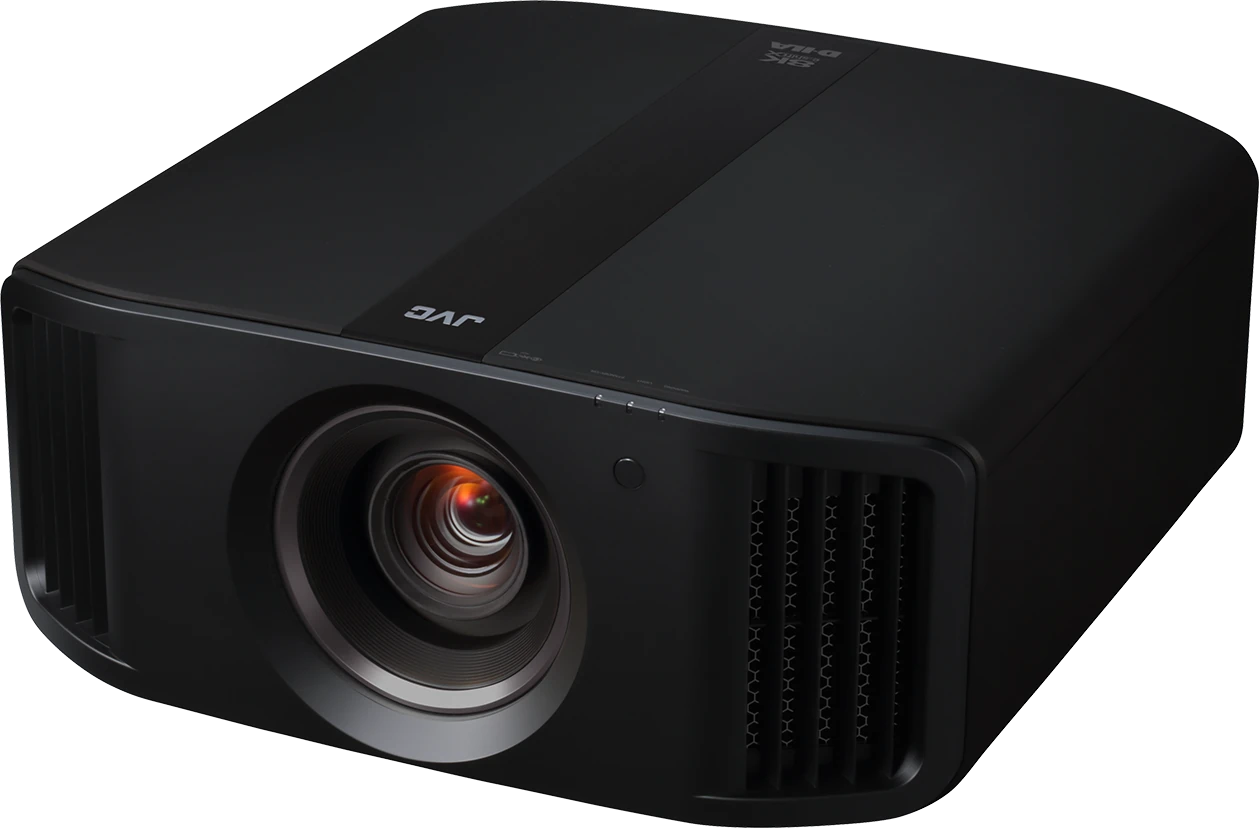

JVC DLA-NZ800
CA$24,498.00 each
Request a quote
Or call (613) 830-6787
The add to cart button will appear once you select the values above
The JVC DLA-NZ800 pairs three native 4K D-ILA devices with Gen2 8K e-shiftX for 8192 x 4320 display resolution.
JVC rates its BLU-Escent laser at 2,700 lumens with 100,000:1 native contrast.
It supports HDR10, HDR10+, HLG and Frame Adapt HDR, 3D, and 8K60 and 4K120 input over 48 Gbps HDMI.
Call (613) 830-6787 or request a quote.
| Specifications | |
|---|---|
| D-ILA Technology | Yes |
| Chip Type | 3rd Generation 0.69-inch 4K D-ILA device |
| Native Resolution | 4096 x 2160 |
| Number Of Chips | 3 |
| 8K/e-shiftX | Yes |
| Display Resolution | 8192 x 4320 |
| Laser | Yes |
| Type | BLU-Escent Laser Diode |
| Laser life (standard mode) | 20000 hours |
| Brightness | 2700 lm |
| Dynamic Contrast | ∞ : 1 |
| Native Contrast | 100000 : 1 |
| DCI-P3 Color Gamut | Yes |
| 100% REC 709 | Yes |
| Color Bit Depth | 12 bit |
| ISFccc Certification | Yes |
| HDR10 | Yes |
| HDR10+ | Yes |
| Frame Adapt HDR | Yes |
| Theater Optimizer | Yes |
| HLG | Yes |
| Auto Tone Mapping | Yes |
| Mastering Info Display | Yes |
| Info data | MaxCLL, MaxFALL and DML |
| Deep Black Tone Control | Yes |
| Zoom | 2 x |
| Throw Ratio | 1.35-2.75:1 |
| Diameter | 100 mm |
| Range Horizontal | ± 43 % |
| Range Vertical | ± 100 % |
| Motorized Zoom | Yes |
| Motorized Shift | Yes |
| Motorized Focus | Yes |
| Projection Display size (diagonal) | 60 - 300 inch |
| Memory Function | Yes |
| Number of user presets | 10 |
| Number of Inputs | 2 |
| Data Rate | 48 Gbps |
| HDCP Version | 2.3 |
| 8K60P signal input | Yes |
| 4K120p signal input | Yes |
| 4K60P signal input | Yes |
| Trigger out | Mini-Jack (3,5mm) |
| Power | DC 12V / 100mA |
| 3D Synchro | Mini DIN 3-pin |
| LAN | RJ45 |
| RS-232 | D-sub 9-pin |
| Service | USB (Type A) for firmware update or backup |
| 3D Capability | Yes |
| 3D Emitter (Optional) | Yes, PK-EM2 |
| 3D Glasses (Optional) | Yes, PK-AG3 |
| Filmmaker Mode | Yes |
| Low Latency Mode | Yes |
| Auto Calibration | Yes |
| Anamorphic Modes | 4 Modes (A, B, C, D) |
| Control4 SDDP | Yes |
| Power Requirement | AC100-240V, 50/60Hz |
| Projector in Use | 440W |
| Fan Noise | 24 dB |
| Product Dimensions (WxHxD) | 500 x 234 x 528 (mm) |
| Product Weight | 25.3 Kg |
| Canadian warranty | Parts 3 years / labour 3 years (per jvc.com/ca) |
