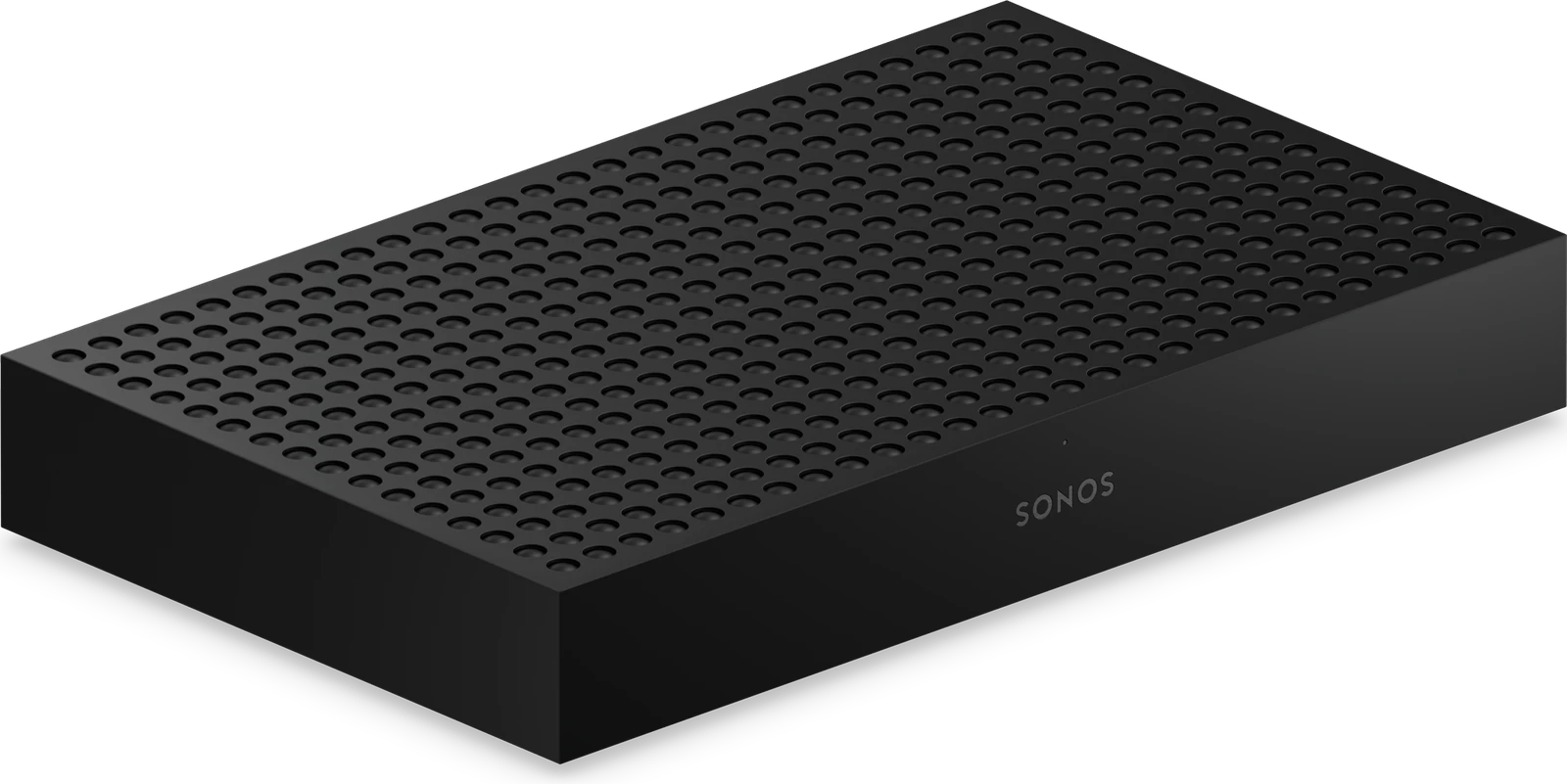

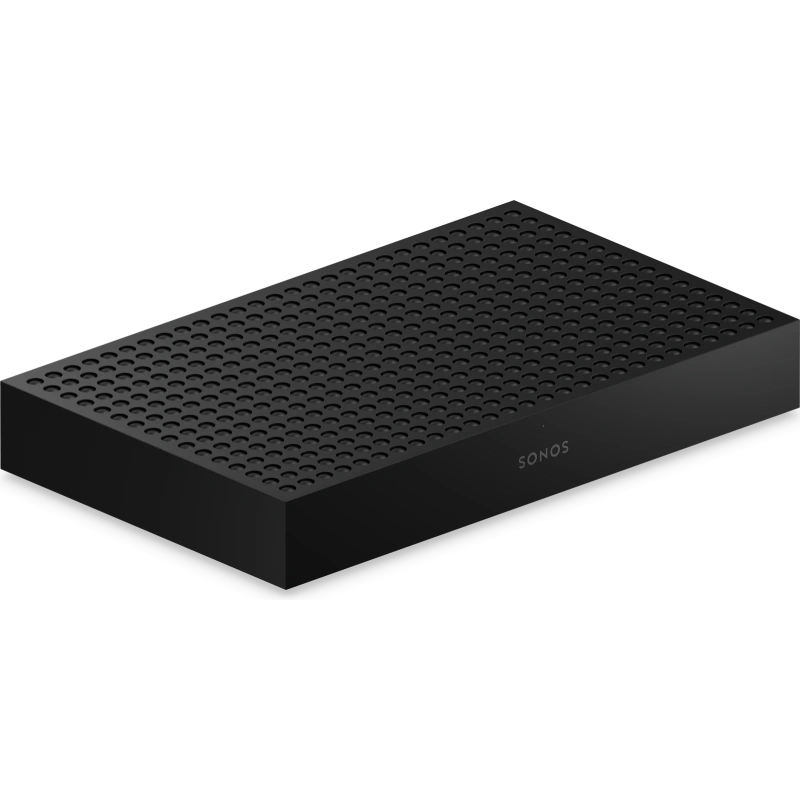

Sonos Amp Multi
CA$4,799.00 each
Request a quote
Or call (613) 830-6787
The add to cart button will appear once you select the values above
Amp Multi is an 8-channel amplifier for professional installation, delivering 8 x 125 W across up to four zones per Sonos.
It uses GaN amplification with post-filter feedback, and installers can tune each zone with ProTune.
It is rack-mountable with the optional 2U Rack Mount and integrates with the Sonos app.
Call (613) 830-6787 or request a quote.
| Specifications | |
|---|---|
| Speaker Outputs | 8 amplified outputs each independently configurable for stereo or mono |
| Power | 125 W per channel @ 8Ω (all channels driven) |
| Minimum Impedance | 2.67Ω with Sonos Architectural speakers |
| Damping Factor | >400 (ref. 8 ohms, 20 Hz to 1 kHz) |
| Amplifier Technology | Class D with GaN and PFFB |
| Total Harmonic Distortion | 0.005% at 2.83Vrms-15Vrms |
| Frequency Response | ±0.5 dB, 15 Hz - 20 kHz |
| Channel Separation (Crosstalk) | -100dB at 1 kHz 2.83Vrms; -80dB at 10 kHz 2.83Vrms |
| Signal-to-Noise Ratio | 114dB ref 125W into 8-Ohm |
| ProTune | 10-band parametric EQ with ±15dB gain, Q, and frequency control.; Option for high-shelf, low-shelf, and bell filter types.; Gain trim: -15 - +5 dB; Delay: 0 - 50ms; Highpass: 15-100Hz |
| Dimensions (Single Unit) | Height: 2.52 in (64.5 mm); Width: 17.2 in (436.8 mm); Depth: 10.44 in (265.2 mm) |
| Dimensions (with 2U Rack Mount) | Height: 3.47 in (82.3 mm); Width: 19.01 in (483 mm); Depth: 10.44 in (265.2 mm) |
| Weight | 11.16 lbs (5.06 kg) |
| Colours | Black |
| Finish | Matte |
| LEDs | Front: Device status; Rear: Device status, output status (x8), RJ45 status light |
| Power Consumption | 5.4 W (idle); 180 W (all channels driven at 1/8 output power, 8 Ohms) |
| Wired Networking Interface | 100BaseTX, Ethernet RJ45 |
| Wireless Networking Interface | Compatible with WiFi 6. Connect to Wi-Fi with any 802.11a/b/g/n/ac/ax 2.4 GHz/5 GHz broadcast-capable router. |
| Analogue Audio Input | 2 x RCA inputs -10dB (stereo into one zone) |
| USB-C Analogue Audio Input | 44.1 kHz / 16 bit (stereo into any zone); Requires Sonos Line-In Adapter |
| Subwoofer Connections | 1 x RCA output -10dB (configurable to output from one zone), and 1x Sonos Sub per zone |
| Direct Streaming Formats | Apple AirPlay 2, Spotify Direct Control, and more. |
| CPU | Quad Core; 4xA55 1.9GHz |
