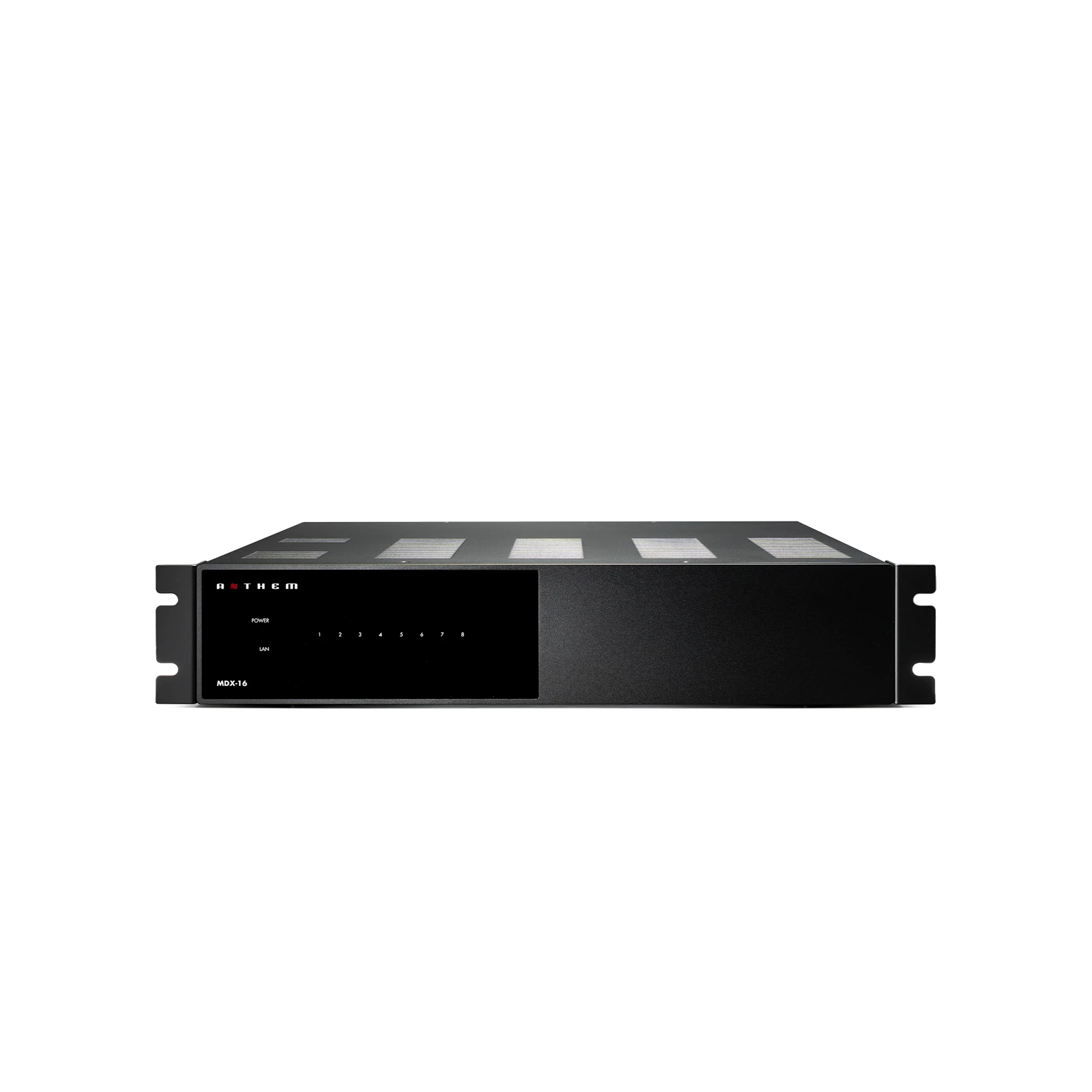

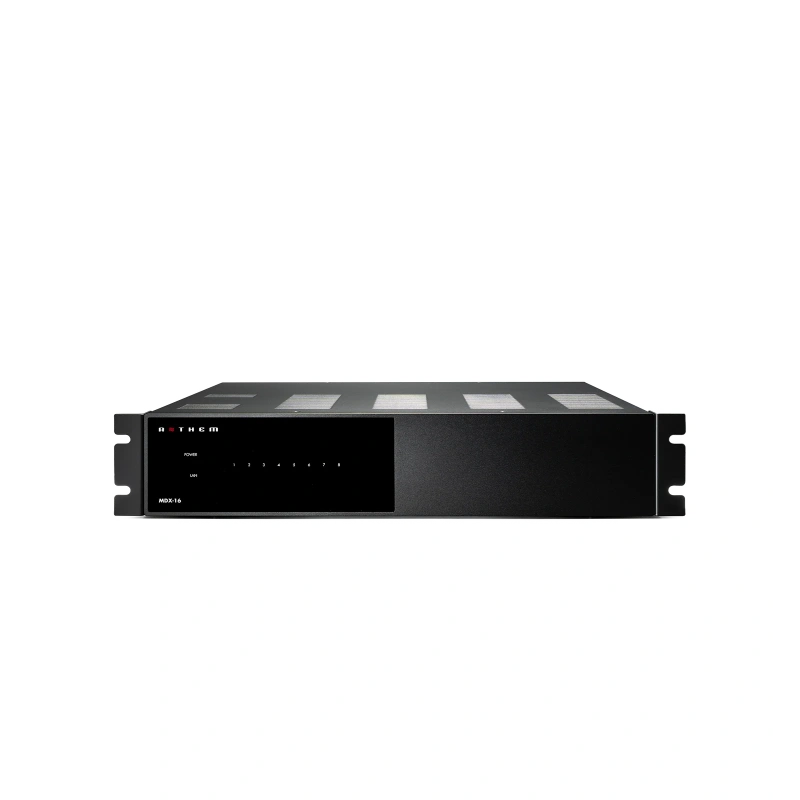

Anthem MDX-16
CA$3,999.99 each
Request a quote
Or call (613) 830-6787
The add to cart button will appear once you select the values above
The Anthem MDX-16 is a multi-zone amplifier for whole-home audio, providing eight zones with matrix routing of sources.
It delivers 60 watts per channel into 8 ohms. Analog RCA, coaxial and optical inputs connect your sources, and outputs include subwoofer, speaker-level, RCA passthrough and optical.
ARC Genesis room correction can be applied per zone to suit each room.
A 12 V trigger supports integration with other components, making it well suited to larger multi-room installations.
Call (613) 830-6787 or request a quote.
| Specifications | |
|---|---|
| Type | Matrixed multi-zone amplifier |
| Channels / zones | 16 channels / up to 8 zones |
| Power output | 60 W @ 8 ohms, 120 W @ 4 ohms per channel (RMS); 200 W @ 8 ohms bridged |
| THD+N | 0.4% (1 kHz, 50 W into 8 ohms / 100 W into 4 ohms) |
| Inputs | 8 stereo RCA analog; 2 coaxial + 2 optical digital; micro-USB (ARC); 12 V trigger |
| Outputs | 8 Euroblock speaker outputs (up to 12 AWG); 8 RCA subwoofer outputs; 2 stereo RCA analog; 1 optical (matrix); 12 V trigger |
| DAC | PCM up to 24-bit/192 kHz |
| Room correction | Anthem Room Correction (ARC Genesis) for each zone; microphone included |
| Network / control | Ethernet; RS-232; IP drivers for Control4, Crestron, Elan, RTI, Savant, URC; web UI |
| Rack mounting | 2U (feet removed); rack ears included |
| Dimensions & weight | |
| Dimensions | 17.0" W x 3.9" H x 17.0" D (with feet, no rack ears); 19.0" W x 3.5" H x 17.0" D with rack ears, without feet 432 mm W x 99 mm H x 432 mm D (with feet); 483 x 89 x 432 mm with rack ears |
| Weight | 24 lb (10.8 kg) |
