Anthem MDX-12
CA$1,899.99 each
Request a quote
Or call (613) 830-6787
The add to cart button will appear once you select the values above

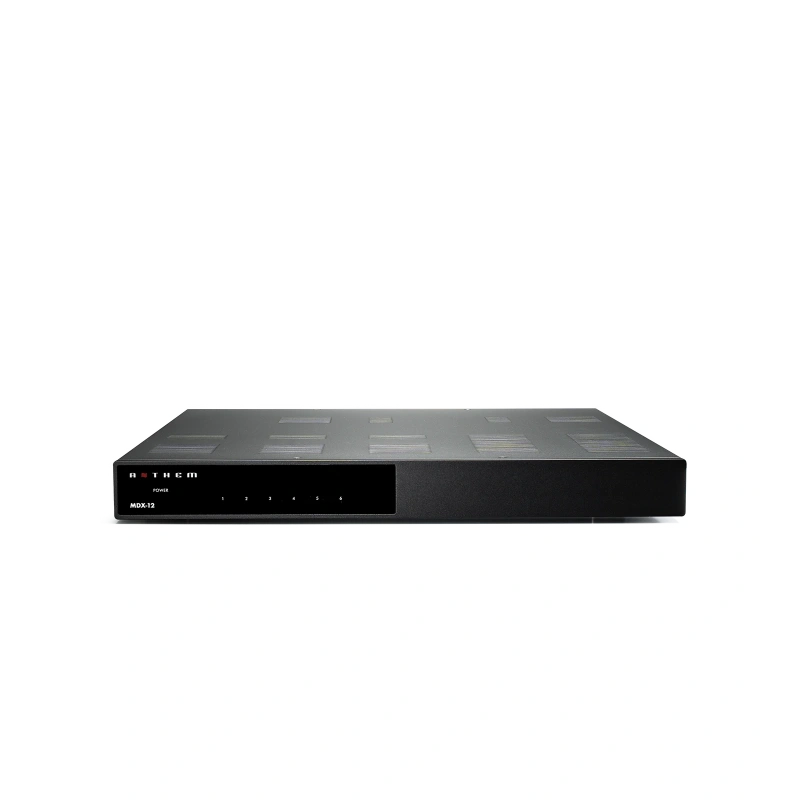

The Anthem MDX-12 is a 12-channel distribution amplifier in a 1U chassis, designed for straightforward multi-room installations.
It delivers 75 watts per channel into 8 ohms.
Stereo RCA analog inputs connect your sources, and 12 V trigger input and output allow the amplifier to power on and off with the rest of your system.
Its slim 1U form factor makes it easy to fit into an equipment rack alongside other components.
Call (613) 830-6787 or request a quote.
| Specifications | |
|---|---|
| Type | 12-channel distribution amplifier (no matrix), fan-cooled |
| Channels / zones | 12 channels / up to 6 zones |
| Power output | 75 W @ 8 ohms, 150 W @ 4 ohms per channel (RMS); 280 W @ 8 ohms bridged |
| Frequency response | 20 Hz–20 kHz (±0.4 dB) at 8 ohms |
| Inputs | 6 stereo RCA (one per zone) + 2 global/bus stereo RCA; 12 V trigger (3.5 mm) |
| Outputs | 6 Phoenix-style stereo speaker outputs (up to 12 AWG); 2 stereo RCA bus outputs; trigger loop |
| Room correction | None |
| Network / control | None (no IP or RS-232 control) |
| Rack mounting | 1U (feet removed); rack ears included |
| Dimensions & weight | |
| Dimensions | 17.0" W x 1.75" H x 16.6" D (with feet, per spec sheet) 431.8 mm W x 44.5 mm H x 421.6 mm D |
| Weight | 16 lb (7.26 kg) |
