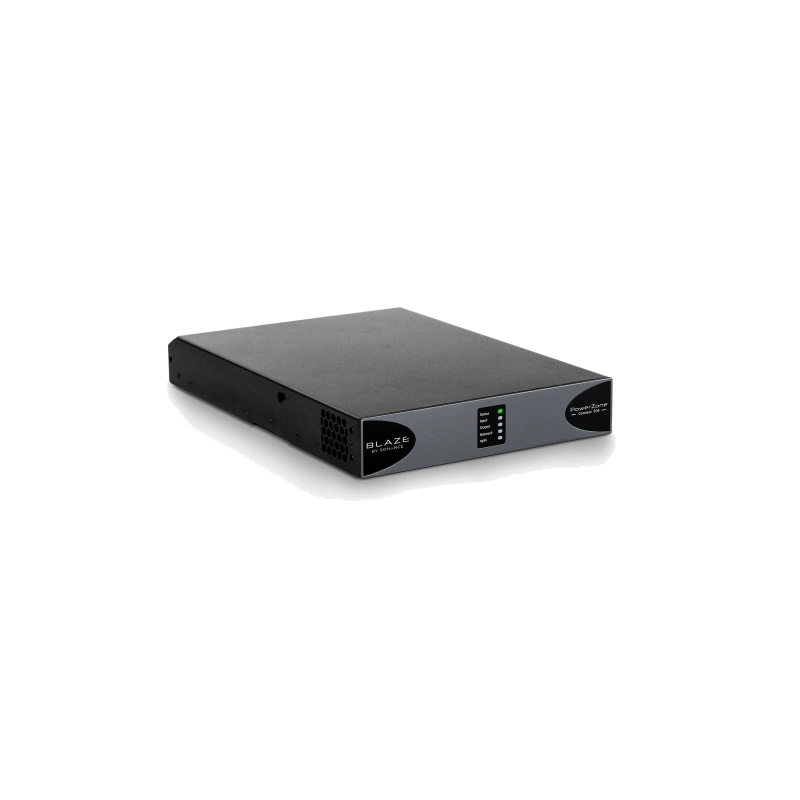

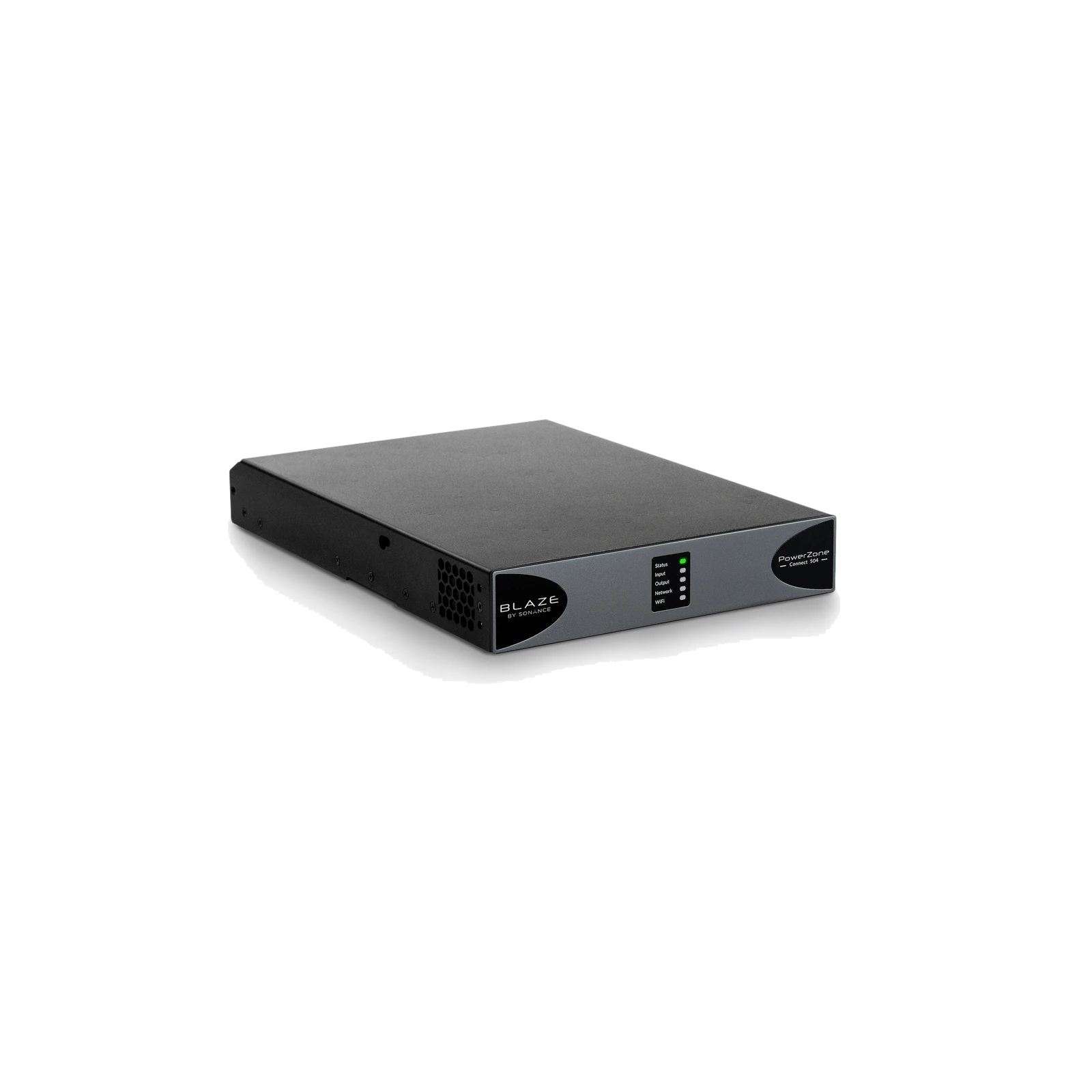

Sonance PowerZone Connect 504
CA$1,965.00 each
Request a quote
Or call (613) 830-6787
The add to cart button will appear once you select the values above
The Sonance PowerZone Connect 504 is part of Sonance's amplifier range, listed under amplifiers in our catalogue.
Key published figures — channel configuration: Lo-Z: 4x 125W @4/8Ω Hi-Z: 2x 250W @70/100V Powersharing; total system power: 500 W.
Sonance does not publish retail pricing; contact Aura Design for pricing, system design and installation options.
Call (613) 830-6787 or request a quote.
| Specifications | |
|---|---|
| Sonance SKU | UBX-888-011 (PowerZone Connect 504), UBX-888-007 (PowerZone Connect 504 UNI) |
| Dimensions (WxHxD) | 8.7" x 1.7" x 12.6" (220.98mm x 43.18mm x 320.04mm) |
| Weight | 6.17 lbs. (2.8kg) |
| Channel Configuration | Lo-Z: 4x 125W @4/8Ω Hi-Z: 2x 250W @70/100V Powersharing |
| Total System Power | 500 W |
| Output Power @ 4 ohms | 4 x 125 W |
| Output Power @ 8 ohms | 4 x 125 W |
| Output Power @ 70V | 2 x 250 W |
| Output Power @ 100V | 2 x 250 W |
| Powersharing | Power Consumption |
| 150 W | Built-in DSP |
| Yes | Dante Compatibility |
| No | Rack Units |
