Paradigm DCS-208FR3
CA$799.99 each
Request a quote
Or call (613) 830-6787
The add to cart button will appear once you select the values above

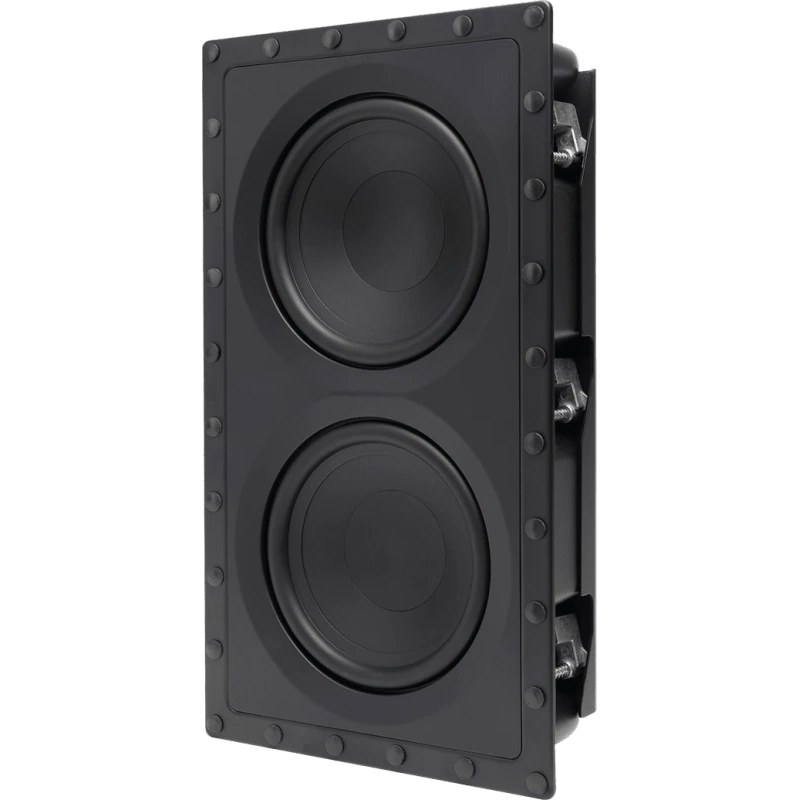

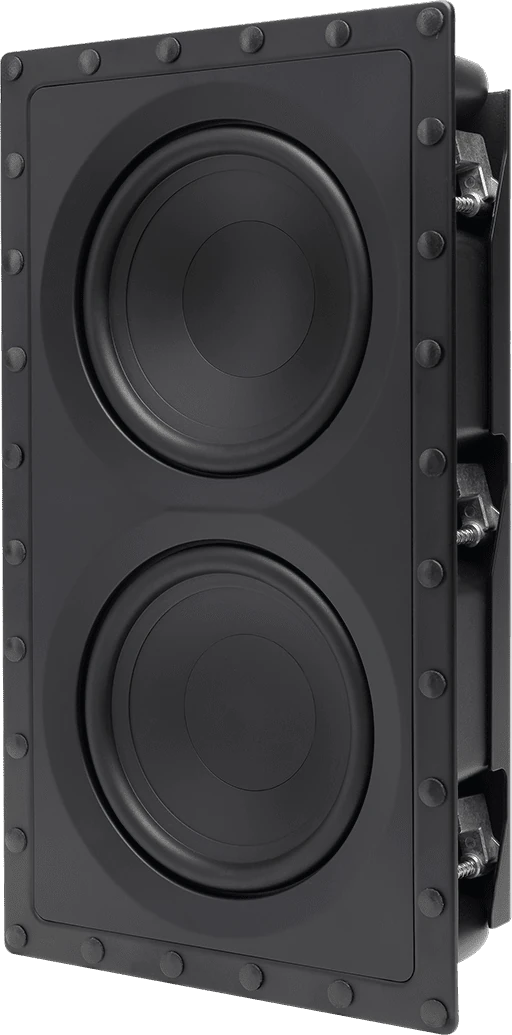

The Paradigm DCS-208FR3 is an in-wall subwoofer.
Paradigm describes its design as: Dual 8" high-excursion drivers, in-wall, GRIP™ chassis/mounting bracket with custom steel enclosure, amplifier required (sold sep.).
Paradigm specifies an on-axis frequency response of +/-3dB from 77->190 Hz and low-frequency extension to 35 Hz (DIN)*.
Available finishes: White, paintable.
Call (613) 830-6787 or request a quote.
| Specifications | |
|---|---|
| Sold as | each |
| Design | Dual 8" high-excursion drivers, in-wall, GRIP™ chassis/mounting bracket with custom steel enclosure, amplifier required (sold sep.) |
| Low frequency driver | Two 210-mm (8 in) CFP™ carbon-fiber-reinforced polypropylene cones, 38-mm (1-1/2 in) voice coils, over-molded TPR™ surrounds, 38-mm (1-1/2 in) 8-layer copper wire voice coils, high-temperature polyamide formers, ceramic/ferrite magnet structures |
| Frequency response | +/-3dB from 77->190 Hz |
| Low frequency extension | 35 Hz (DIN)* |
| Suitable amplifier power range | 50-600 W |
| Maximum input power | 300W |
| Overall dimensions | 19-1/8” x 10-3/4” x 4.5” (48.5cm x 27.2cm x 11.5cm) |
| Cut-out dimensions | 18”x 9-5/8” (45.7cm x 24.5cm) |
| Minimum mounting depth | 3-7/8” (9.8cm) |
| Recommended amplifiers | MDX-8, MDX-16, X-300 |
| Internal volume | 7.5L |
| Weight | 26.7lbs (12.5kg) |
| Finishes | White, paintable |
