Anthem MCA 525 Gen 2
CA$4,199.99 each
Request a quote
Or call (613) 830-6787
The add to cart button will appear once you select the values above

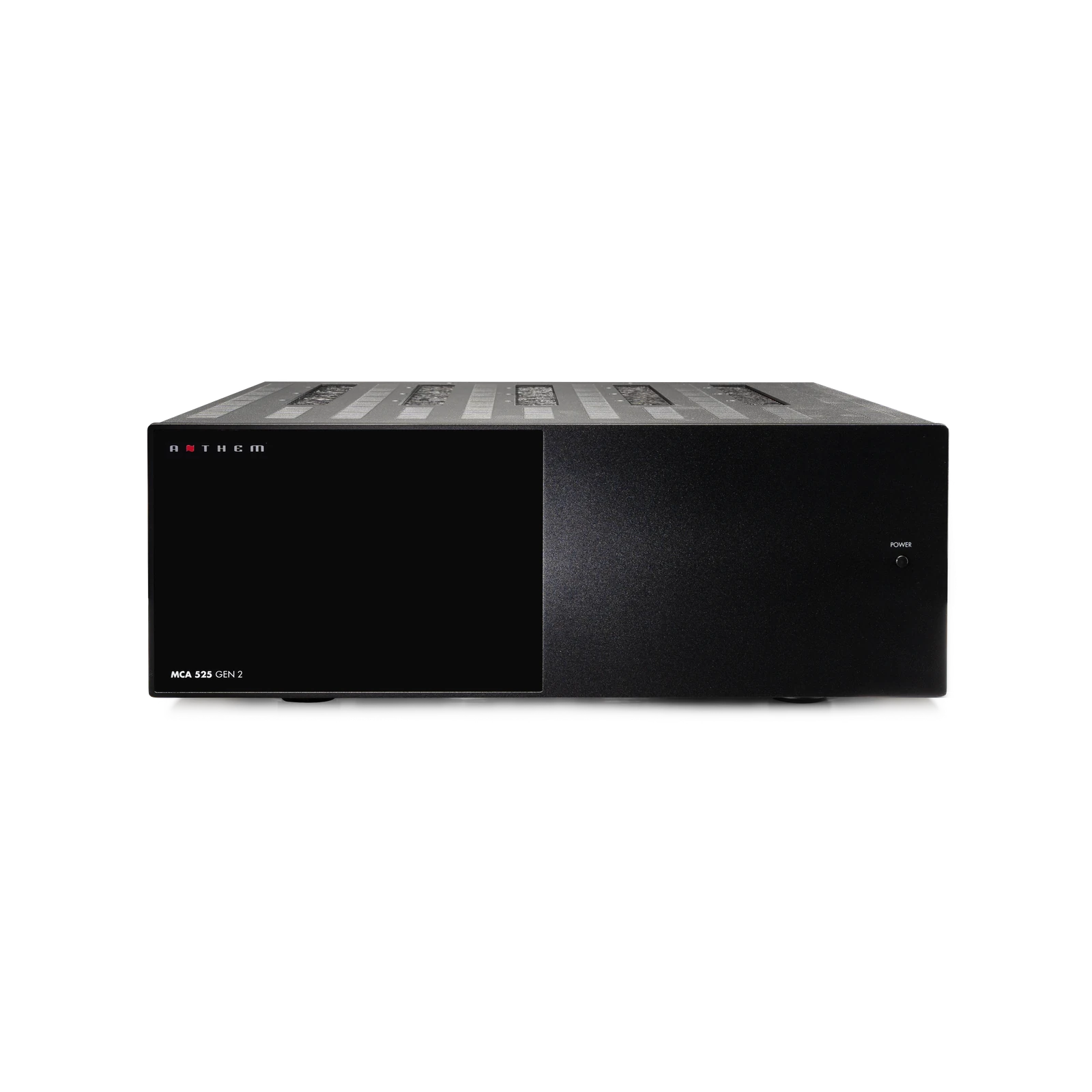

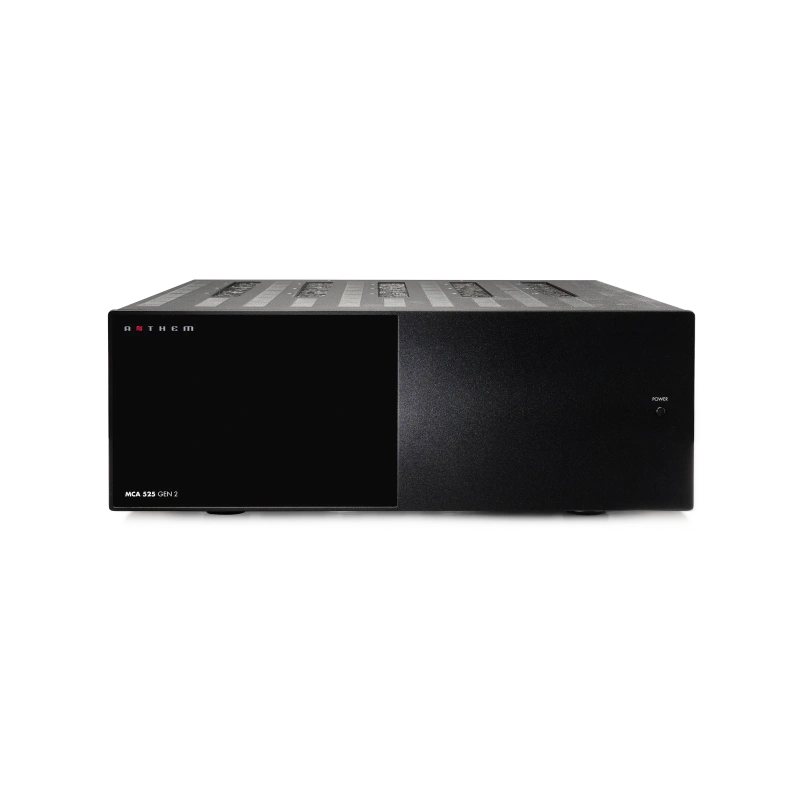

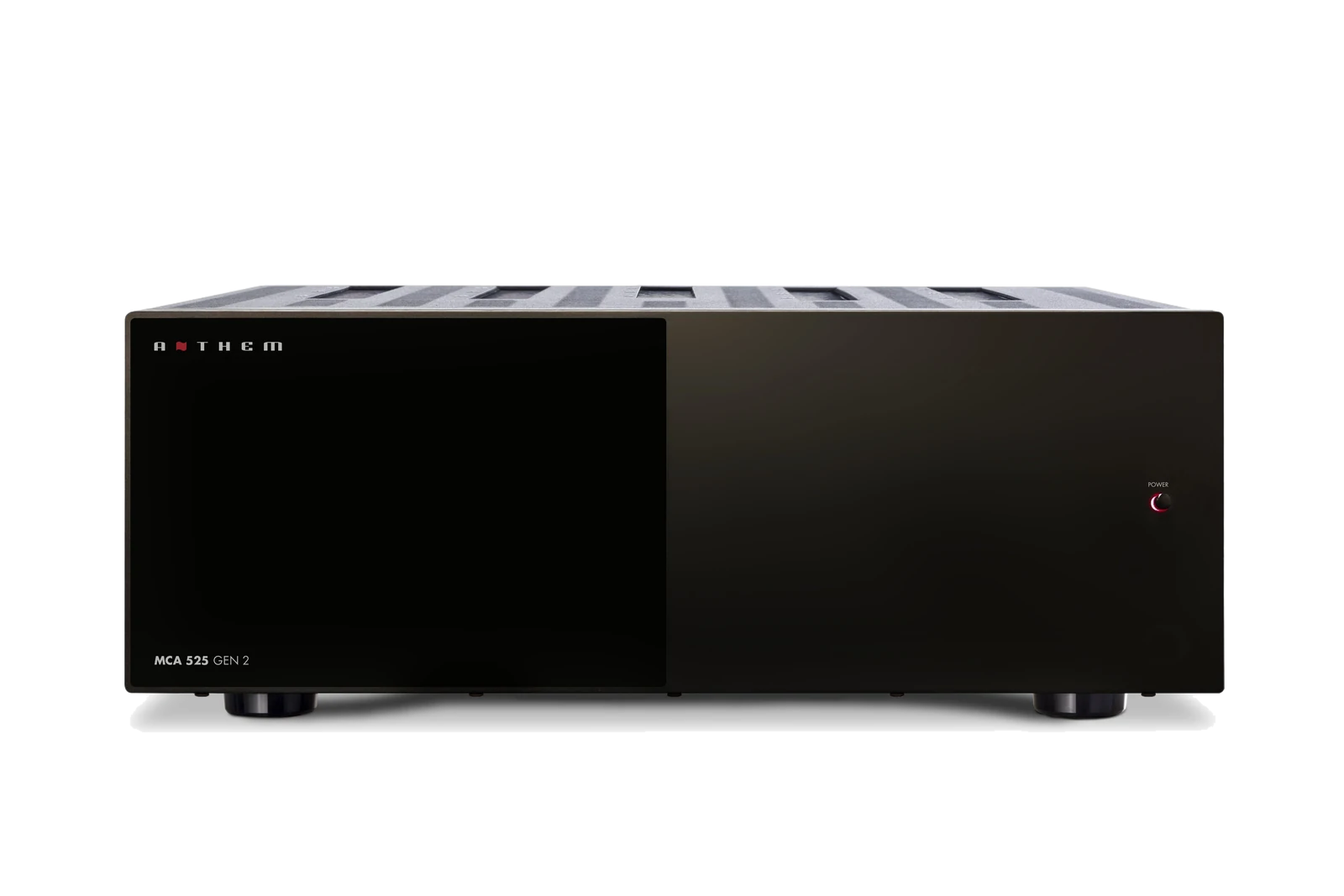

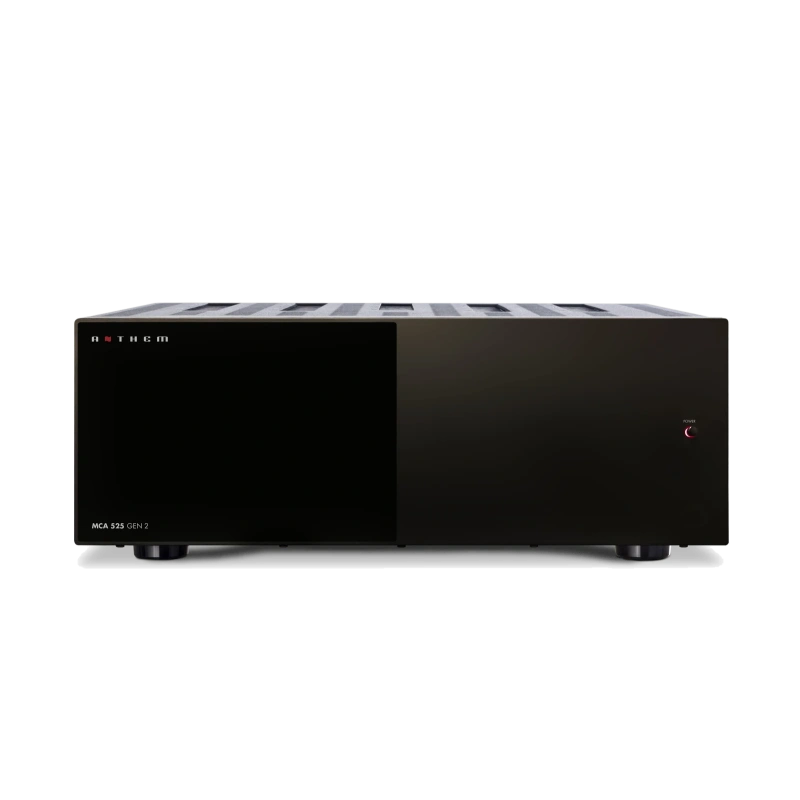

The Anthem MCA 525 Gen 2 is a five-channel Class AB power amplifier made in Canada, built to power a complete surround sound system.
Each channel delivers 225 watts into 8 ohms.
RCA and balanced XLR inputs connect to Anthem processors and other preamplifiers, and speaker binding posts accept a range of speaker cables.
A 12 V trigger input and output lets the amplifier power on and off with the rest of your system. It is a natural partner for Anthem AV processors or as added amplification for an Anthem receiver.
Call (613) 830-6787 or request a quote.
| Specifications | |
|---|---|
| Type | 5-channel power amplifier, Class AB, made in Canada |
| Channels | 5 |
| Power output | 225 W @ 8 ohms / 400 W @ 4 ohms / 600 W @ 2 ohms per channel, continuous, 20 Hz–20 kHz, 1% THD |
| THD at 100 W | 0.0010% (1 kHz), 0.015% (20 kHz) |
| SNR | 120 dB (IEC-A, ref. 225 W) |
| Inputs | Single-ended RCA and balanced XLR per channel; 12 V trigger in (3.5 mm) |
| Outputs | Speaker binding posts; 12 V trigger out |
| Protection | Advanced Load Monitoring (ALM) |
| Rack mounting | 4U rack-mounted height |
| Dimensions & weight | |
| Dimensions | 17-1/4" W x 6-5/8" H x 18-1/8" D 438 mm W x 169 mm H x 460 mm D |
| Weight | 61 lb (27.5 kg) |
