Paradigm Premier 520LCR v2
CA$999.99 each
Request a quote
Or call (613) 830-6787
The add to cart button will appear once you select the values above

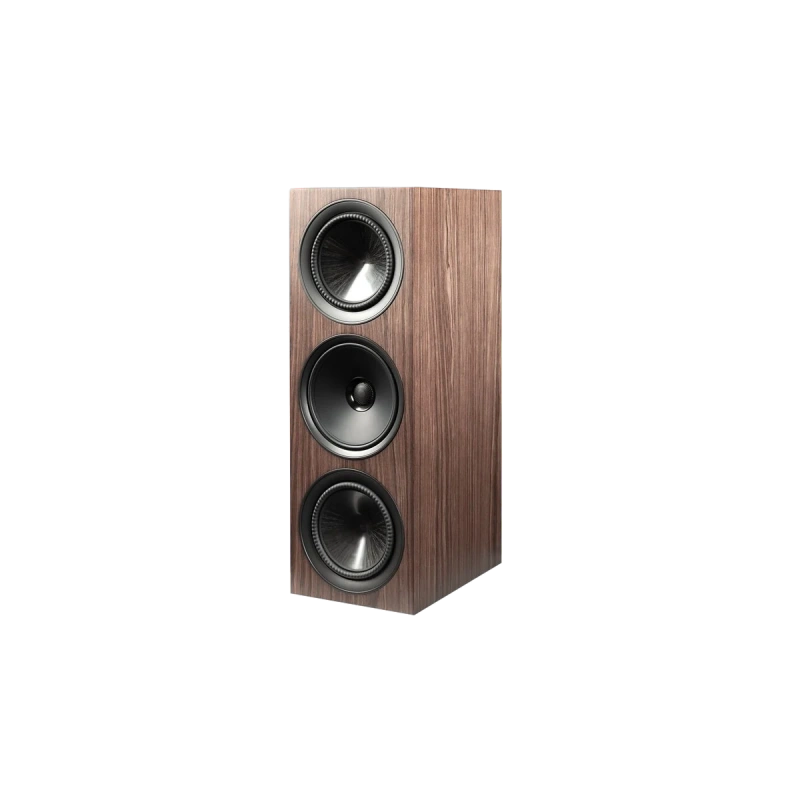

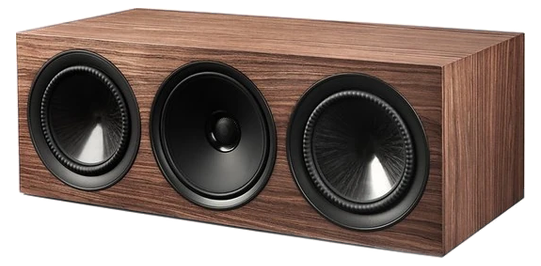

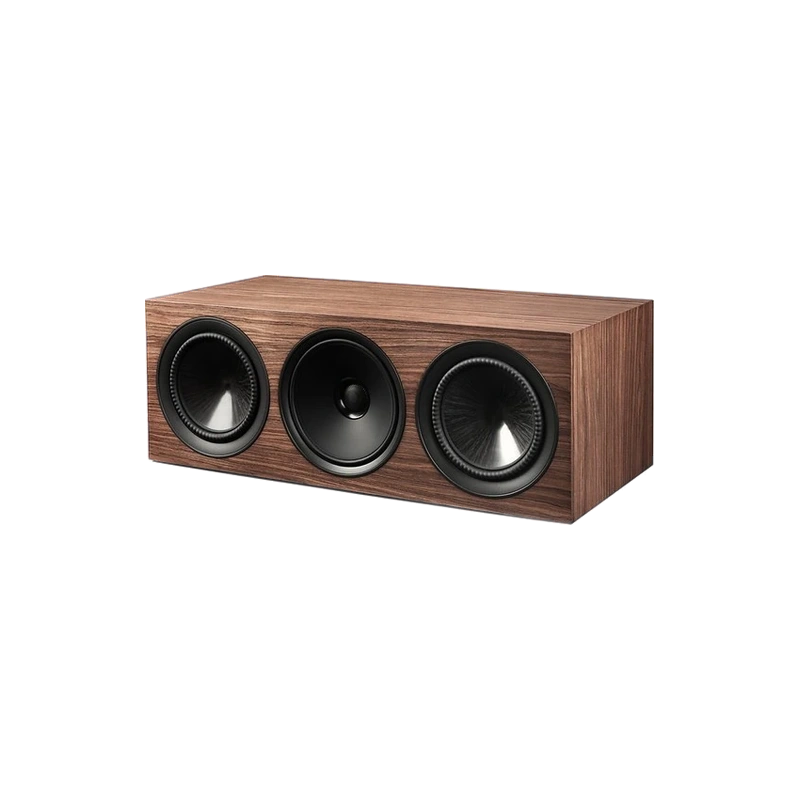

The Paradigm Premier 520LCR v2 is a center channel speaker from Paradigm's Premier line.
Paradigm describes its design as: 4-driver, 3-way sealed LCR speaker with AL-MAC, AL-MAG, Carbon-X, OSW™, and PPA™.
Paradigm specifies an on-axis frequency response of ±3dB from 75Hz - 23kHz and low-frequency extension to 50Hz (DIN).

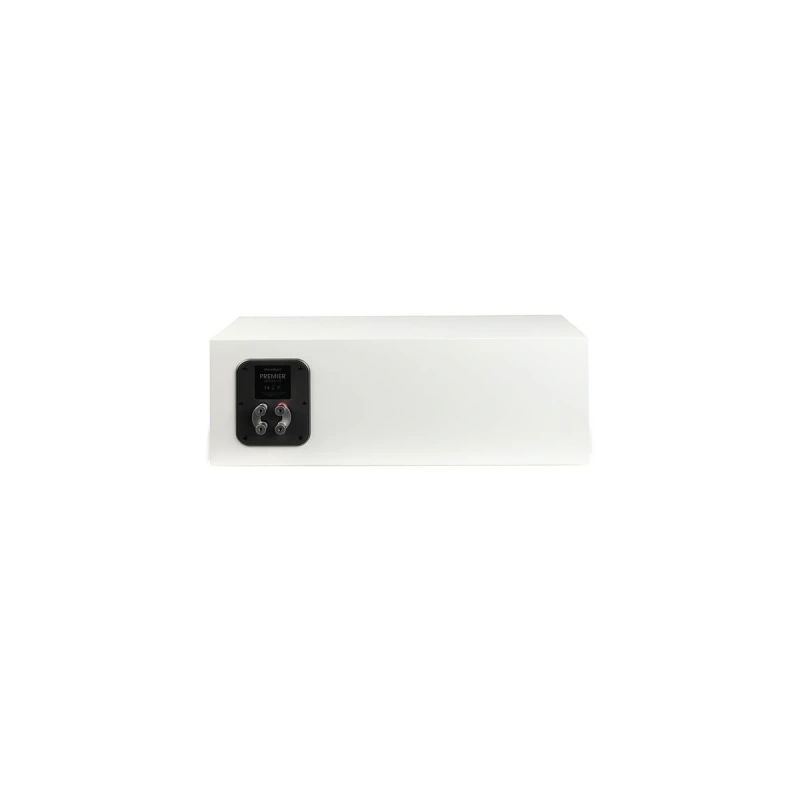

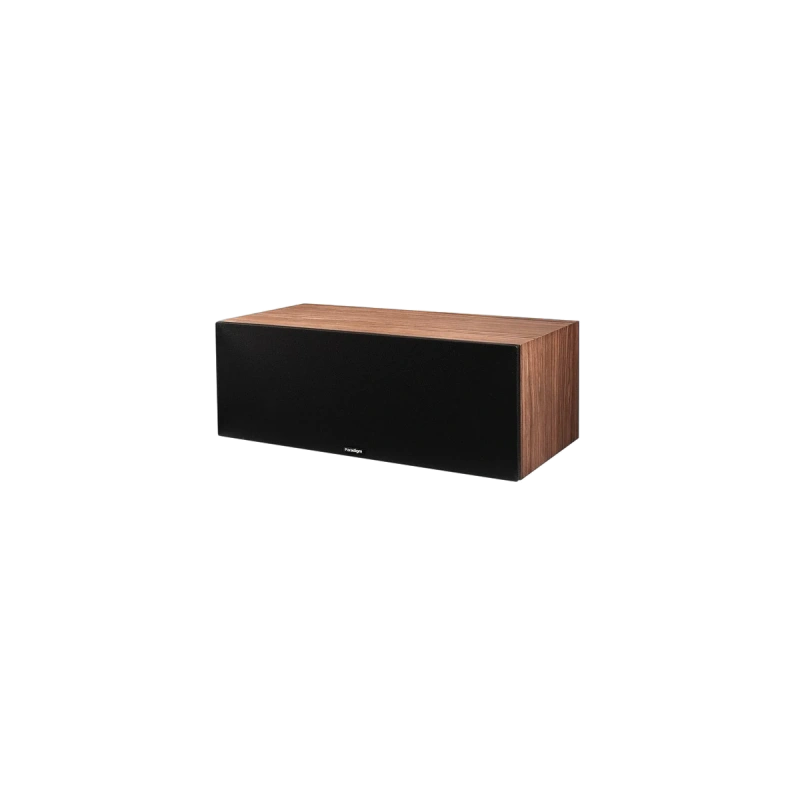

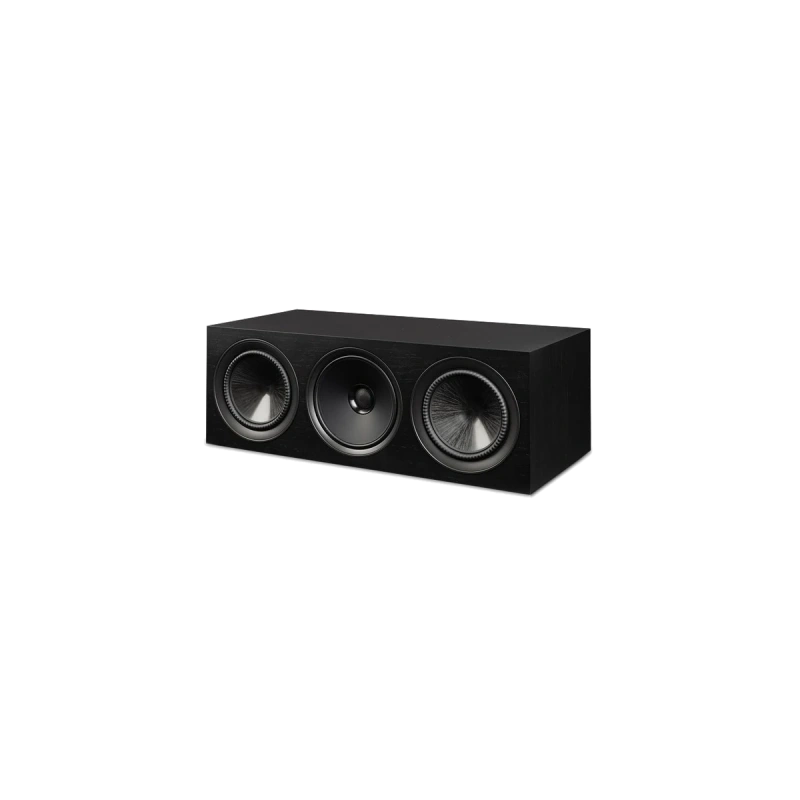

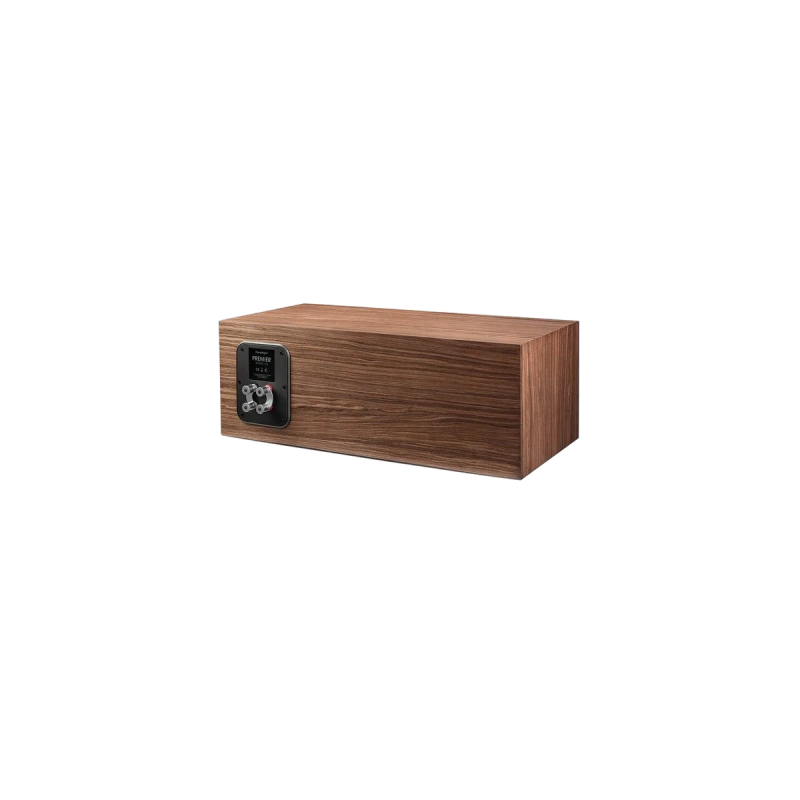

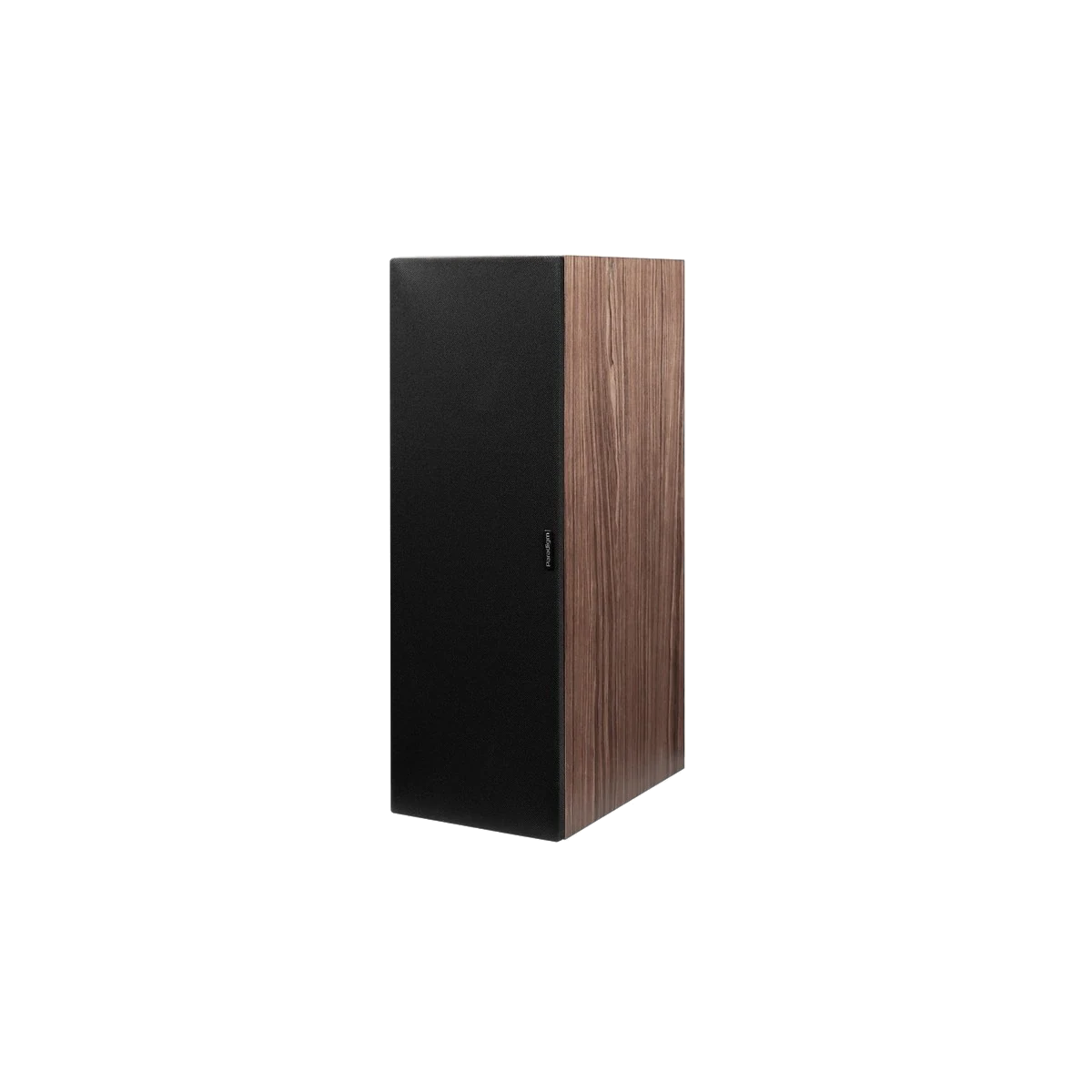

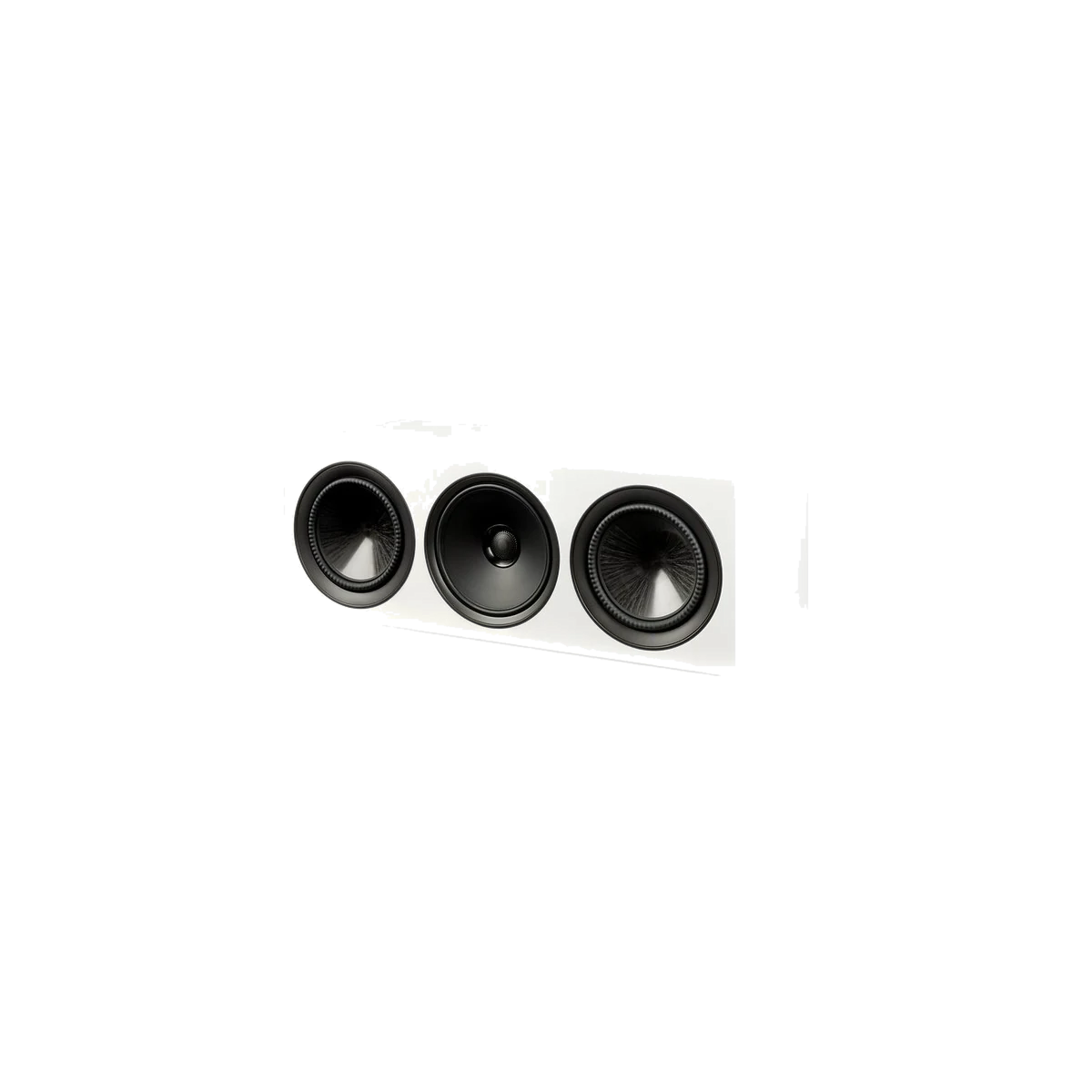

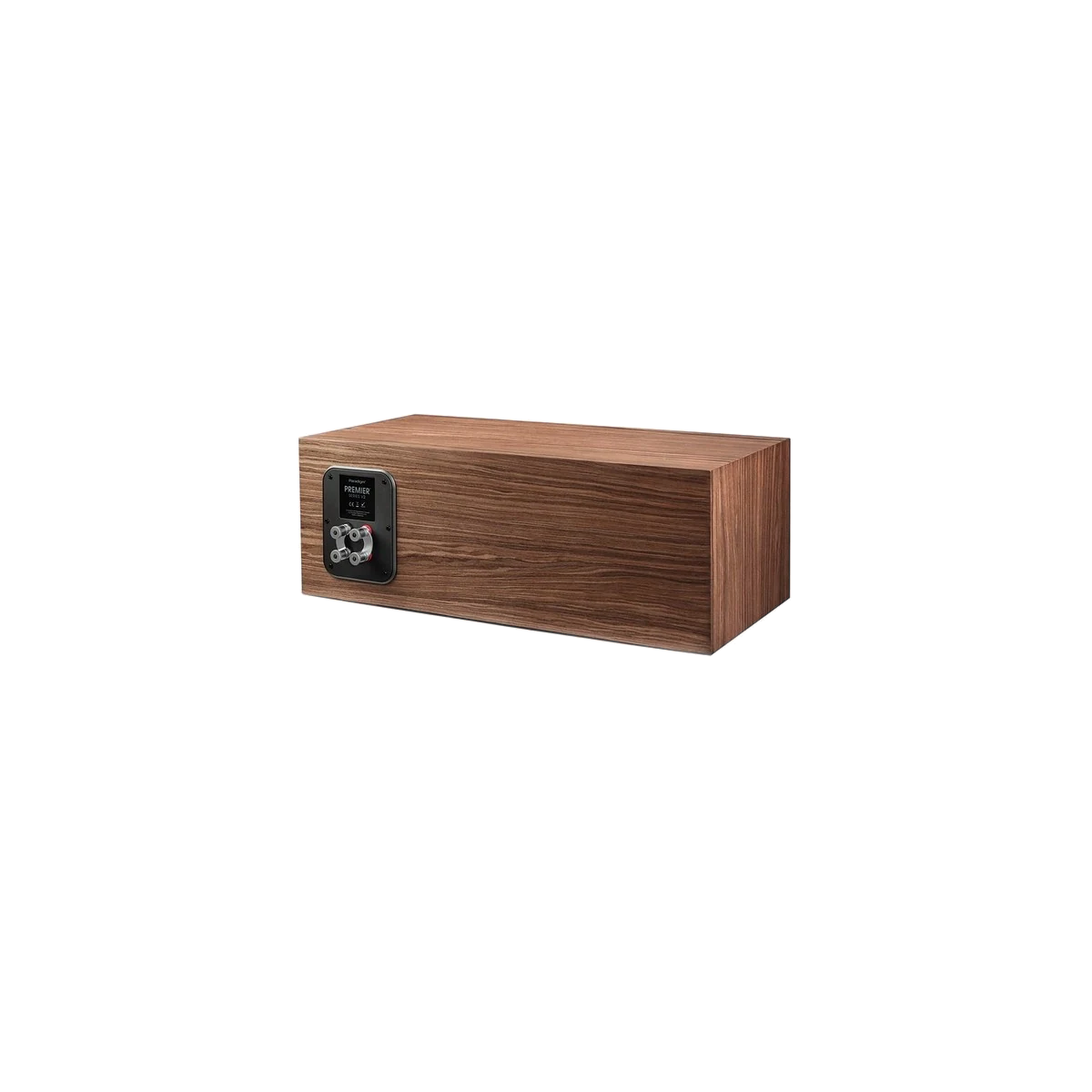

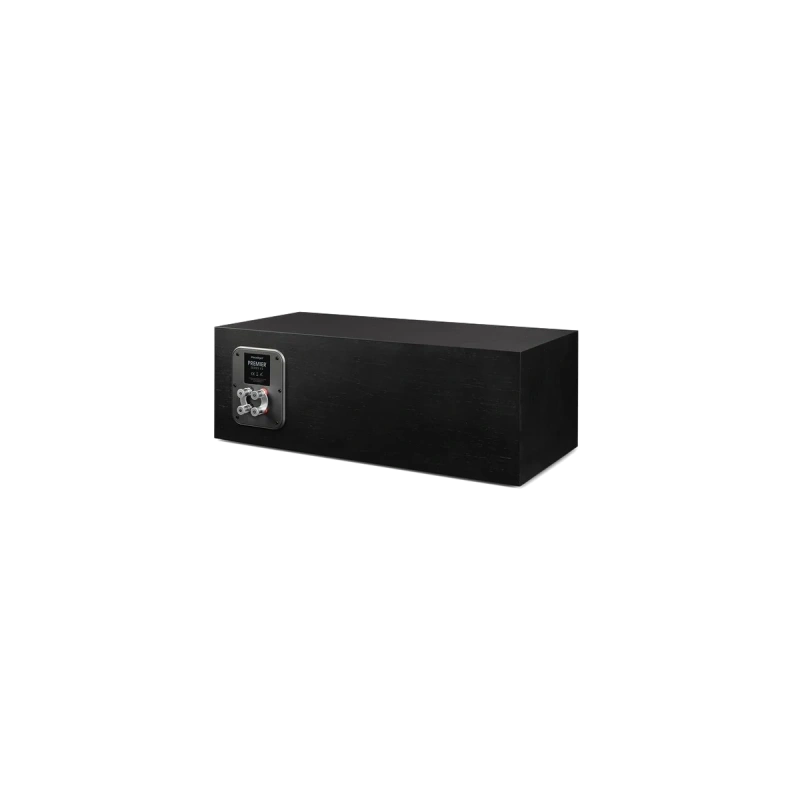

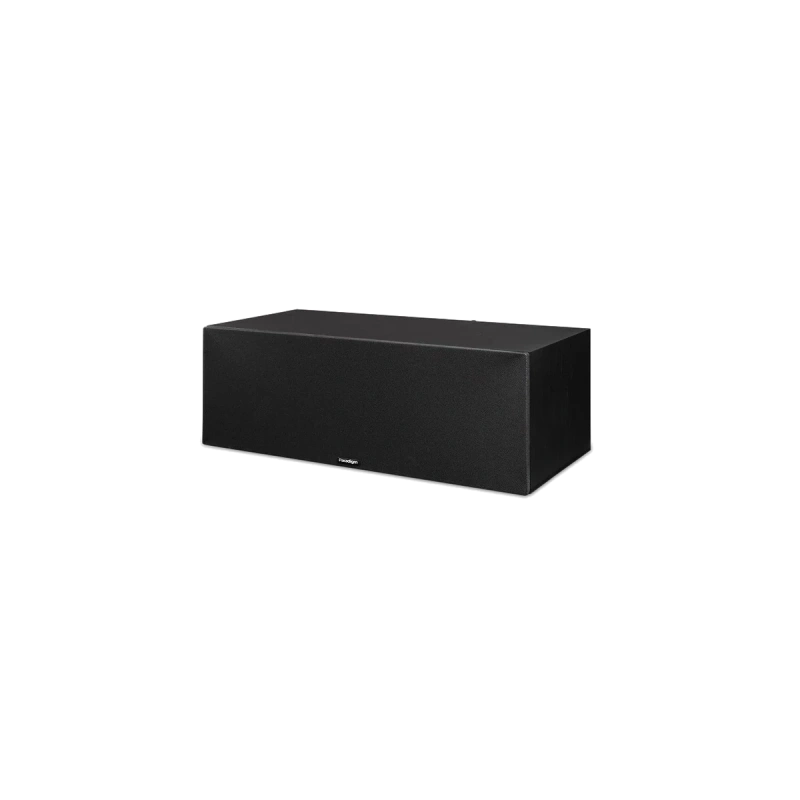

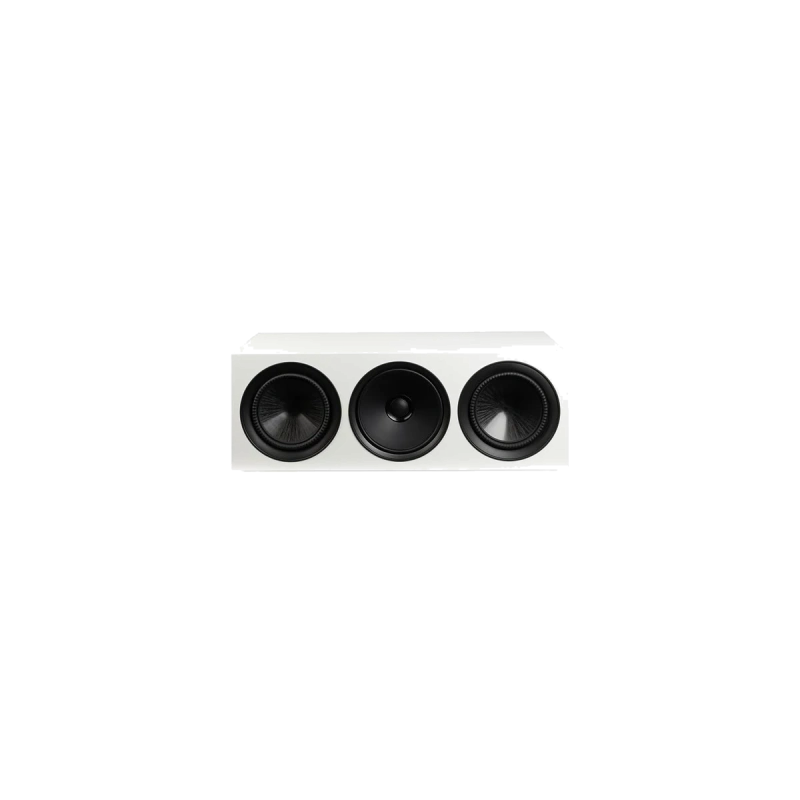

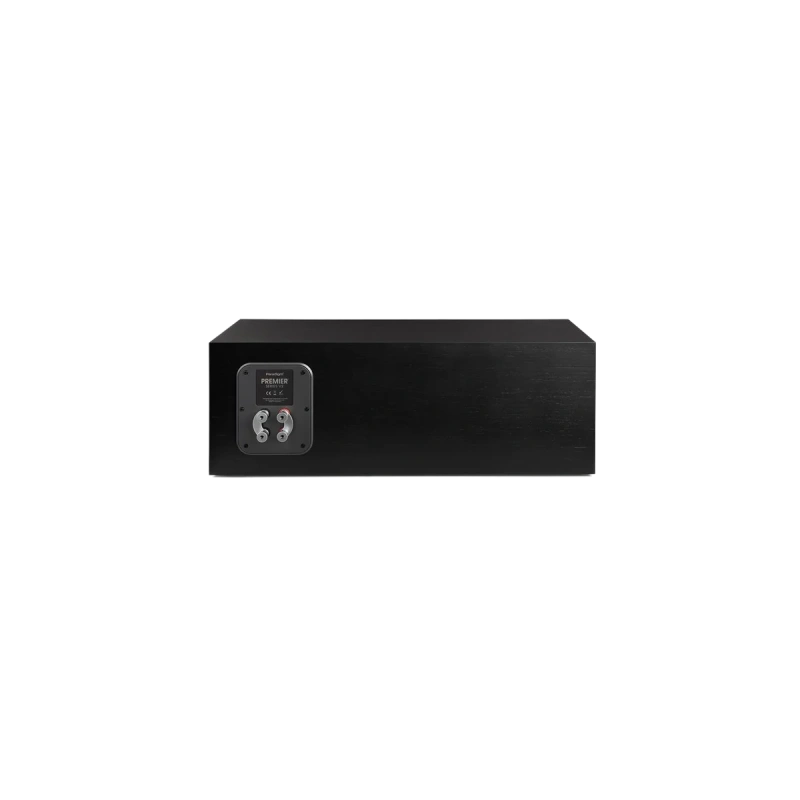

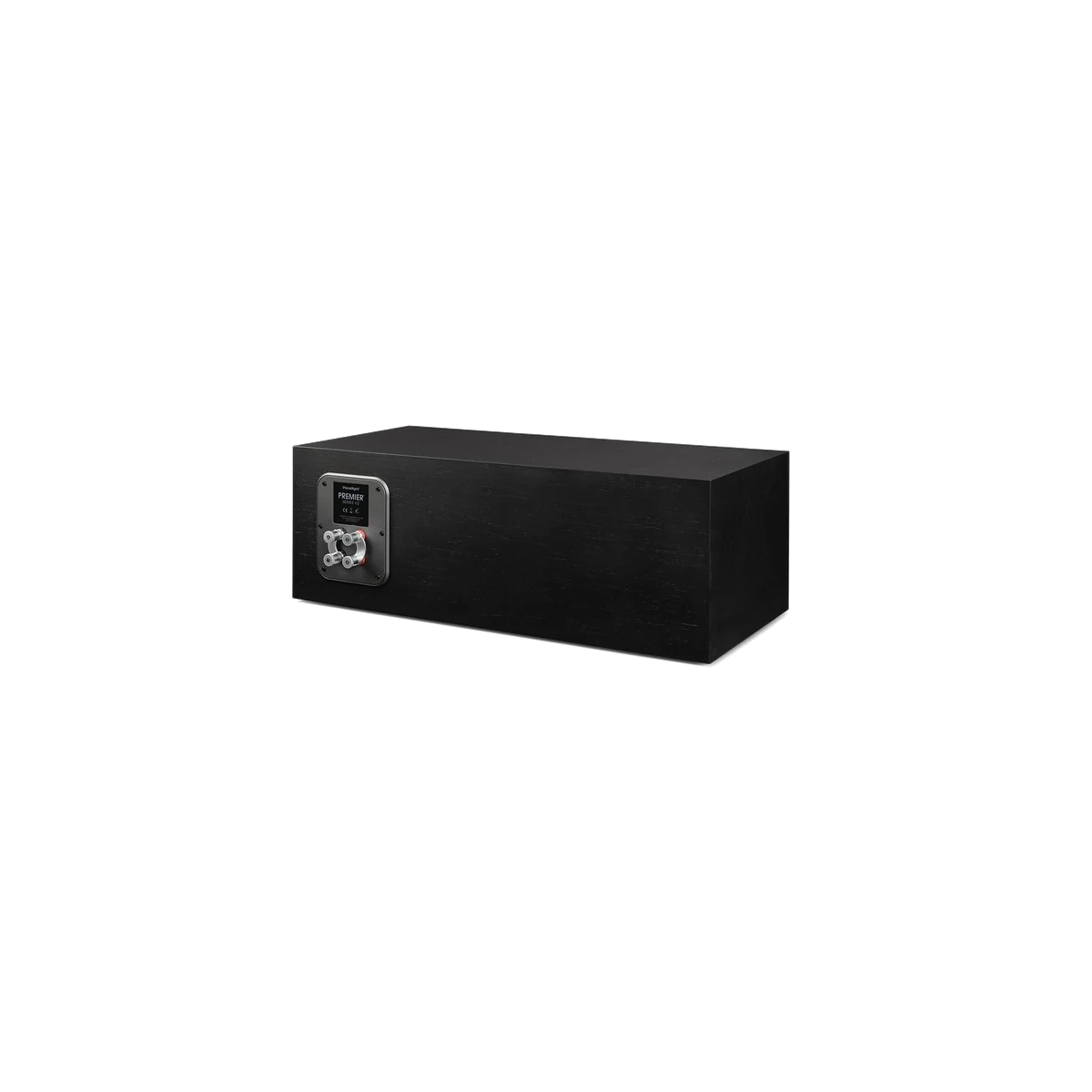

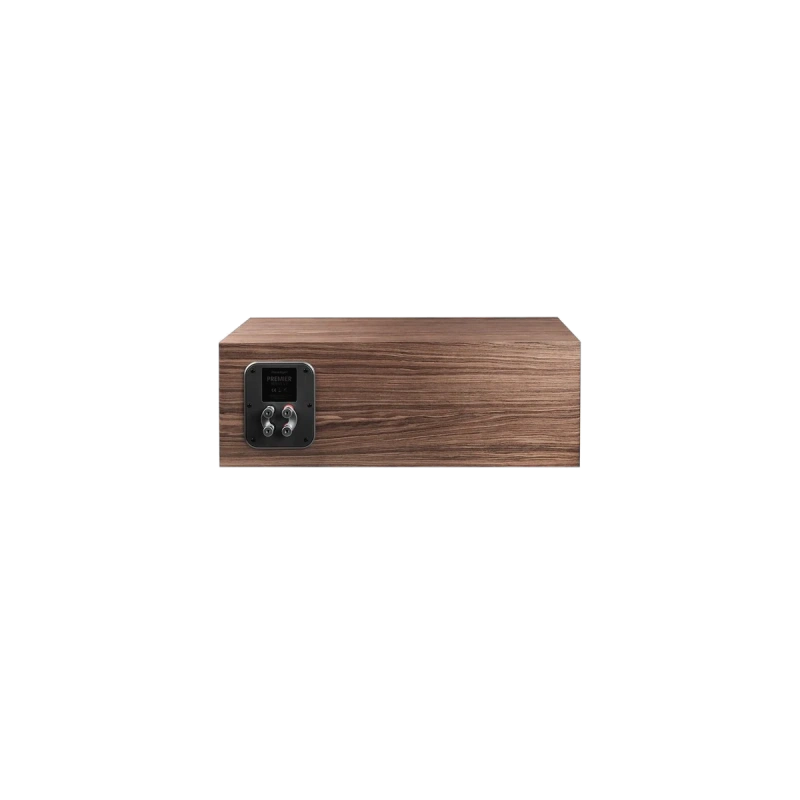

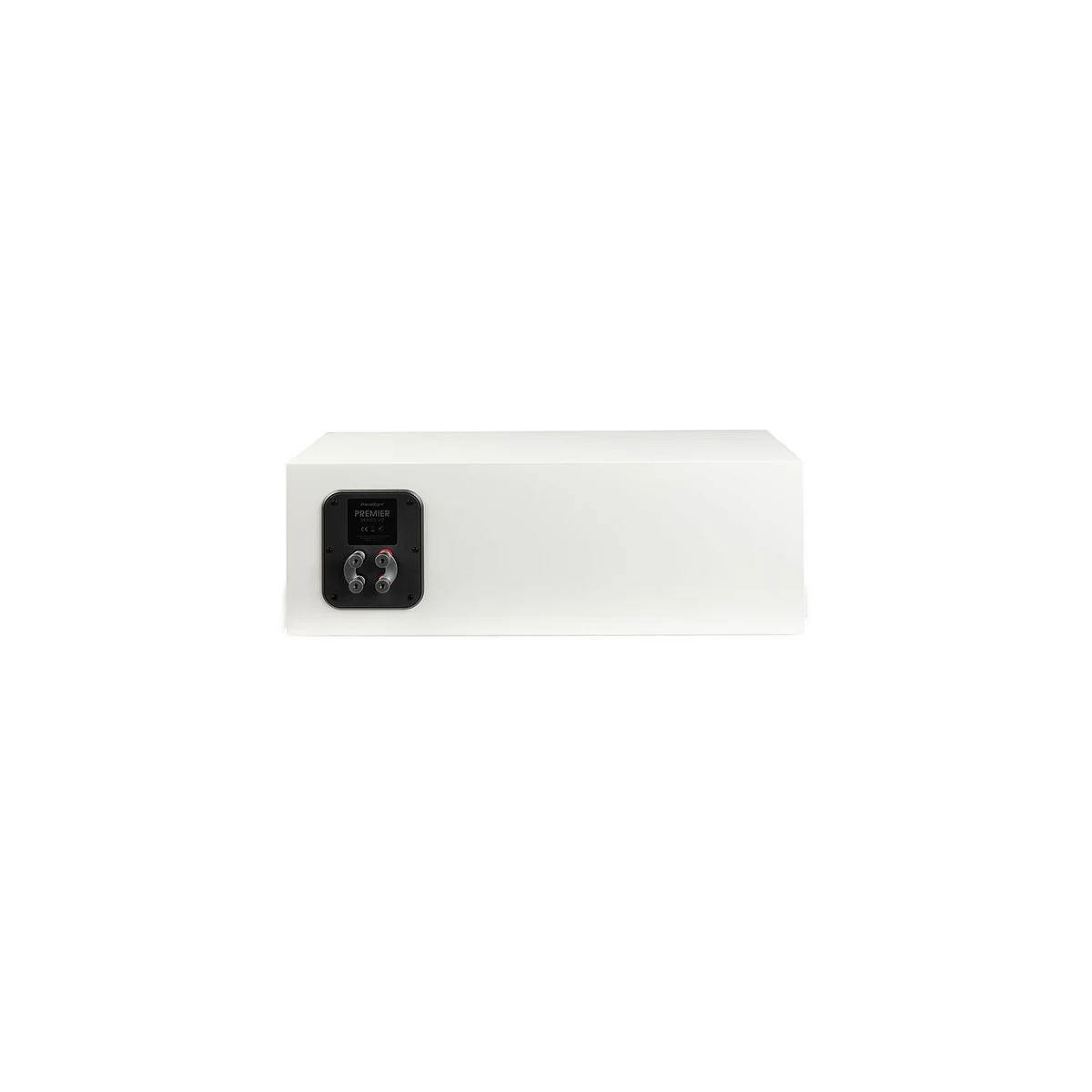

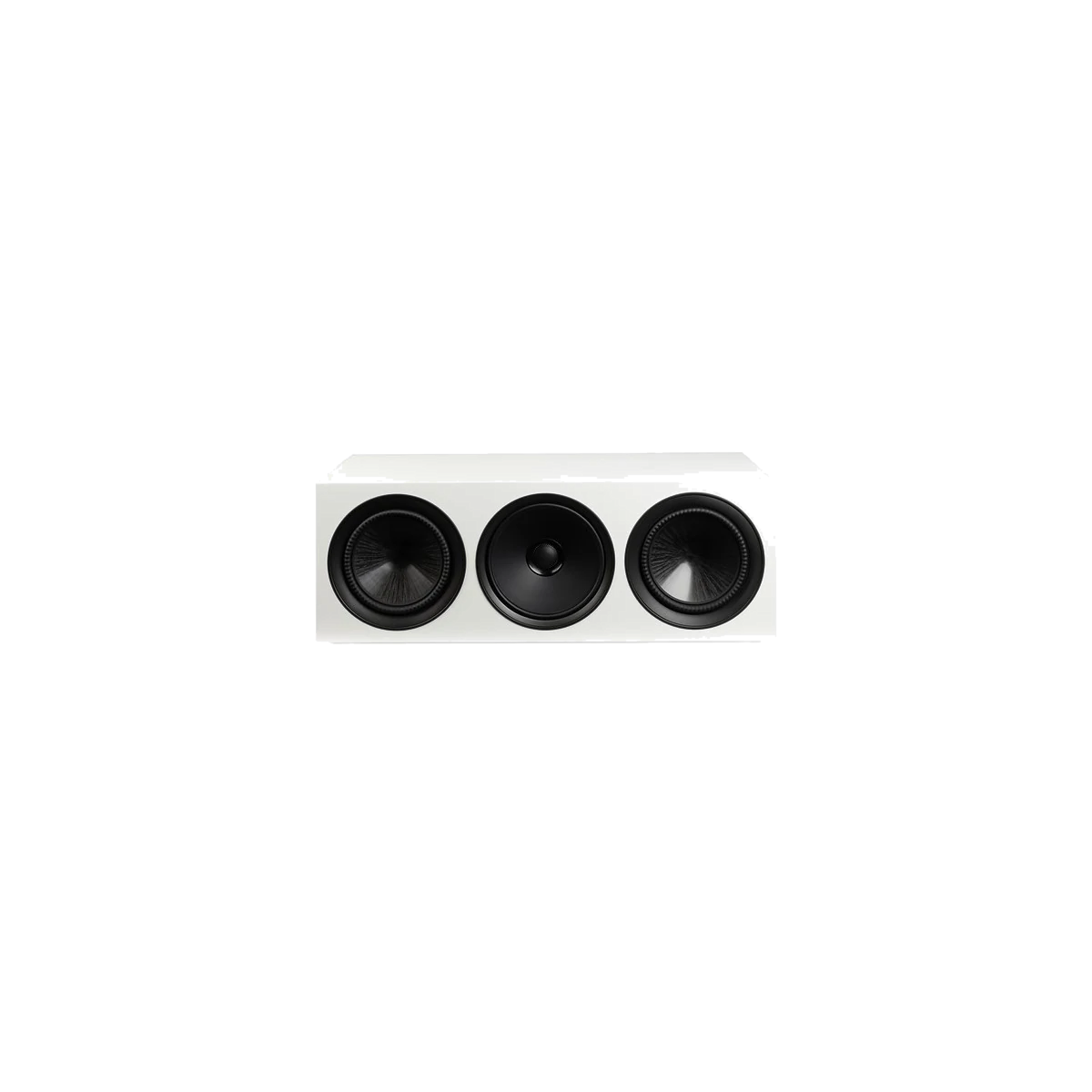

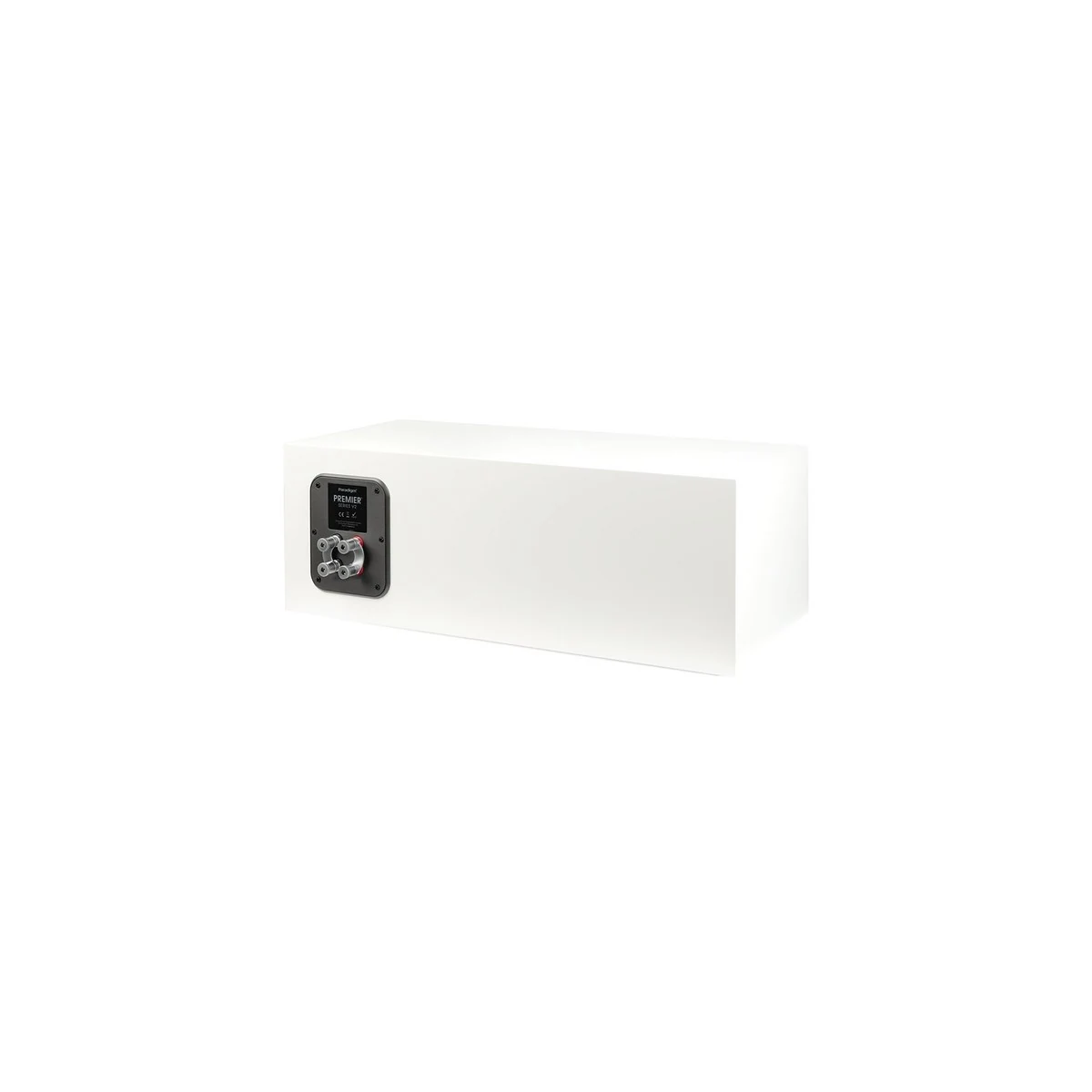

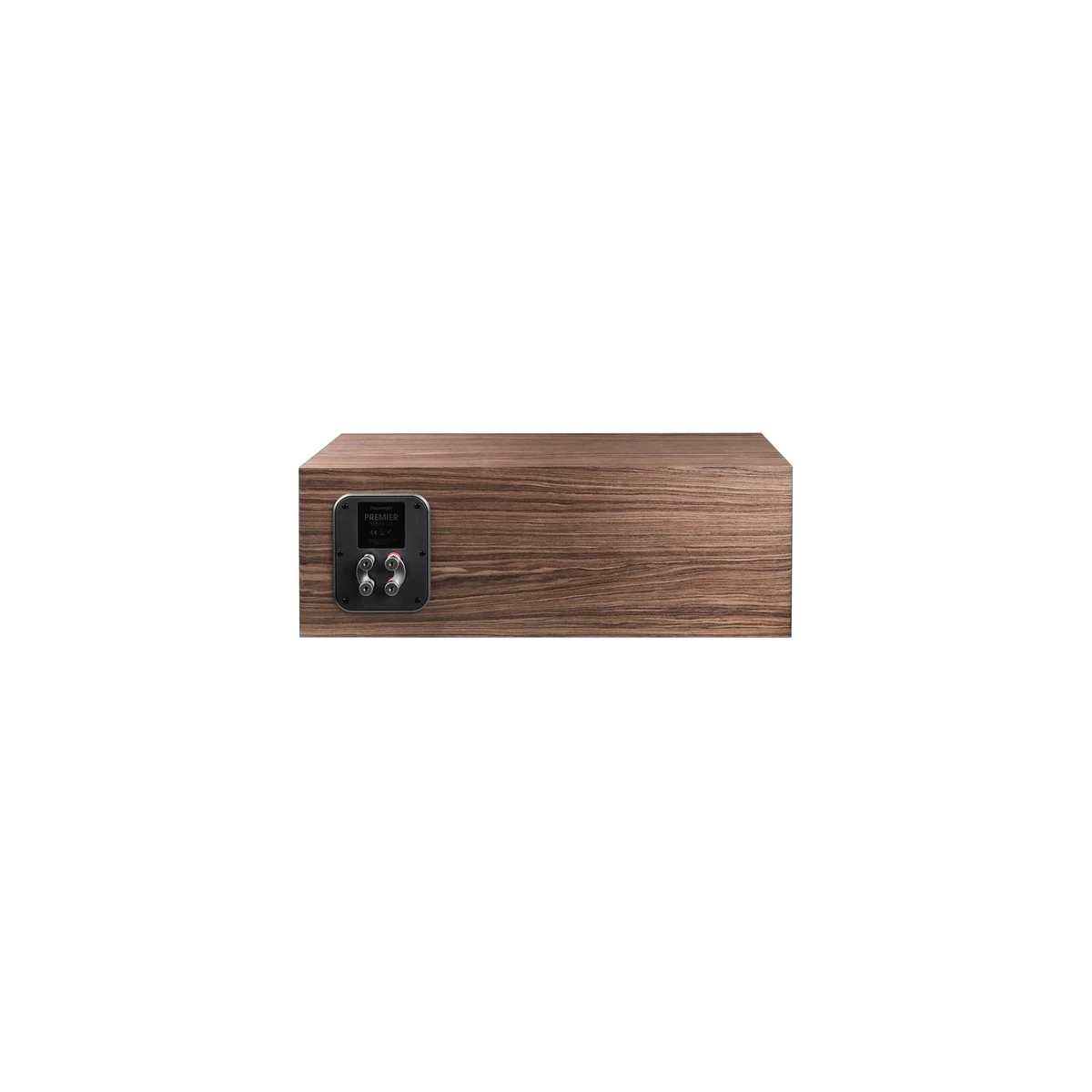

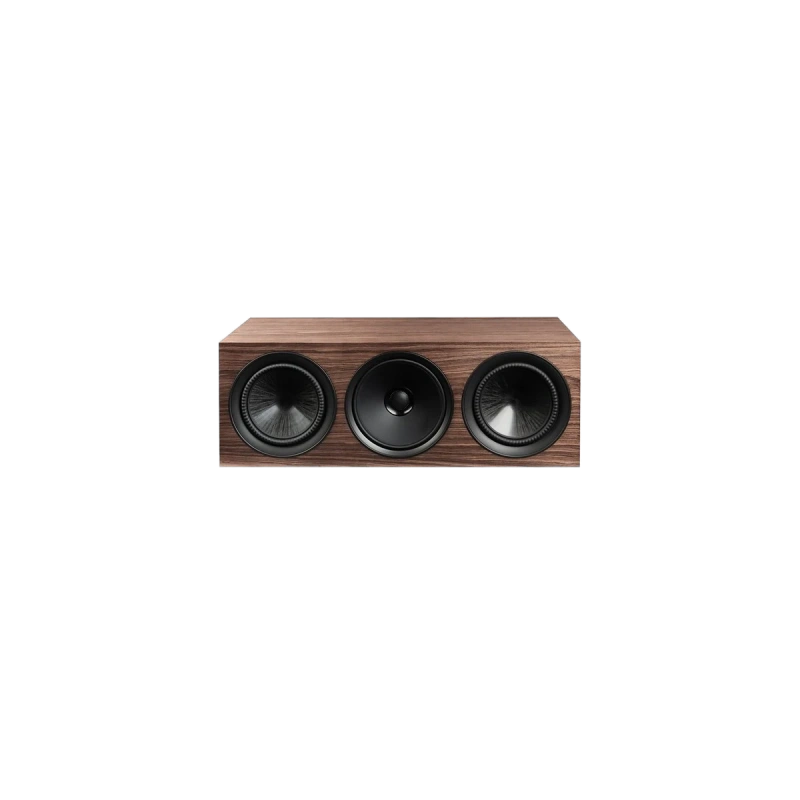

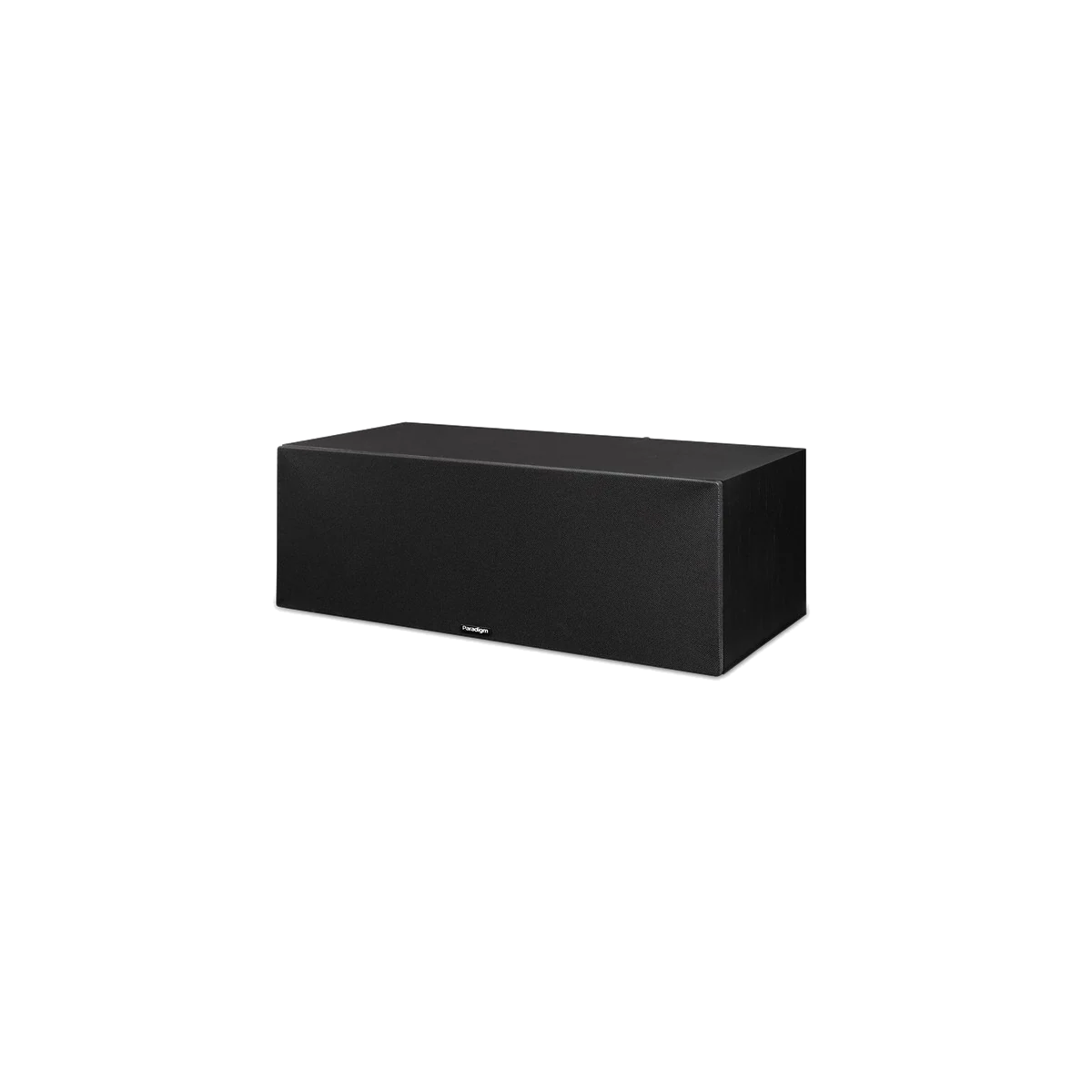

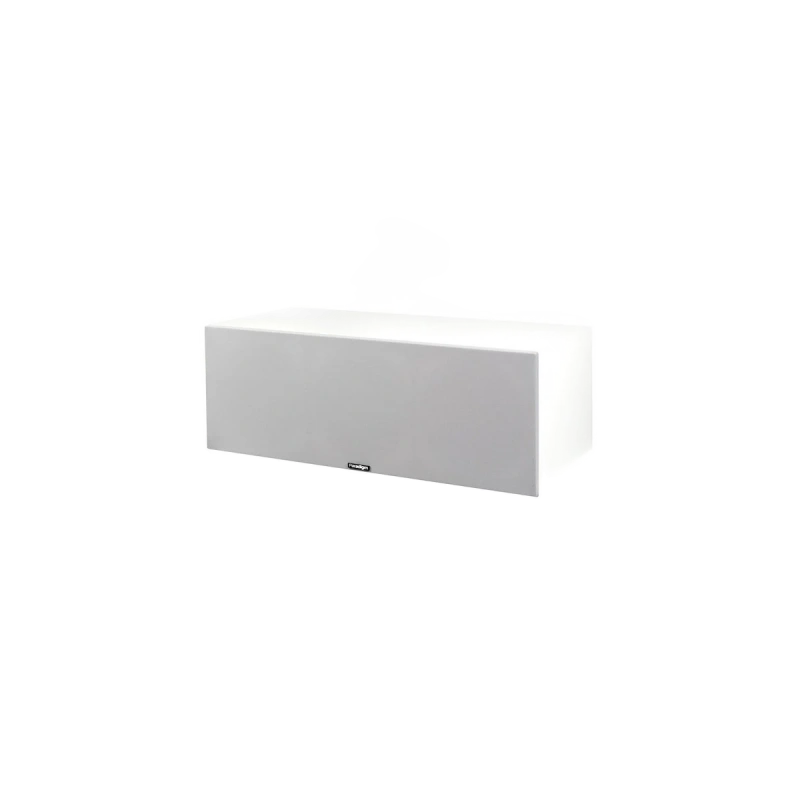

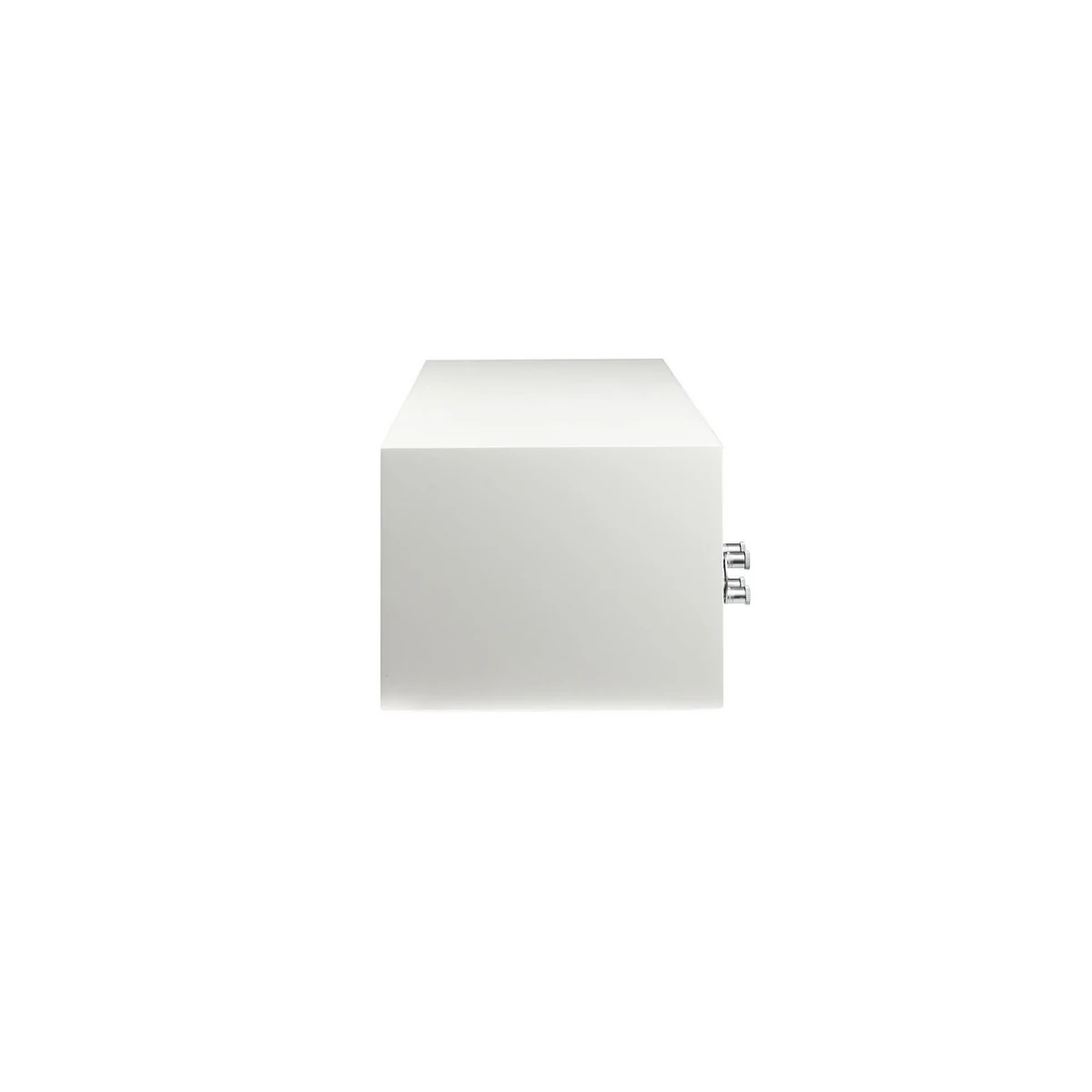

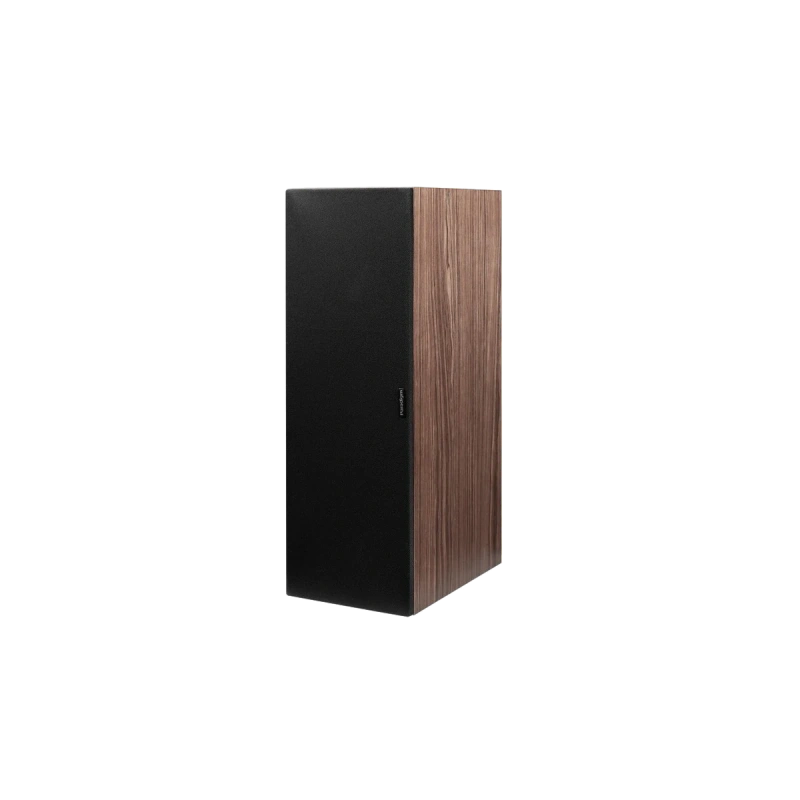

Available finishes: Piano Black, Black Walnut, Walnut, Satin White.
Call (613) 830-6787 or request a quote.
| Specifications | |
|---|---|
| Sold as | each |
| Design | 4-driver, 3-way sealed LCR speaker with AL-MAC, AL-MAG, Carbon-X, OSW™, and PPA™ |
| Crossover | 2nd Order Electro-acoustic at 1.5kHz (tweeter/midrange) 2nd Order Electro-acoustic at 650Hz (midrange/woofer) |
| Frequency response (on-axis) | ±3dB from 75Hz - 23kHz |
| Frequency response (30° off-axis) | ±3dB from 75Hz - 20kHz |
| High frequency driver | 1” (25mm) AL-MAC™ Ceramic Dome with Oblate Spheroid Waveguide (OSW™) and Perforated Phase-Aligning (PPA™) Tweeter Lens, ferro-fluid damped / cooled |
| Midrange frequency driver | Coaxial 6” (152mm) AL-MAG™ Cone, a 2” high-temp multilayered voice coil with Apical™ former, Patented Dual-Sync™ Continuous Flux Motor |
| Bass frequency driver | Two 6” (152mm) Ultra-High Excursion CARBON-X™ Unibody Cone, Gen3 Active Ridge Technology (ART™) with Vertical Mounting System, and a 1” hightemp multi-layered voice coil with ventilated Apical™ former |
| Sensitivity room / anechoic | 93dB / 90dB |
| Low frequency extension | 50Hz (DIN) |
| Suitable amplifier power range | 15-120 Watts |
| Maximum input power | 80 Watts |
| Impedance | Compatible with 8 ohms |
| Dimensions (H × W × D) incl. grille | 8.3” x 23.4” x 12” (21.1 cm x 59.4 cm x 30.5 cm) |
| Weight | 31.1 lbs (14.1 kg) each |
| Finishes | Piano Black, Black Walnut, Walnut, Satin White |
