Paradigm Premier 620C v2
CA$1,599.99 each
Request a quote
Or call (613) 830-6787
The add to cart button will appear once you select the values above

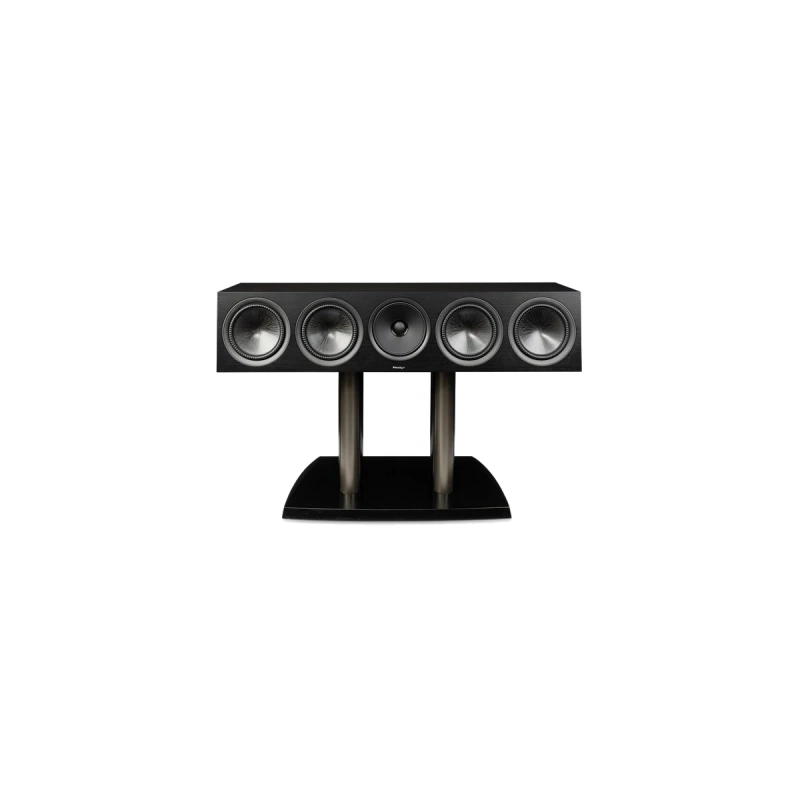

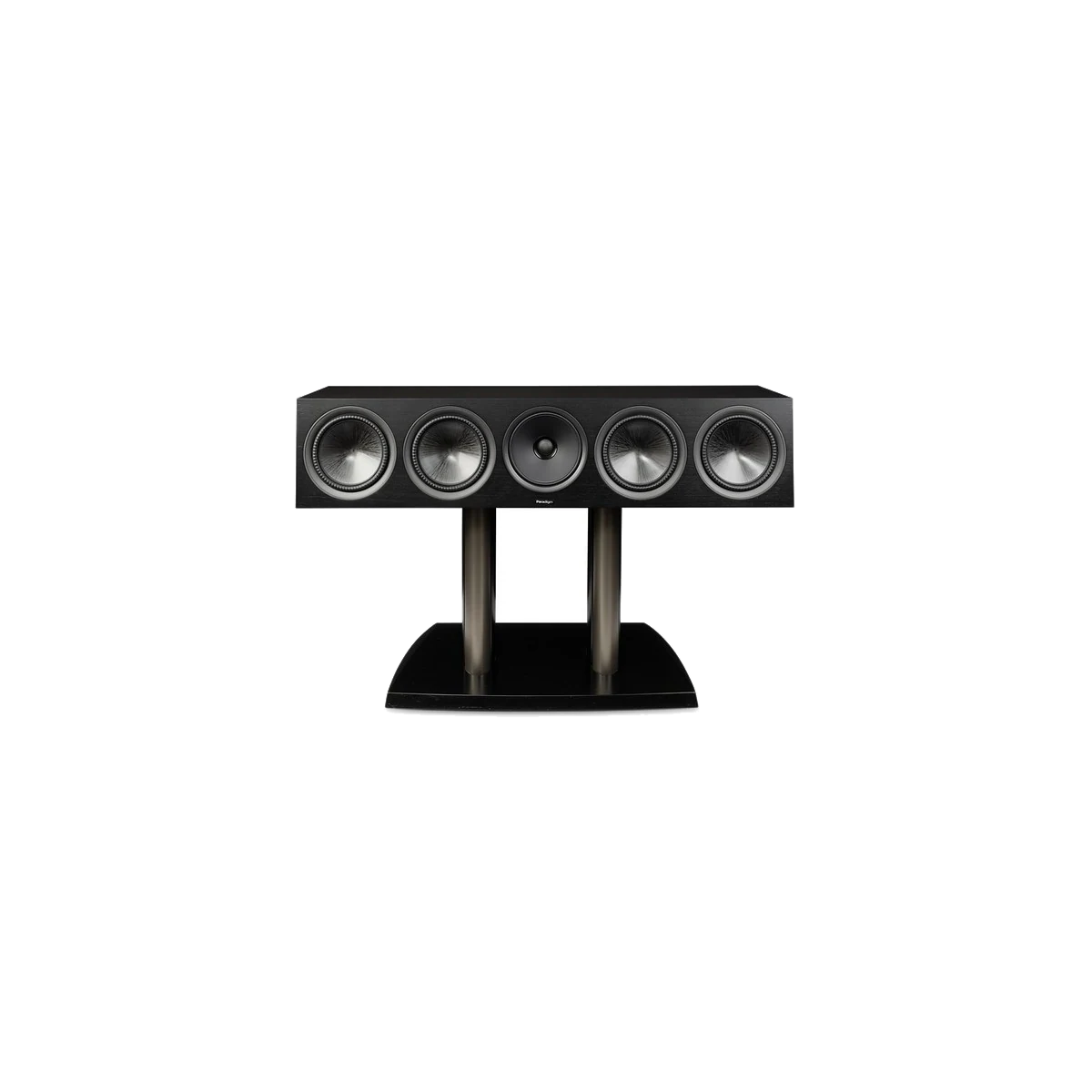

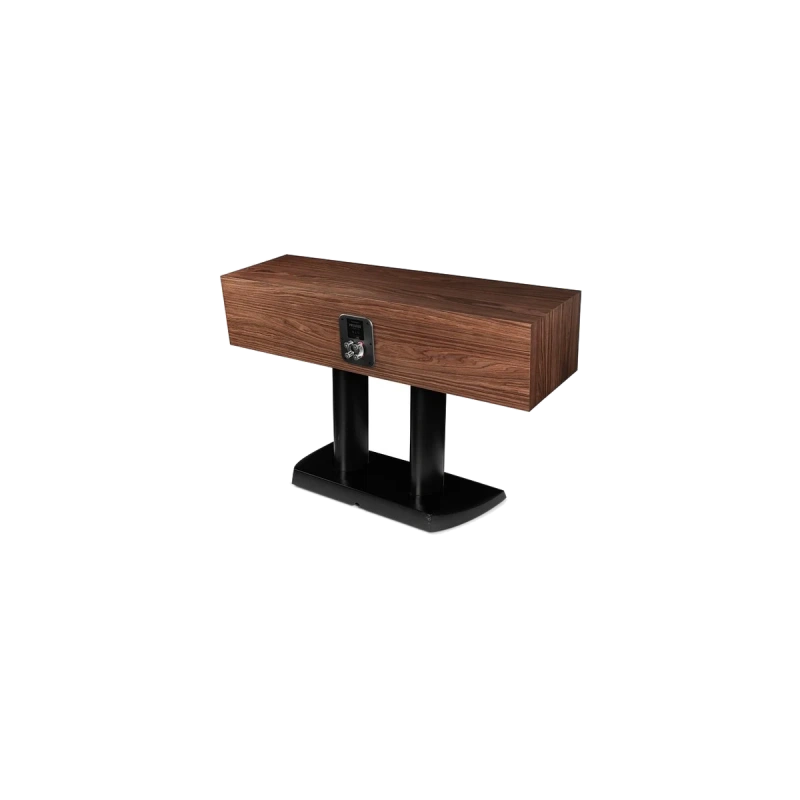

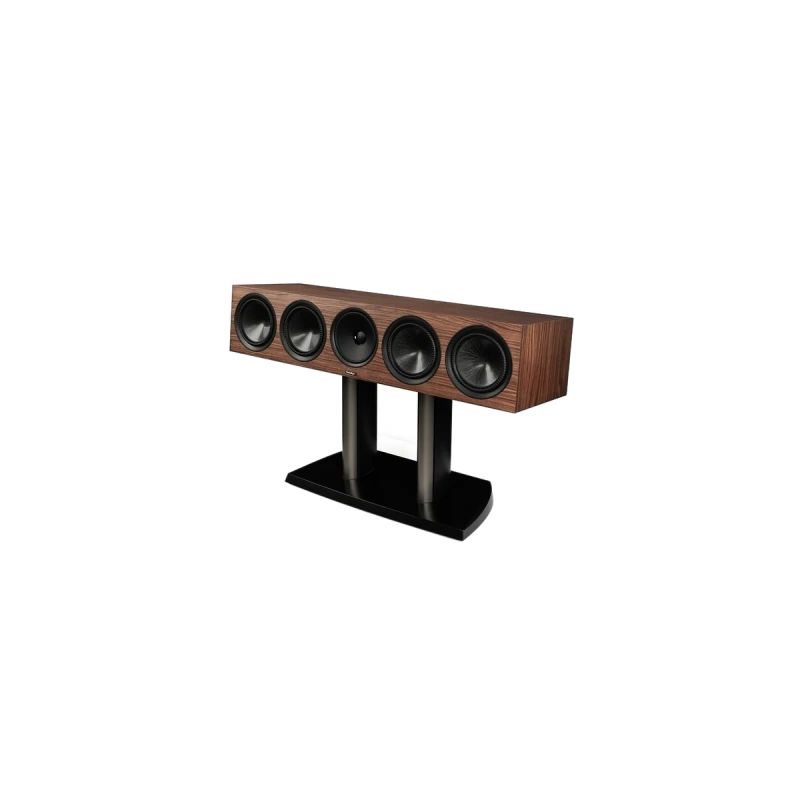

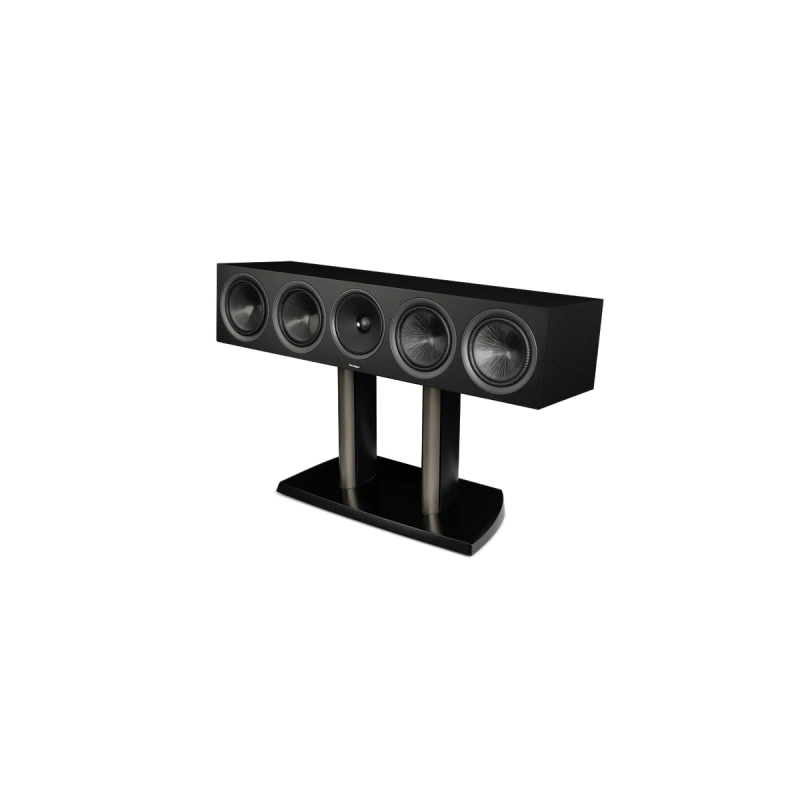

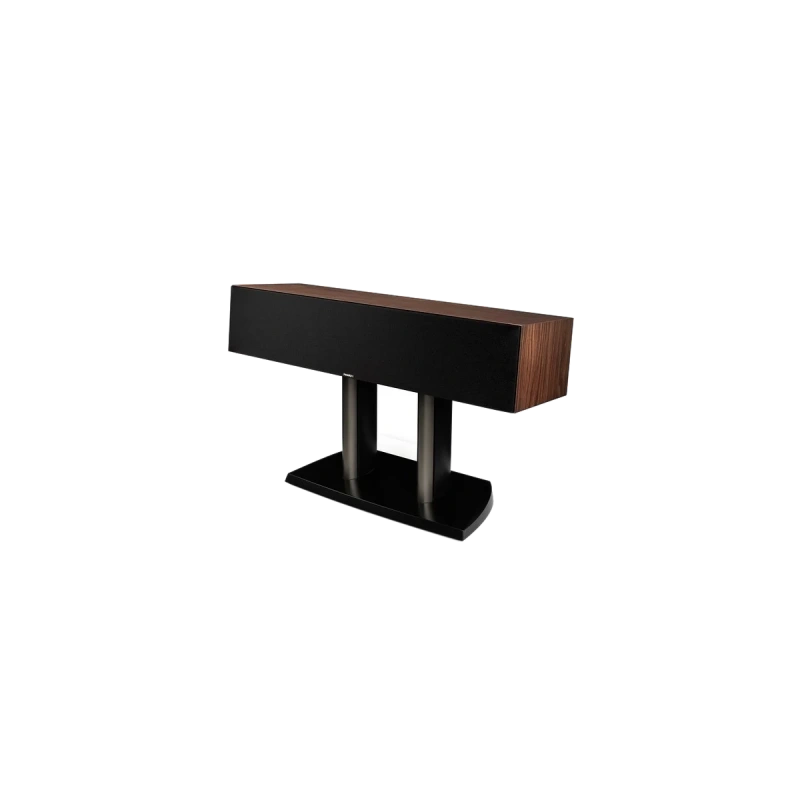

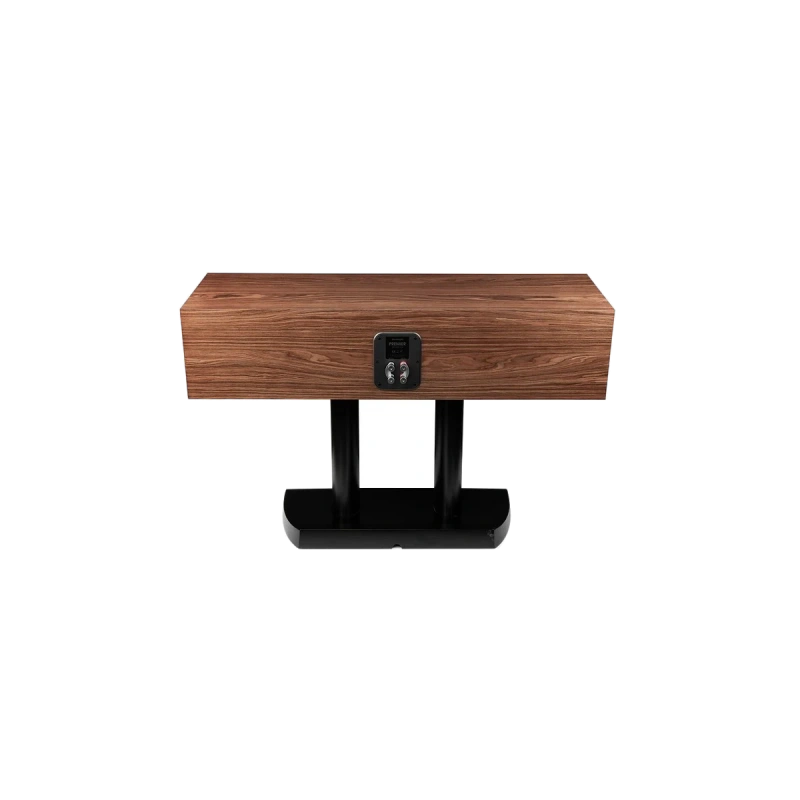

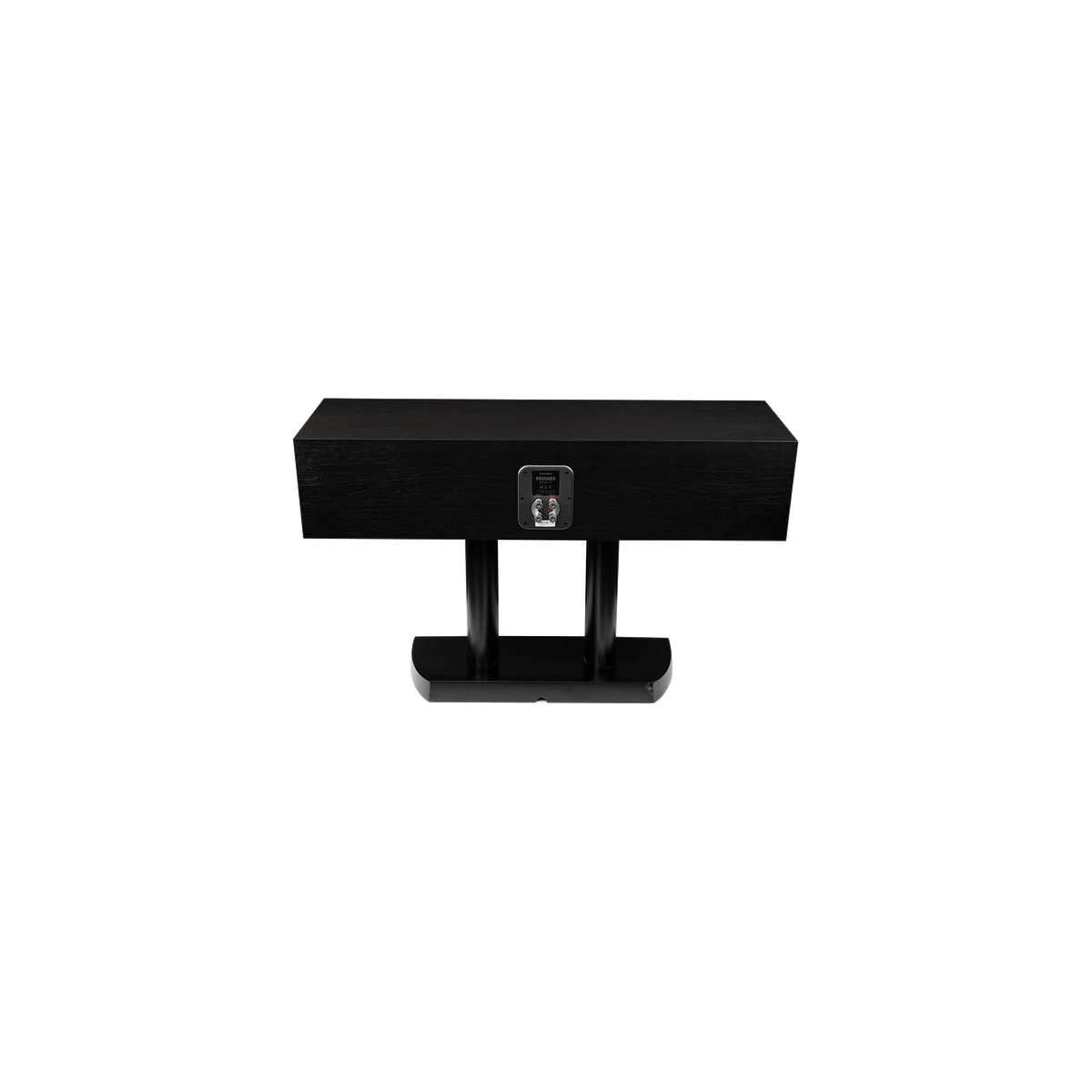

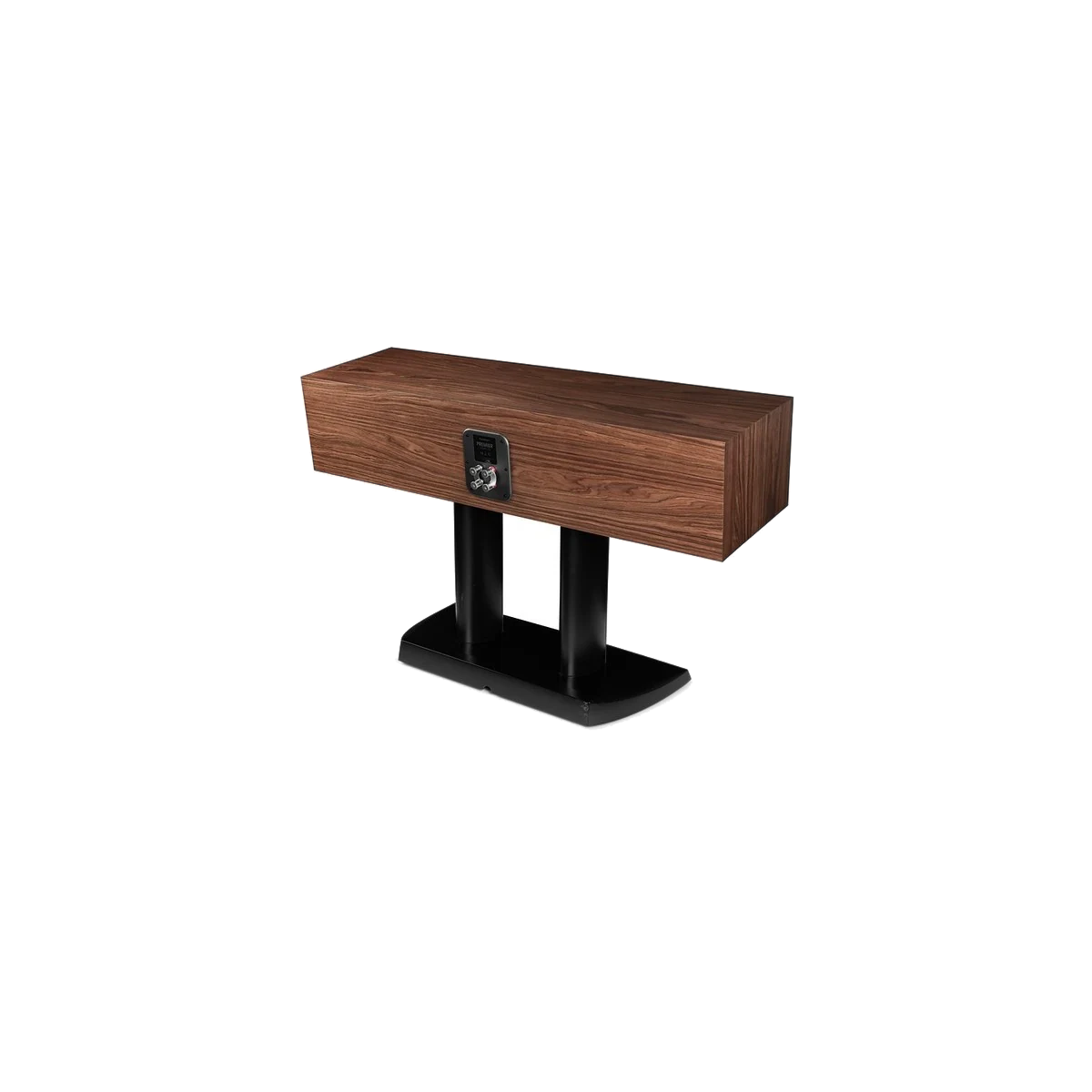

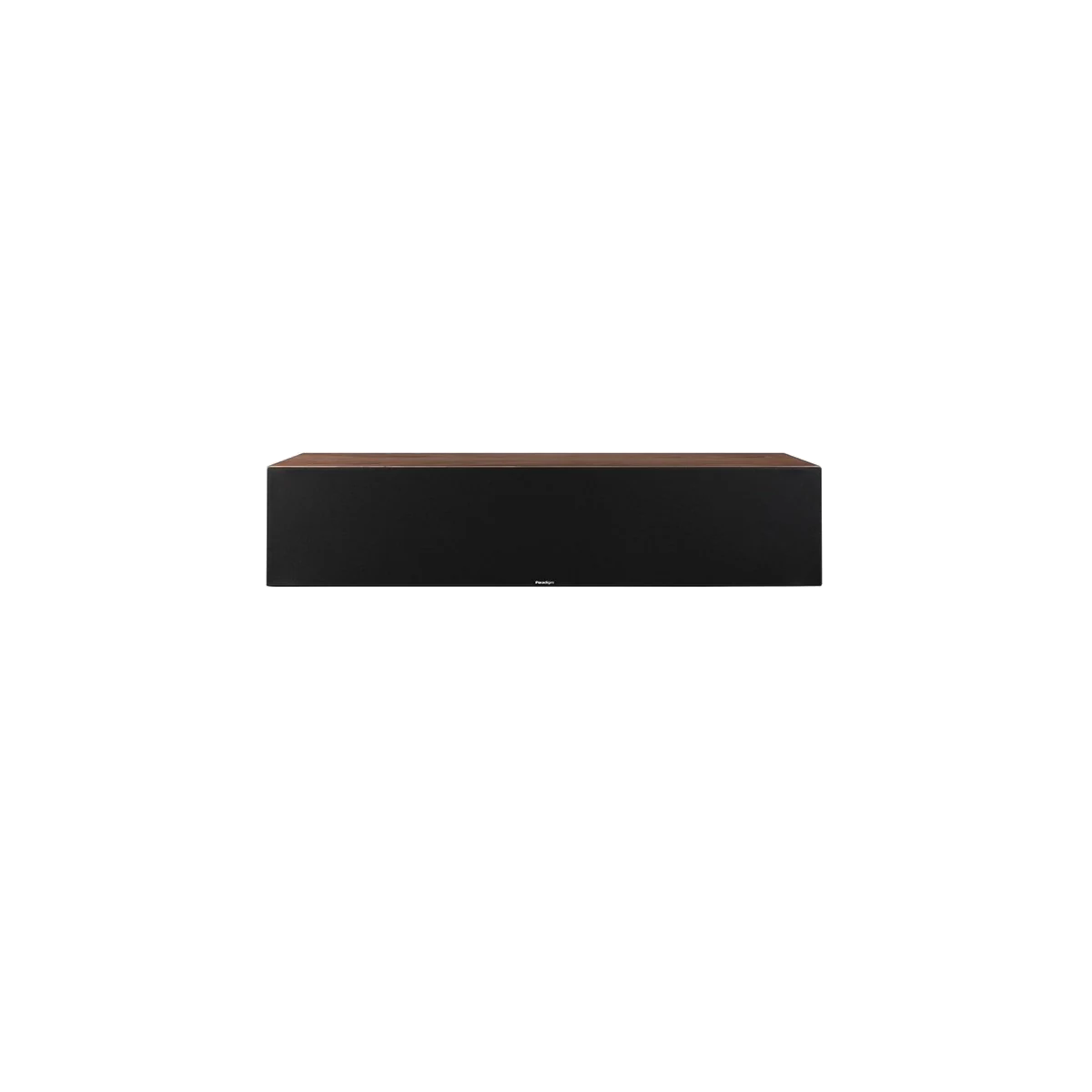

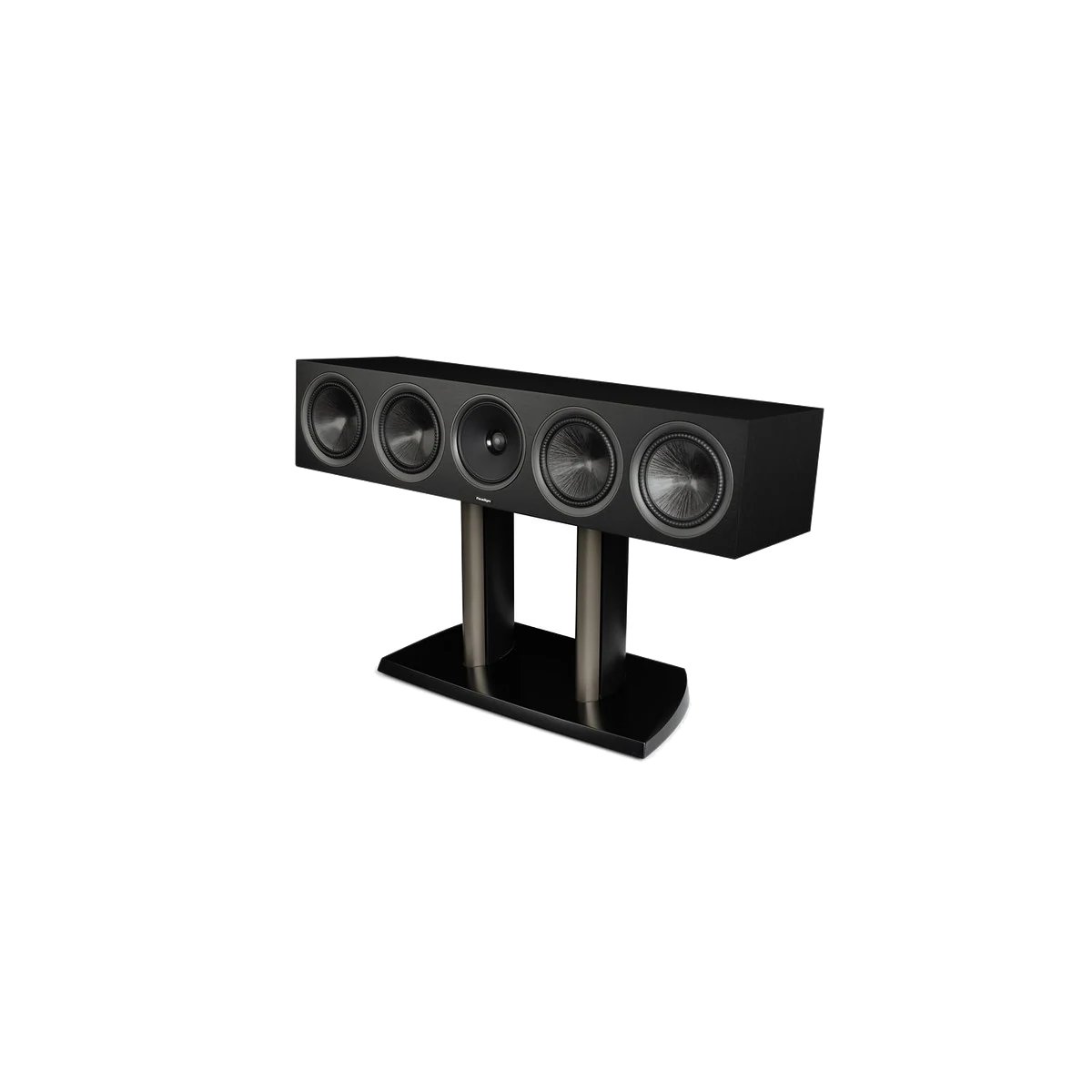

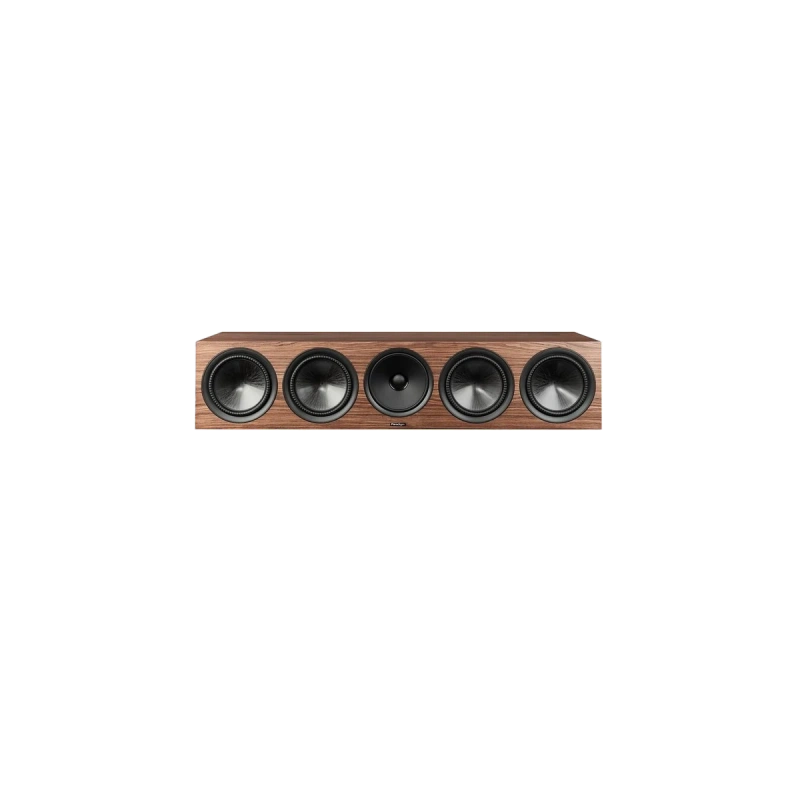

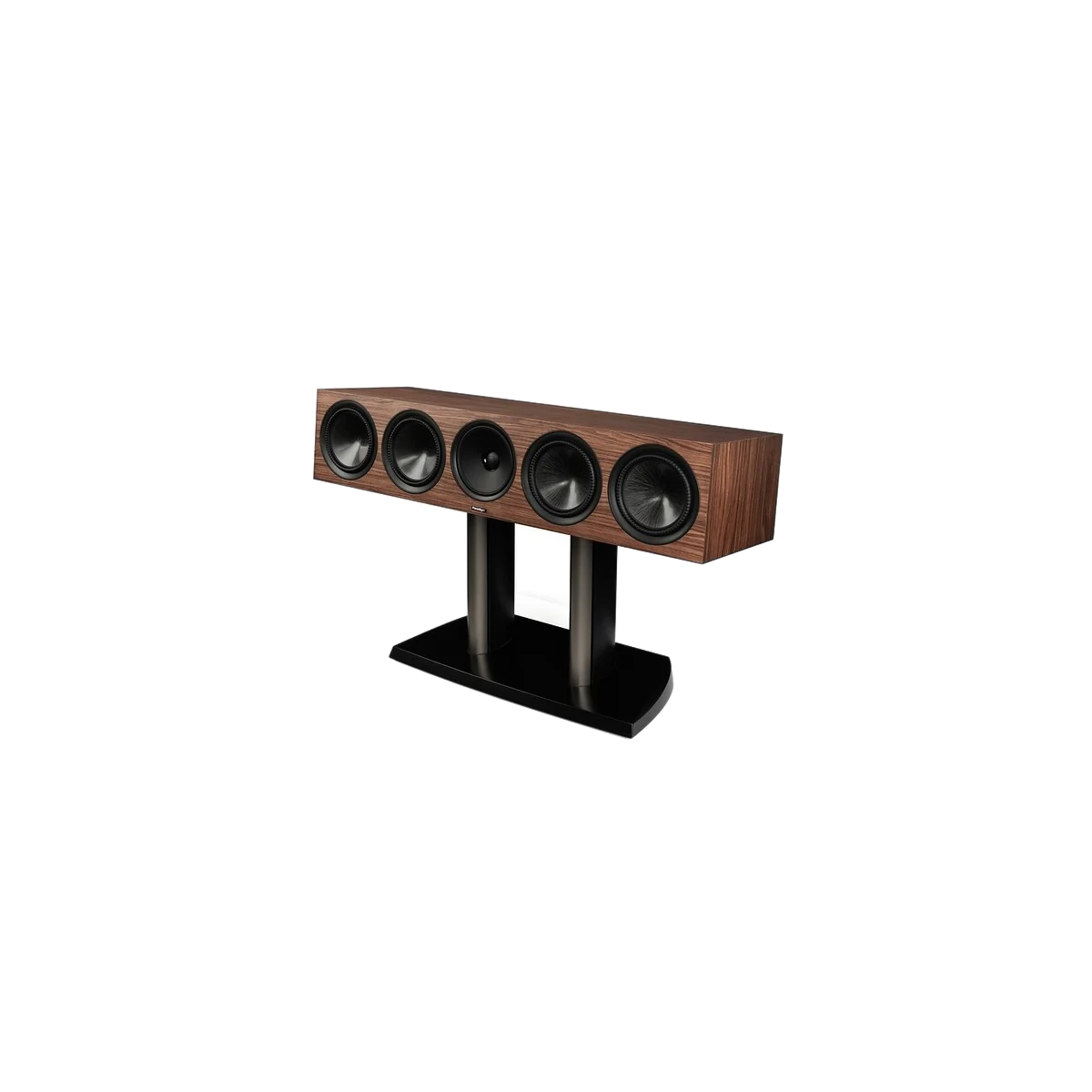

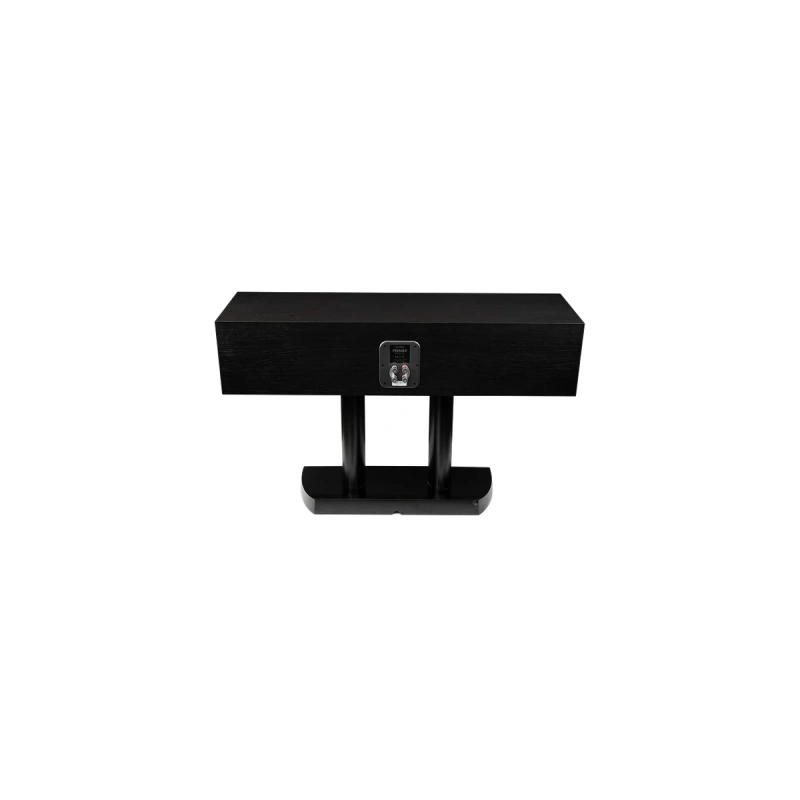

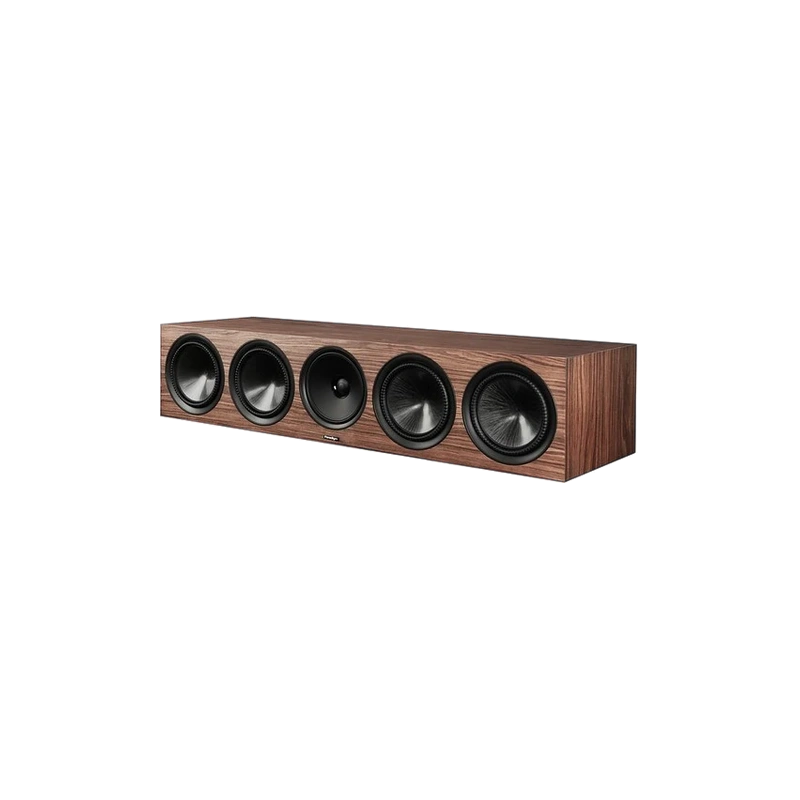

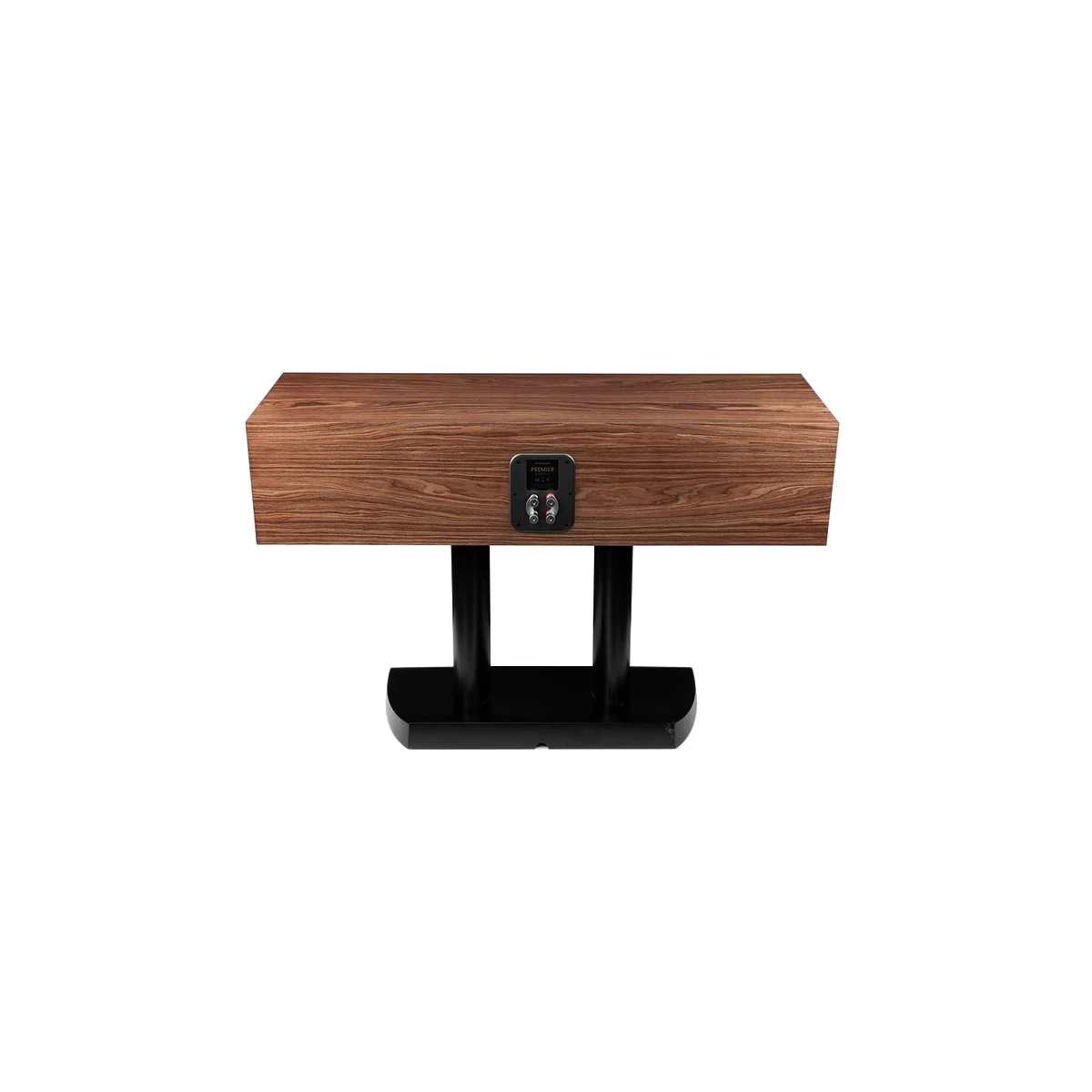

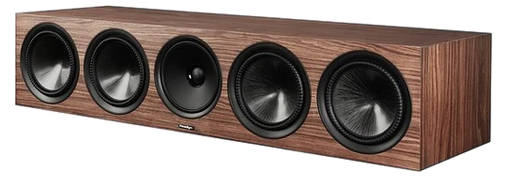

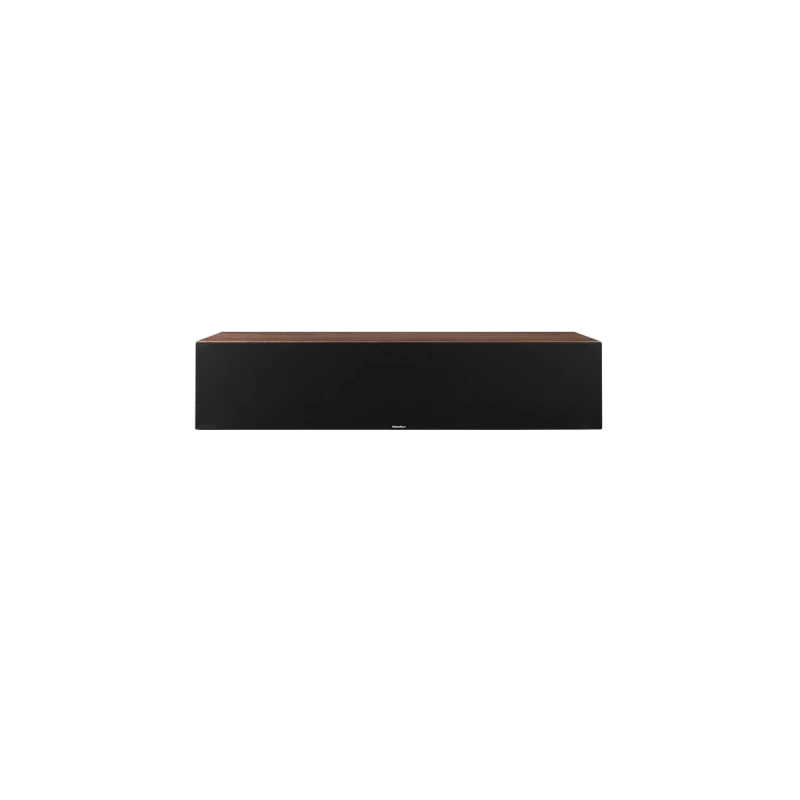

The Paradigm Premier 620C v2 is a center channel speaker from Paradigm's Premier line.
Paradigm describes its design as: 4-driver, 2-passive radiator, 3-way sealed center channel speaker with AL-MAC, AL-MAG, Carbon-X, OSW™, and PPA™.
Paradigm specifies an on-axis frequency response of ±3dB from 49Hz - 23kHz and low-frequency extension to 33Hz (DIN).

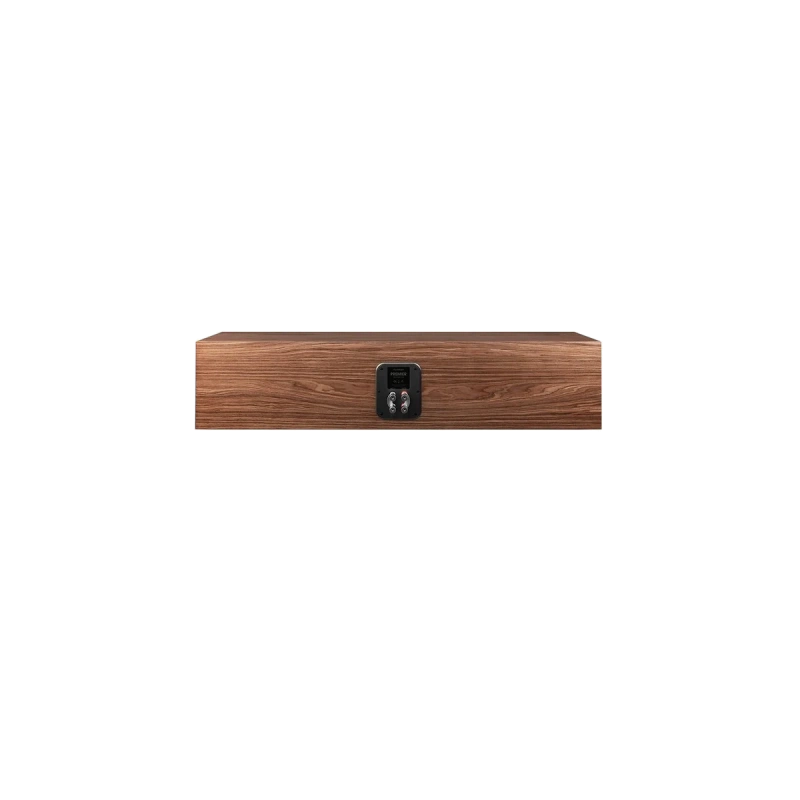

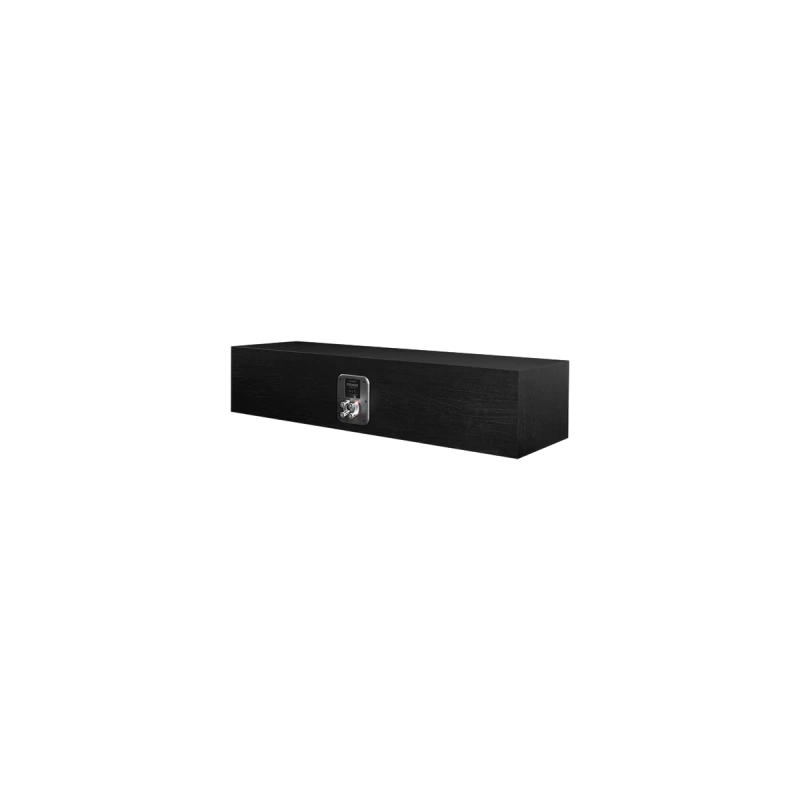

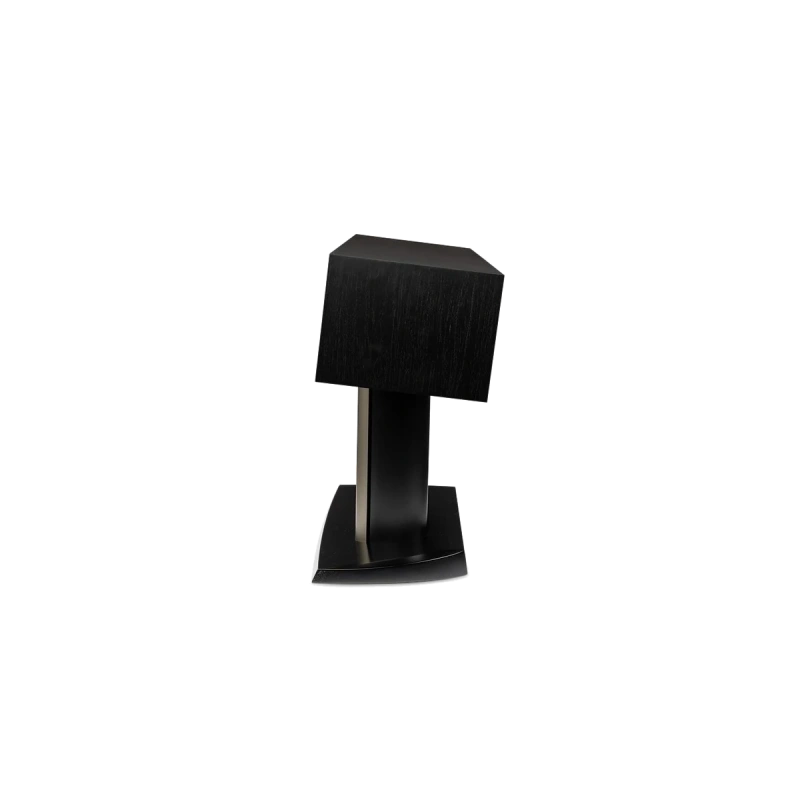

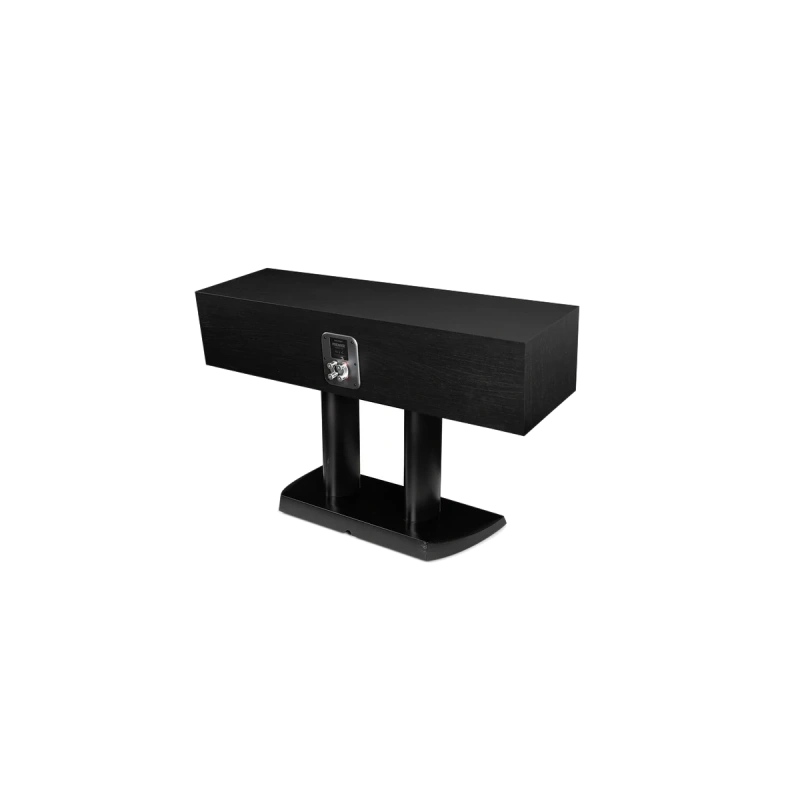

Available finishes: Piano Black, Black Walnut, Walnut.
Call (613) 830-6787 or request a quote.
| Specifications | |
|---|---|
| Sold as | each |

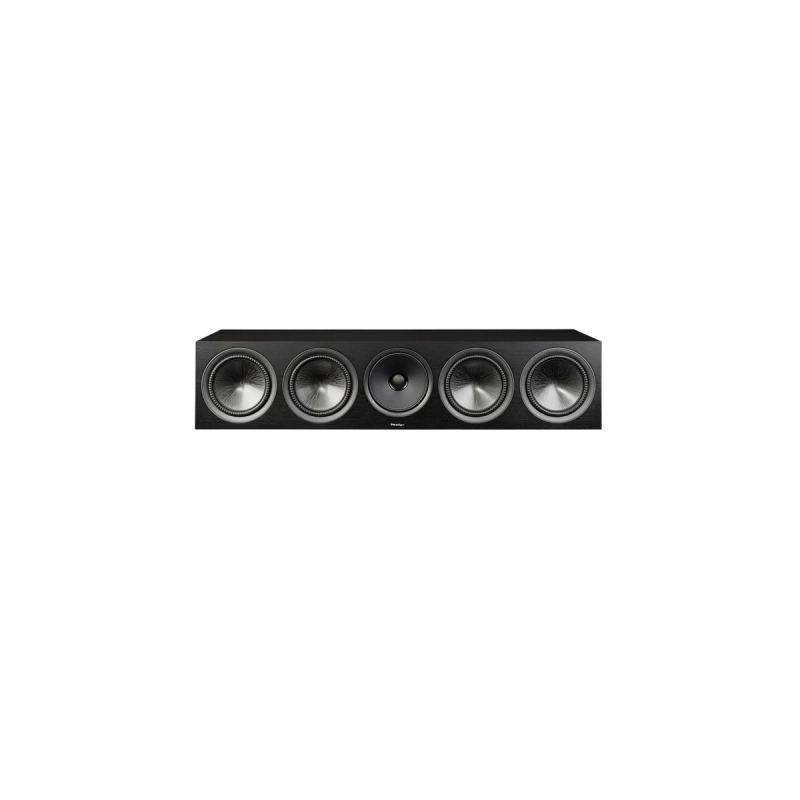

| Design | 4-driver, 2-passive radiator, 3-way sealed center channel speaker with AL-MAC, AL-MAG, Carbon-X, OSW™, and PPA™ |
| Crossover | 2nd Order Electro-acoustic at 1.7kHz (tweeter/midrange) 2nd Order Electro-acoustic at 750Hz (midrange/woofer) |
| Frequency response (on-axis) | ±3dB from 49Hz - 23kHz |
| Frequency response (30° off-axis) | ±3dB from 49Hz - 20kHz |
| High frequency driver | 1” (25mm) AL-MAC™ Ceramic Dome with Oblate Spheroid Waveguide (OSW™) and Perforated Phase-Aligning (PPA™) Tweeter Lens, ferro-fluid damped / cooled |
| Midrange frequency driver | Coaxial 6” (152mm) AL-MAG™ Cone, a 2” high-temp multi-layered voice coil with Apical™ former, Patented Dual-Sync™ Continuous Flux Motor |
| Bass frequency driver | Two 7” (177mm) Ultra-High Excursion CARBON-X™ Unibody Cone, Gen3 Active Ridge Technology (ART™) with Vertical Mounting System, and a 1” hightemp multi-layered voice coil with ventilated Apical™ former |
| Passive radiators | Two 7” (177mm) Ultra-High Excursion CARBON-X™ Unibody Passive Raditators with Gen3 Active Ridge Technology (ART™) and Vertical Mounting System |
| Sensitivity room / anechoic | 93dB / 90dB |
| Low frequency extension | 33Hz (DIN) |
| Suitable amplifier power range | 15 - 180 Watts |
| Maximum input power | 120 Watts |
| Impedance | Compatible with 8 ohms |
| Dimensions (H × W × D) incl. grille | 8.9” x 41” x 13.7” (22.6 cm x 104.1 cm x 34.8 cm) |
| Weight | 48.1 lbs (21.8 kg) each |
| Finishes | Piano Black, Black Walnut, Walnut |
