Paradigm CI Elite E80-A v2
CA$799.99 each
Request a quote
Or call (613) 830-6787
The add to cart button will appear once you select the values above

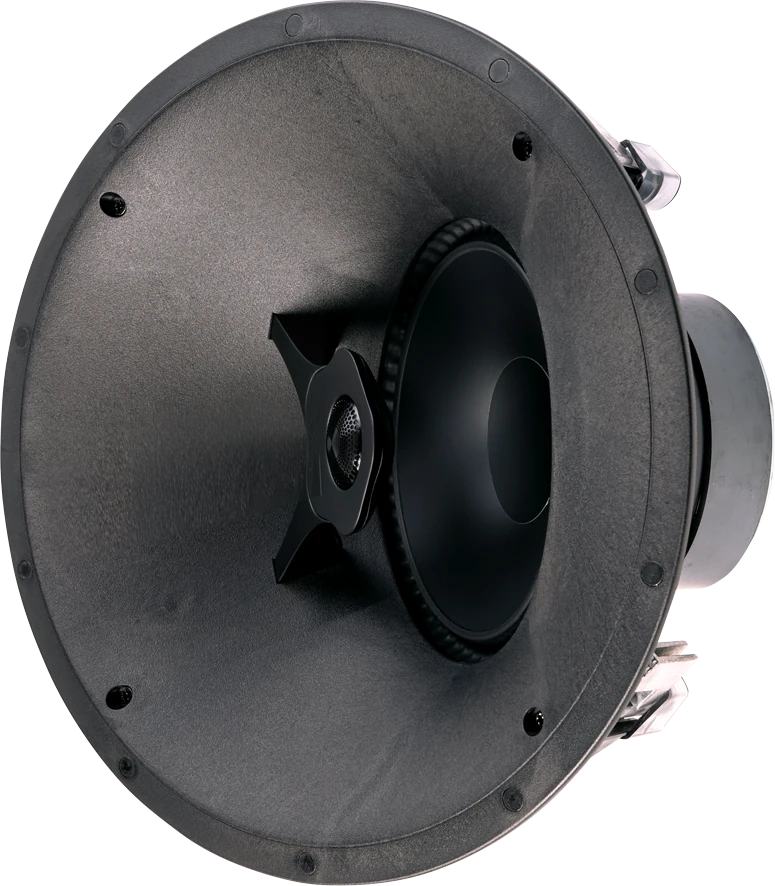

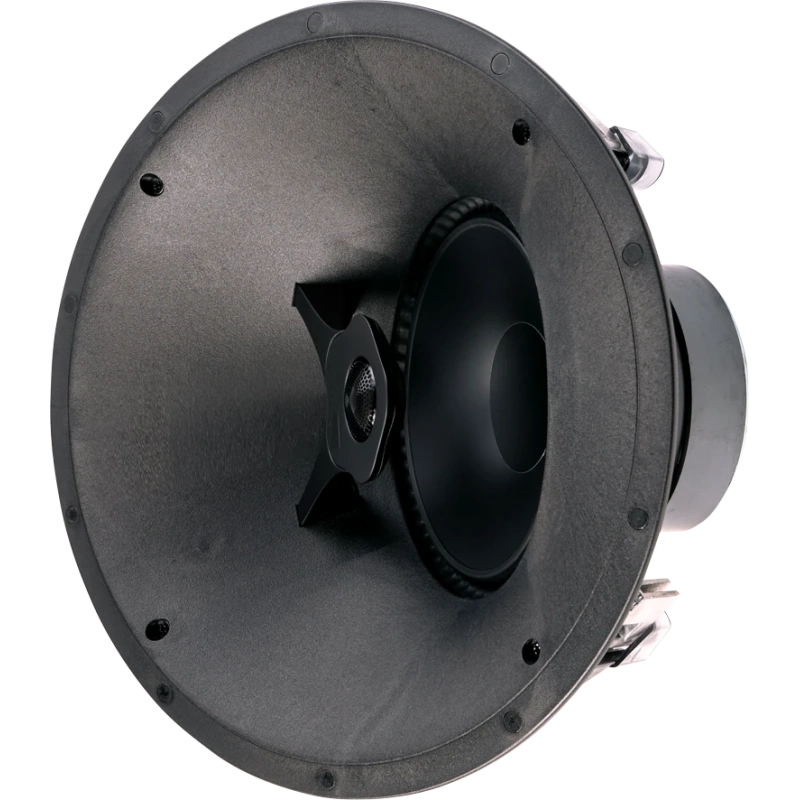

The Paradigm CI Elite E80-A v2 is an in-ceiling speaker from Paradigm's CI Elite line.
Paradigm describes its design as: 2-driver, 2-way in-ceiling, 30°-Angled Guided Soundfield System, Advanced SHOCK-MOUNT™ System, Ultra-Rigid CARBON-X™ Baffle.
Paradigm specifies an on-axis frequency response of ±3 dB from 60 Hz - 22 kHz and low-frequency extension to 39 Hz.
Available finishes: White, paintable grille, black speaker.
Call (613) 830-6787 or request a quote.
| Specifications | |
|---|---|
| Sold as | each |
| Design | 2-driver, 2-way in-ceiling, 30°-Angled Guided Soundfield System, Advanced SHOCK-MOUNT™ System, Ultra-Rigid CARBON-X™ Baffle |
| Crossover | 3rd-order electro- acoustic at 2.0 kHz |
| Frequency response (on-axis) | ±3 dB from 60 Hz - 22 kHz |
| Frequency response (30° off-axis) | ±3 dB from 60 Hz - 18 kHz |
| High frequency driver | 1” (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology |
| Mid/bass frequency driver | 8” (20.3cm) Aluminum Magnesium (AL-MAG™) Coneswith overmolded Active Ridge Technology (ART™) surround, Advanced Shock-Mount™ System, 1.5” high-temp voicecoil, FEA-Optimized Ultra Rigid Cast- Aluminium Baskets |
| Sensitivity room / anechoic | 94 dB / 90 dB |
| Low frequency extension | 39 Hz |
| Suitable amplifier power range | 15-160 W |
| Maximum input power | 100 W |
| Impedance | Compatible with 8 ohms |
| Cut-out dimensions | 11-7/16” (29.1cm) dia. |
| Minimum mounting depth | 5-3/4” (14.6cm) |
| Dimensions (H × W × D) incl. grille | 12-5/8” x 6-3/8” (32.0cm x 15.5cm) |
| Weight | 9.0 lbs (4.1kg) |
| Finishes | White, paintable grille, black speaker |
