Paradigm CI Home H55-R v2
CA$199.99 each
Request a quote
Or call (613) 830-6787
The add to cart button will appear once you select the values above

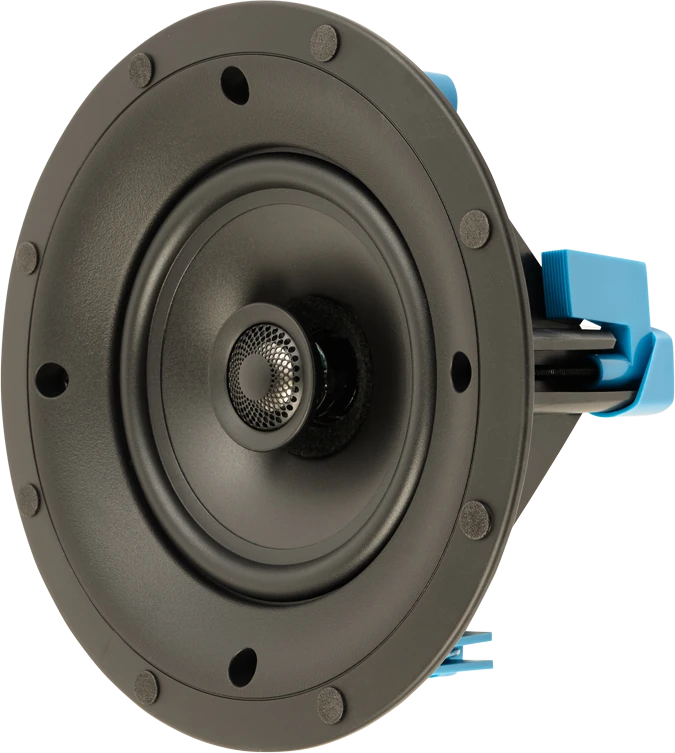

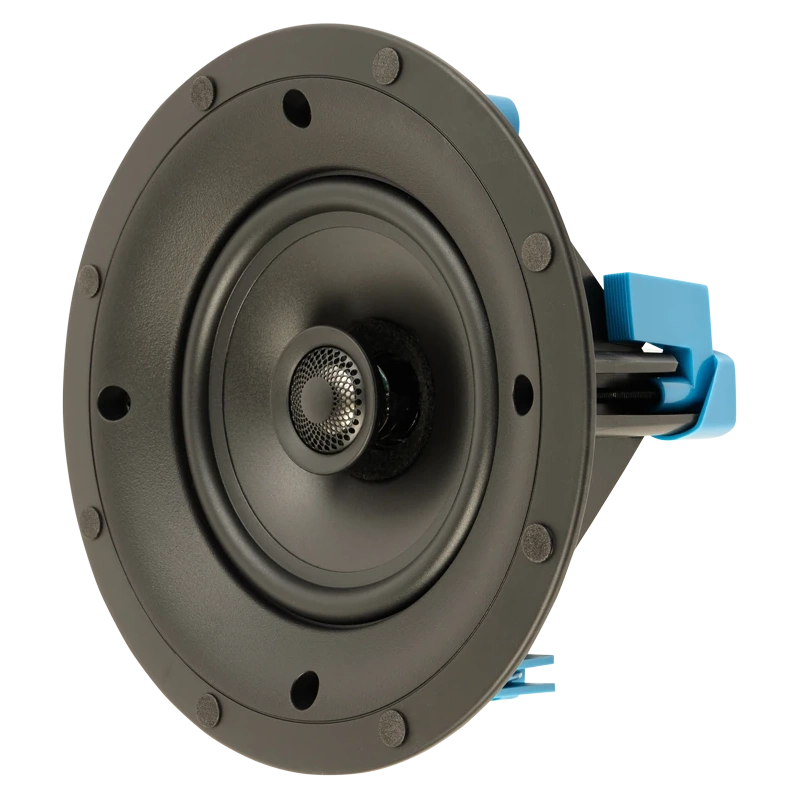

The Paradigm CI Home H55-R v2 is an in-ceiling speaker from Paradigm's CI Home line.
Paradigm describes its design as: 2-driver, 2-way in-ceiling, ABS chassis & mounting clamps.
Paradigm specifies an on-axis frequency response of ±2 dB from 75 Hz - 20 kHz and low-frequency extension to 60 Hz.
Available finishes: White, paintable grille, black speaker.
Call (613) 830-6787 or request a quote.
| Specifications | |
|---|---|
| Sold as | each |
| Design | 2-driver, 2-way in-ceiling, ABS chassis & mounting clamps |
| Crossover | 2nd-order electro- acoustic at 3.0 kHz |
| Frequency response (on-axis) | ±2 dB from 75 Hz - 20 kHz |
| Frequency response (30° off-axis) | ±2 dB from 75 Hz - 18 kHz |
| High frequency driver | 3/4” (1.9cm) Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens |
| Mid/bass frequency driver | 5.5” (13.9cm) Mineral-filled Polypropylene Cone |
| Sensitivity room / anechoic | 88 dB / 84 dB |
| Low frequency extension | 60 Hz |
| Suitable amplifier power range | 15-70 W |
| Maximum input power | 40 W |
| Impedance | Compatible with 8 ohms |
| Accessories (not included) | PB-7RN |
| Cut-out dimensions | 6-3/4” (17.2cm) dia. |
| Minimum mounting depth | 2-3/4” (7cm) |
| Dimensions (H × W × D) incl. grille | 7-3/4” (diameter) x 3-3/8” (depth) (19.7cm x 8.7cm) |
| Weight | 2.5 lbs (1.2 kg) |
| Finishes | White, paintable grille, black speaker |
