Paradigm CI Elite E5 LCR v2
CA$3,499.99 each
Request a quote
Or call (613) 830-6787
The add to cart button will appear once you select the values above

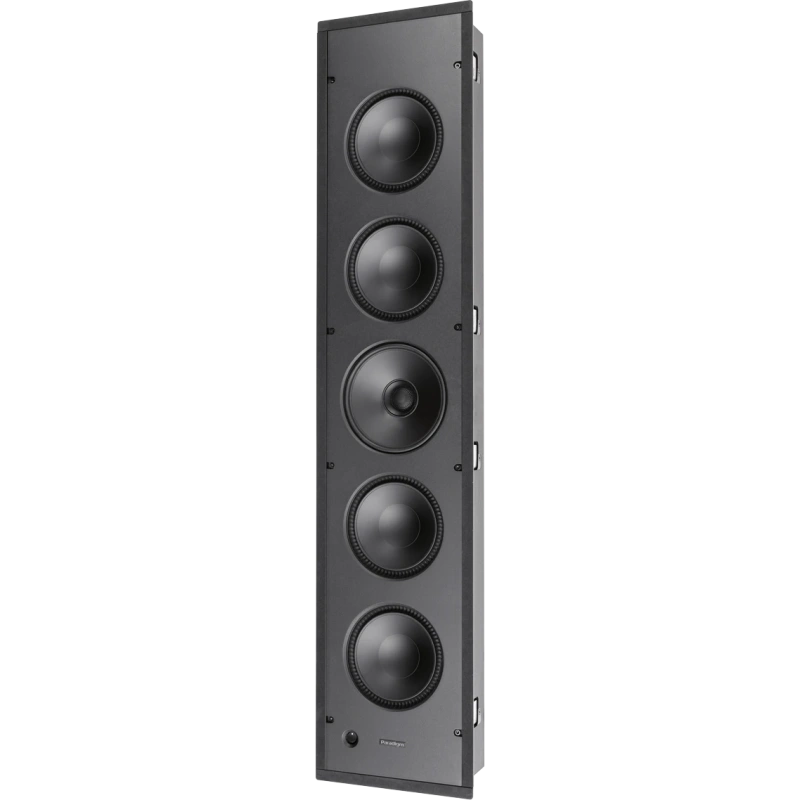

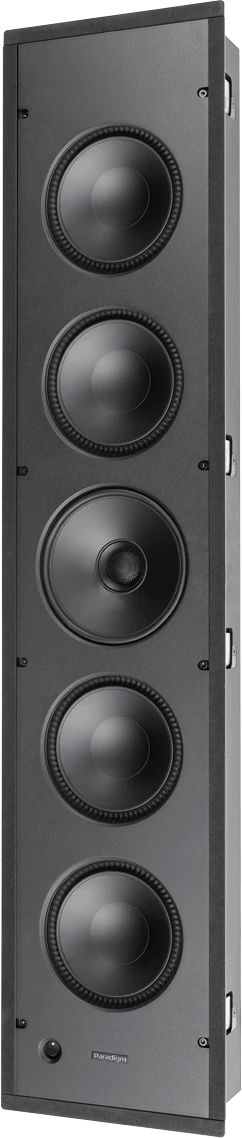

The Paradigm CI Elite E5 LCR v2 is an in-wall speaker from Paradigm's CI Elite line.
Paradigm describes its design as: 4-driver, dual passive radiators, 3-way, shallow enclosure in-wall design, Advanced SHOCK-MOUNT™ System, Machined Aluminum Baffle.
Paradigm specifies an on-axis frequency response of ±3 dB from 82 Hz - 22 kHz and low-frequency extension to 56 Hz.
Available finishes: White, paintable grille, black speaker.
Call (613) 830-6787 or request a quote.
| Specifications | |
|---|---|
| Sold as | each |
| Design | 4-driver, dual passive radiators, 3-way, shallow enclosure in-wall design, Advanced SHOCK-MOUNT™ System, Machined Aluminum Baffle |
| Crossover | 3rd-order electro-acoustic at 3 kHz 2nd-order electro-acoustic @ 450 Hz |
| Frequency response (on-axis) | ±3 dB from 82 Hz - 22 kHz |
| Frequency response (30° off-axis) | ±3 dB from 82 Hz - 19 kHz |
| High frequency driver | Coaxial 1” (2.5cm) Aluminum Magnesium Ceramic AL-MAC™ Ceramic Dome with Oblate Spheroid Waveguide (OSW™) and Perforated Phase-Aligning (PPA™) Tweeter Lens, Patented Dual-Sync™ Continuous Flux Motor |
| Midrange frequency driver | Coaxial 6” (15.2cm) AL-MAG™ Cone with SHOCK-MOUNT™ Isolation Mounting System, a 2” high-temp multi-layered voice coil with Apical™ former, Patented Dual-Sync™ Continuous Flux Motor |
| Bass frequency driver | Two 6.5” (16.5cm) Aluminum Magnesium (AL-MAG™) Cones with overmolded Active Ridge Technology (ART™) surround, Advanced Shock-Mount™ System, 1.5” high-temp voicecoil, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets |
| Passive radiators | Two 6.5” (16.5cm) Aluminum Magnesium (AL-MAG™) Cones with overmolded Active Ridge Technology (ART™) surround, Advanced Shock-Mount™ System, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets |
| Sensitivity room / anechoic | 94 dB / 91 dB |
| Low frequency extension | 56 Hz |
| Suitable amplifier power range | 15-220 W |
| Maximum input power | 150 W |
| Impedance | Compatible with 8 ohms |
| Cut-out dimensions | 42” x 8-1/2” (106.6cm x 21.5cm) |
| Minimum mounting depth | 3-7/8” (9.8cm) |
| Dimensions (H × W × D) incl. grille | 43” x 9-1/2” x 4-1/8” (109.2cm x 19.5cm x 10.5cm) |
| Weight | 34.0 lbs (15.4 kg) |
| Finishes | White, paintable grille, black speaker |
