Paradigm CI Elite E80-IW v2
CA$849.99 each
Request a quote
Or call (613) 830-6787
The add to cart button will appear once you select the values above

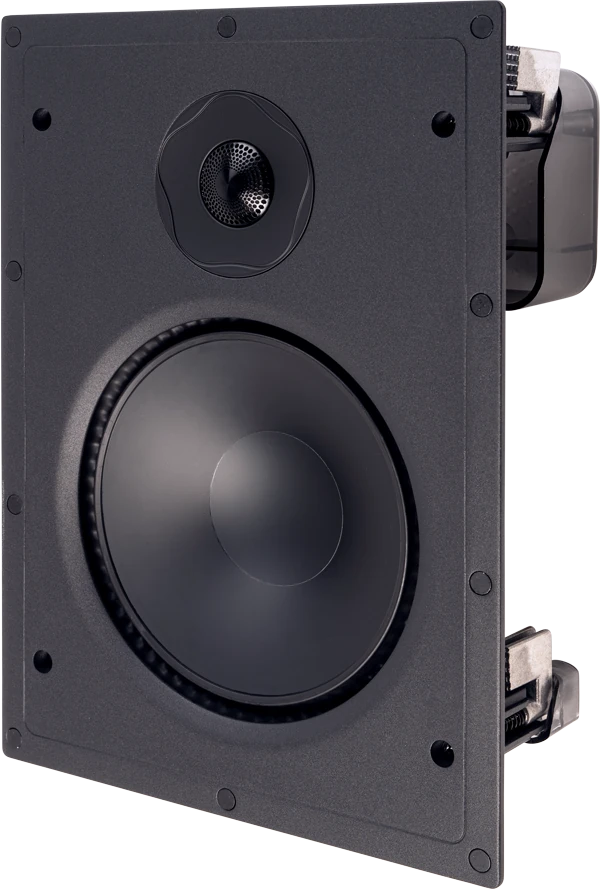

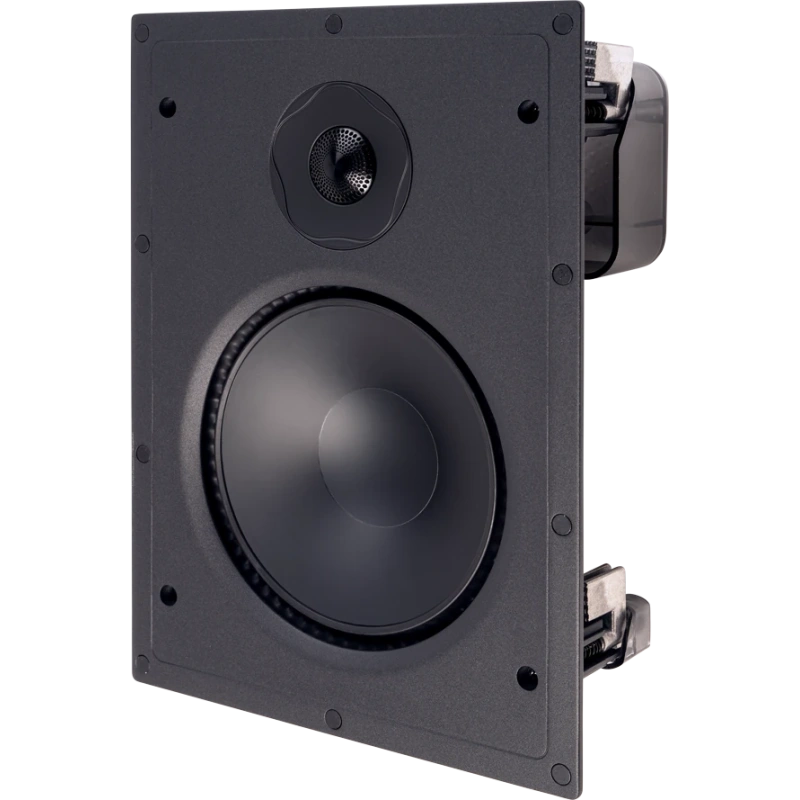

The Paradigm CI Elite E80-IW v2 is an in-wall speaker from Paradigm's CI Elite line.
Paradigm describes its design as: 2-driver, 2-way in-wall, Advanced SHOCK-MOUNT™ System, Die-Cast Aluminum Baffle.
Paradigm specifies an on-axis frequency response of ±3 dB from 57 Hz - 22 kHz and low-frequency extension to 33 Hz.
Available finishes: White, paintable grille, black speaker.
Call (613) 830-6787 or request a quote.
| Specifications | |
|---|---|
| Sold as | each |
| Design | 2-driver, 2-way in-wall, Advanced SHOCK-MOUNT™ System, Die-Cast Aluminum Baffle |
| Crossover | 3rd-order electro- acoustic at 2.0 kHz |
| Frequency response (on-axis) | ±3 dB from 57 Hz - 22 kHz |
| Frequency response (30° off-axis) | ±3 dB from 57 Hz - 18 kHz |
| High frequency driver | 1” (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology |
| Mid/bass frequency driver | 8” (20.3cm) Aluminum Magnesium (AL-MAG™) Cones with overmolded Active Ridge Technology (ART™) surround, Advanced Shock-Mount™ System, 1.5” high-temp voicecoil, FEA-Optimized Ultra Rigid Cast- Aluminium Baskets |
| Sensitivity room / anechoic | 92 dB / 88 dB |
| Low frequency extension | 33 Hz |
| Suitable amplifier power range | 15-180 W |
| Maximum input power | 120 W |
| Impedance | Compatible with 8 ohms |
| Cut-out dimensions | 11-9/16” x 8-1/16” (29.3cm x 20.5cm) |
| Minimum mounting depth | 3-3/8” (8.6cm) |
| Dimensions (H × W × D) incl. grille | 12-5/8” x 9-1/4” x 4” (32.1cm x 23.4cm x 10.2cm) |
| Weight | 8.6 lbs (3.9 kg) |
| Finishes | White, paintable grille, black speaker |
