Paradigm CI Home H55-IW v2
CA$199.99 each
Request a quote
Or call (613) 830-6787
The add to cart button will appear once you select the values above

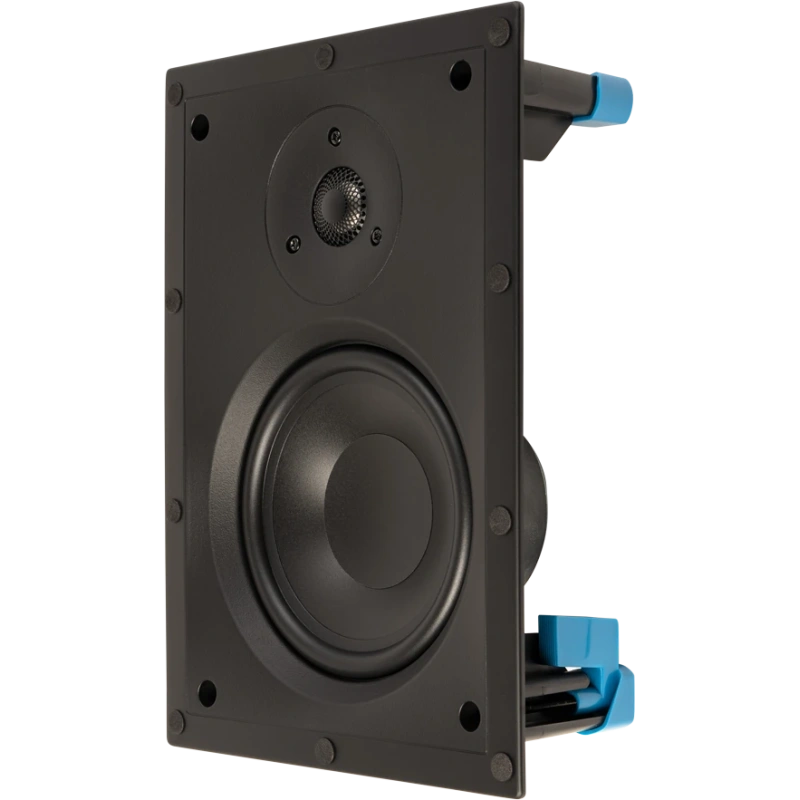

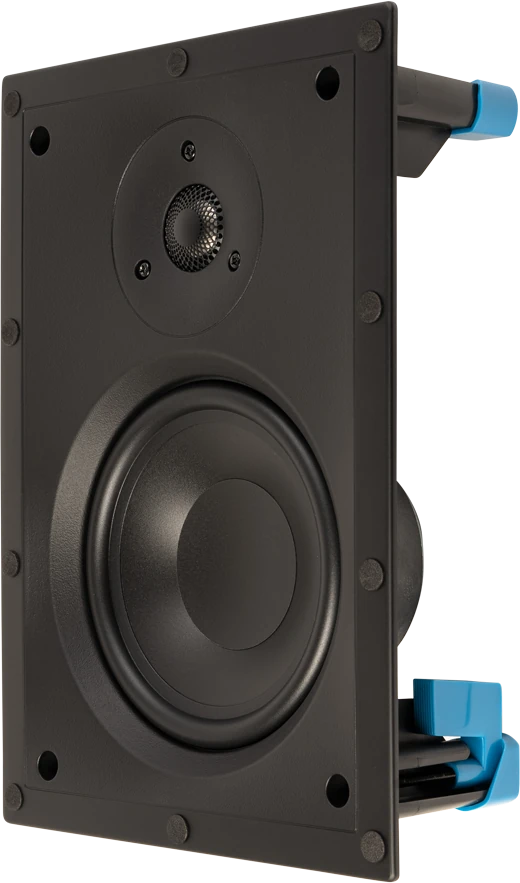

The Paradigm CI Home H55-IW v2 is an in-wall speaker from Paradigm's CI Home line.
Paradigm describes its design as: 2-driver, 2-way in-wall,ABS chassis & mounting clamps.
Paradigm specifies an on-axis frequency response of ±2 dB from 75 Hz - 20 kHz and low-frequency extension to 60 Hz.
Available finishes: White, paintable grille, black speaker.
Call (613) 830-6787 or request a quote.
| Specifications | |
|---|---|
| Sold as | each |
| Design | 2-driver, 2-way in-wall,ABS chassis & mounting clamps |
| Crossover | 2nd-order electro- acoustic at 2.5 kHz |
| Frequency response (on-axis) | ±2 dB from 75 Hz - 20 kHz |
| Frequency response (30° off-axis) | ±2 dB from 75 Hz - 18 kHz |
| High frequency driver | 3/4” (1.9cm) Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens |
| Mid/bass frequency driver | 5.5” (13.9cm) Mineral-filled Polypropylene Cone |
| Sensitivity room / anechoic | 88 dB / 84 dB |
| Low frequency extension | 60 Hz |
| Suitable amplifier power range | 15-80 W |
| Maximum input power | 50 W |
| Impedance | Compatible with 8 ohms |
| Accessories (not included) | PB-6X9N |
| Cut-out dimensions | 9-3/16” x 6-1/8” (23.3cm x 15.6cm) |
| Minimum mounting depth | 2-3/4” (7cm) |
| Dimensions (H × W × D) incl. grille | 10-1/4” x 7-1/8” x 3-3/8” (25.9cm x 18.2cm x 8.7cm) |
| Weight | 2.5 lbs (1.2 kg) |
| Finishes | White, paintable grille, black speaker |
