Paradigm CI Pro P5 LCR v2
CA$2,599.99 each
Request a quote
Or call (613) 830-6787
The add to cart button will appear once you select the values above

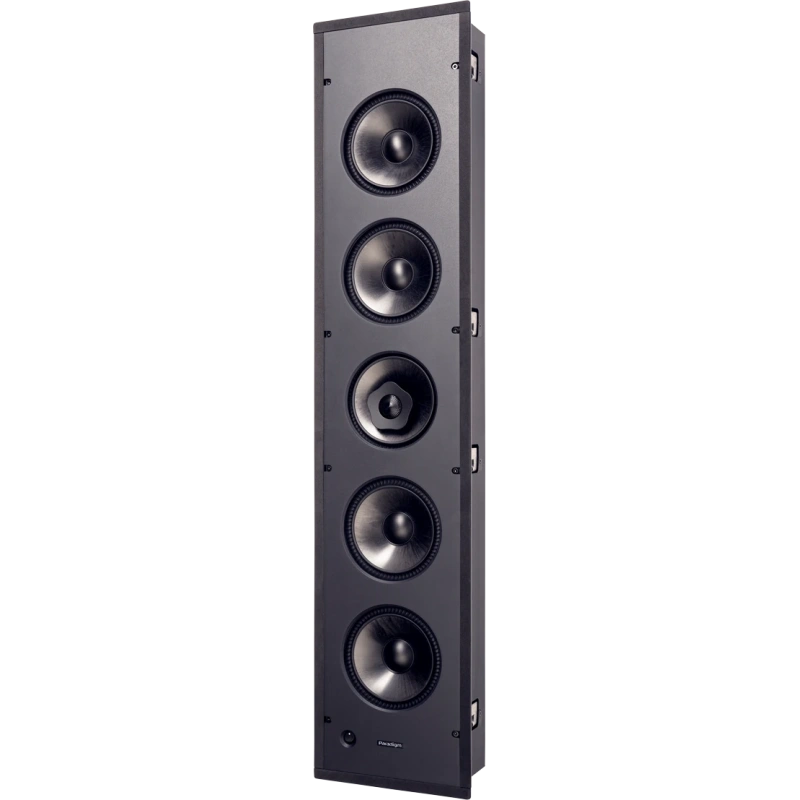

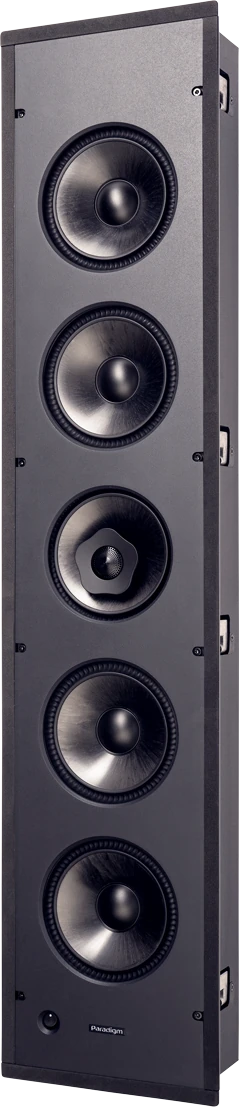

The Paradigm CI Pro P5 LCR v2 is an in-wall speaker from Paradigm's CI Pro line.
Paradigm describes its design as: 4-driver, dual passive radiators, 3-way, shallow enclosure in-wall design, Advanced SHOCK-MOUNT™ System.
Paradigm specifies an on-axis frequency response of ±3 dB from 84 Hz - 22 kHz and low-frequency extension to 65 Hz.
Available finishes: White, paintable grille, black speaker.
Call (613) 830-6787 or request a quote.
| Specifications | |
|---|---|
| Sold as | each |
| Design | 4-driver, dual passive radiators, 3-way, shallow enclosure in-wall design, Advanced SHOCK-MOUNT™ System |
| Crossover | 3rd-order electro-acoustic at 2.8 kHz, 2nd-order electro-acoustic @ 500 Hz |
| Frequency response (on-axis) | ±3 dB from 84 Hz - 22 kHz |
| Frequency response (30° off-axis) | ±3 dB from 84 Hz - 19 kHz |
| High frequency driver | 1” (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology |
| Midrange frequency driver | 6.5” (16.5cm) Coaxial AL-MAG™ Cone with SHOCK-MOUNT™ Isolation Mounting System, a 1” high-temp multi-layered voice coil with Apical™ former |
| Bass frequency driver | Two 6.5” (16.5cm) CARBON-X™ Cone with overmolded Active Ridge Technology (ART™) surround, Advanced SHOCK-MOUNT™ System, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets |
| Passive radiators | Two 6.5” (16.5cm) CARBON-X™ Cone with overmolded Active Ridge Technology (ART™) surround, Advanced SHOCK-MOUNT™ System, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets |
| Sensitivity room / anechoic | 94 dB / 91 dB |
| Low frequency extension | 65 Hz |
| Suitable amplifier power range | 15- 200 W |
| Maximum input power | 130 W |
| Impedance | Compatible with 8 ohms |
| Cut-out dimensions | 42” x 8-1/2” (106.6cm x 21.6cm) |
| Minimum mounting depth | 3-7/8” (9.8cm) |
| Weight | 29.0 lbs (13.2 kg) |
| Finishes | White, paintable grille, black speaker |
